Air Cleaner Assembly Replacement

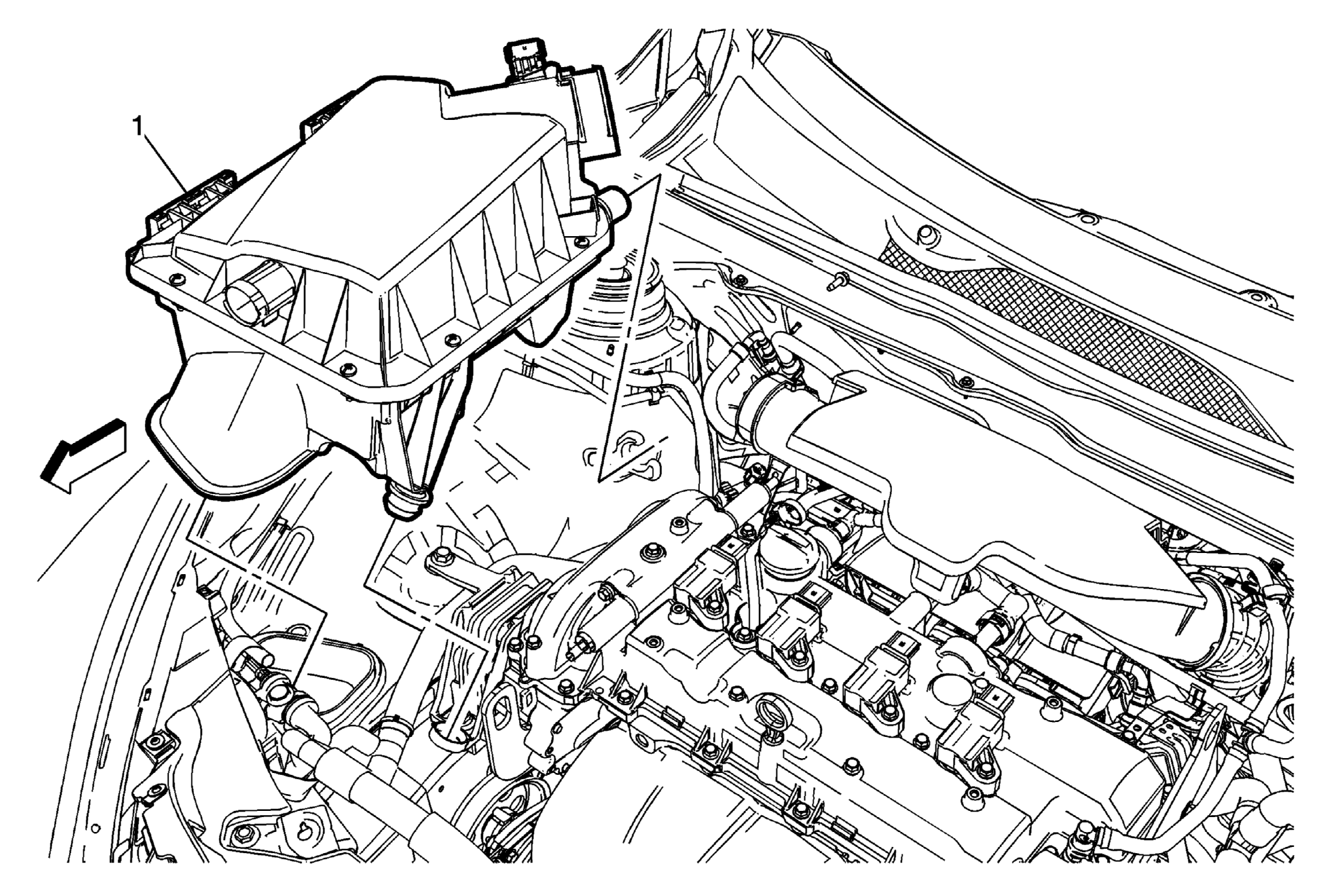

Courtesy of GENERAL MOTORS COMPANY Air Cleaner Assembly Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
- Disconnect the mass airflow sensor electrical connector and disconnect the harness from the 2 retainers.
- Disconnect the secondary air injection pump inlet hose, if equipped. Refer to Secondary Air Injection Pump Inlet Hose Replacement .
|
| 1 |
Air Cleaner Assembly Procedure
- Remove the air cleaner housing from the retainers, while guiding the housing out of the inlet duct.
- Transfer parts as necessary.
|
