Chassis Control Module Replacement

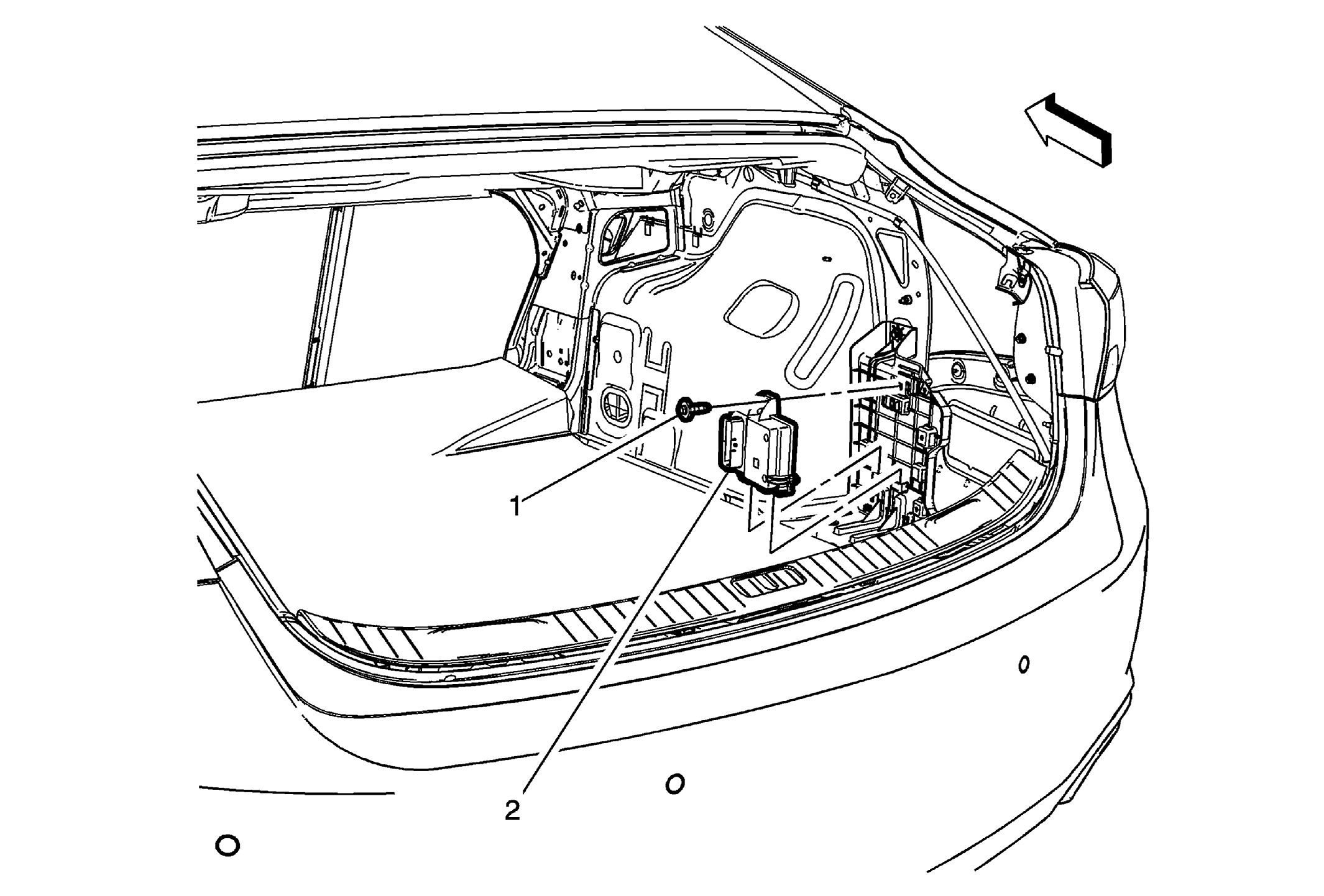

Fig 1: Chassis Control Module
GM2902416Courtesy of GENERAL MOTORS COMPANY
Chassis Control Module Replacement

Callout Component Name
Preliminary Procedure
Reposition the passenger rear side trim panel. Refer to Rear Compartment Side Trim Replacement - Right Side (Without HP6) , Rear Compartment Side Trim Replacement - Right Side (With HP6) .
1 Chassis Control Module Fastener (Qty: 1)
CAUTION:

Refer to Fastener Caution .


Tighten
9 (80 lb in)
2 Chassis Control Module

Procedure

  1. Disconnect the electrical connector.
  2. If replacing, reprogram the module. Refer to Control Module References .
