Fuel Tank Protector Replacement

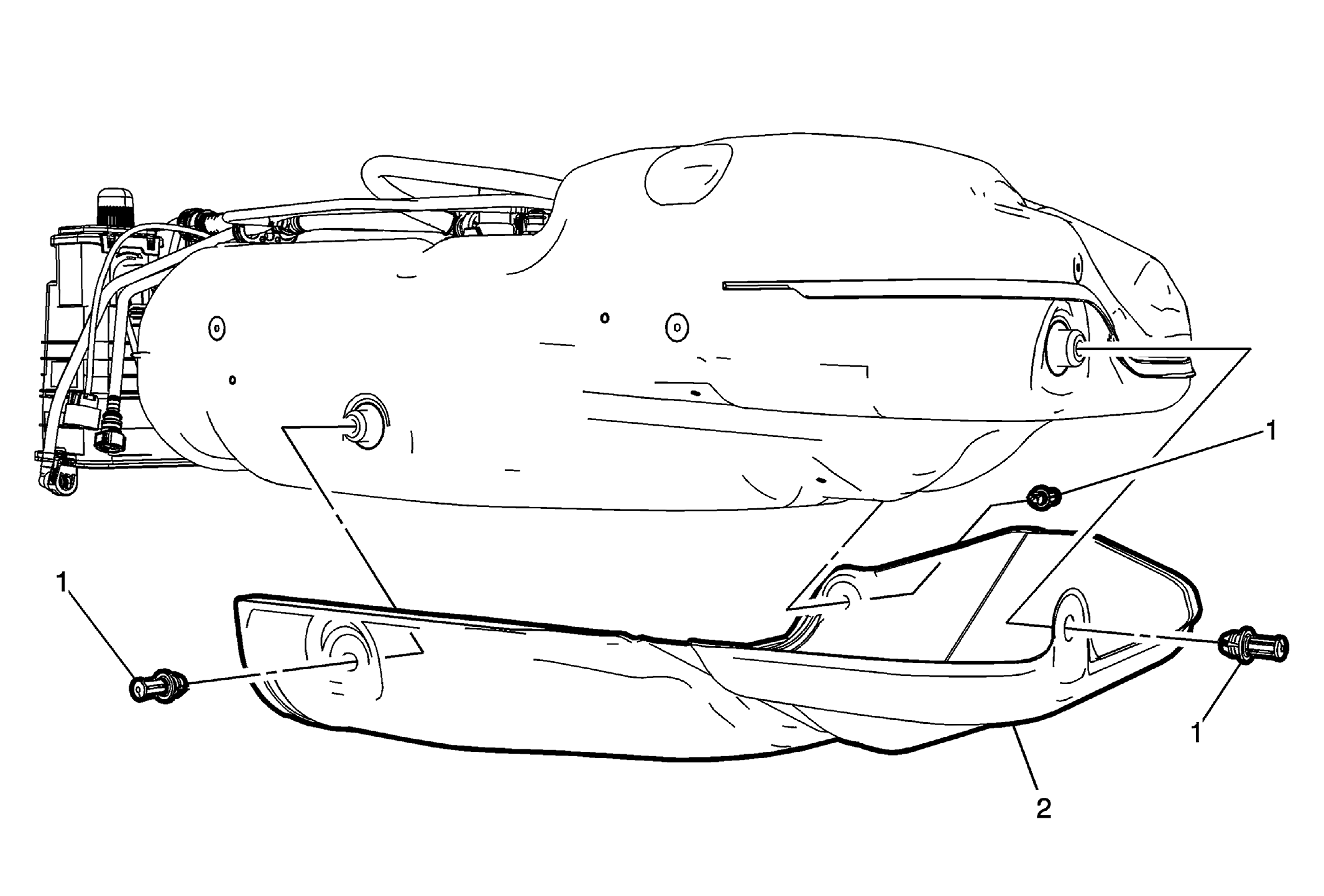

Fig 1: Fuel Tank Protector (FWD)
GM2754752Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Protector Replacement

Callout Component Name
Preliminary Procedure
Remove the left fuel tank strap. Refer to Fuel Tank Replacement .
1 Fuel Tank Protector Retainers (Qty: 3)
2 Fuel Tank Protector
