Oil Pump Flow Control Valve Heat Shield Replacement

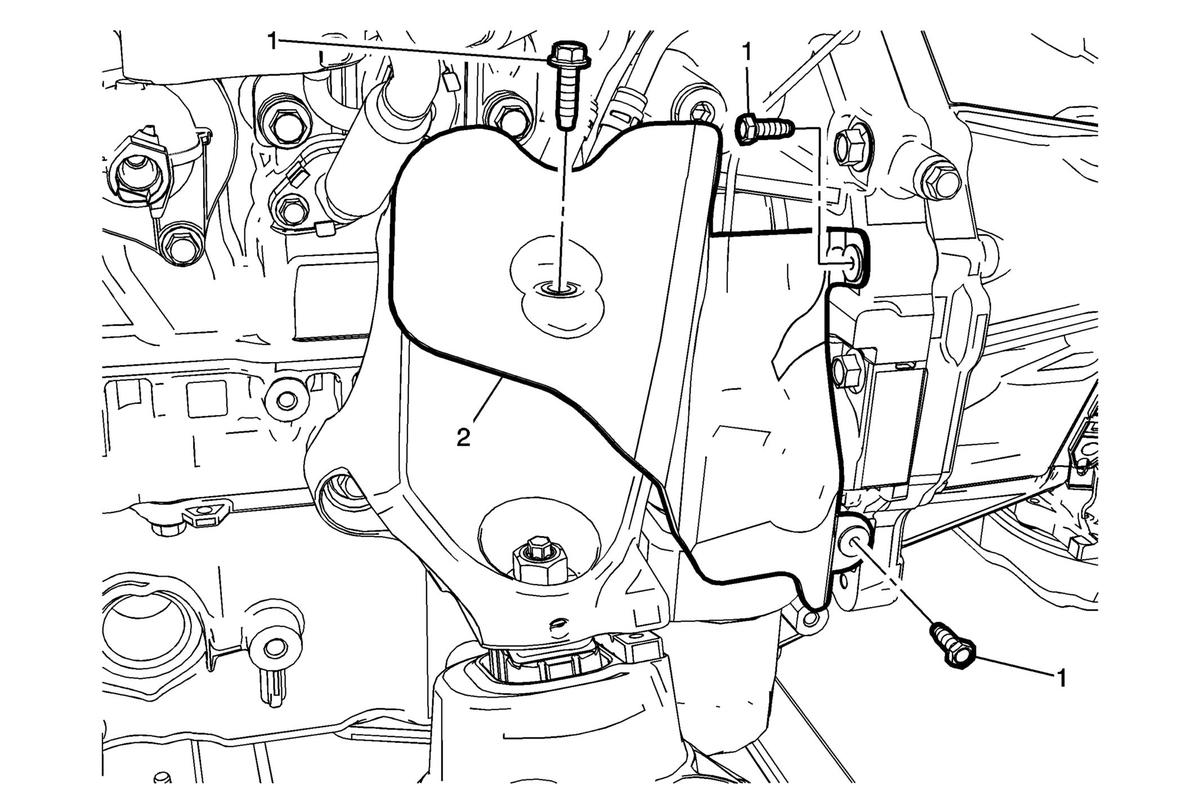

Fig 1: Oil Pump Flow Control Valve Heat Shield
GM3611068Courtesy of GENERAL MOTORS COMPANY
Oil Pump Flow Control Valve Heat Shield Replacement

Callout Component Name
1 Oil Pump Flow Control Valve Heat Shield Fasteners (Qty 3)
CAUTION:

Refer to Fastener Caution .


Tighten
10 (89 lb in)
2 Oil Pump Flow Control Valve Heat Shield
