Left Front of Engine Components (LFX)

Items
1: G13 Generator G13 Generator X1 (LFX)G13 Generator X1 (LKW)G13 Generator X2 (LFX)G13 Generator X2 (LKW)
2: B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LFX) B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LFX)
3: T8B Ignition Coil 2 T8B Ignition Coil 2 (LFX)T8B Ignition Coil 2 (LKW)T8B Ignition Coil 2 (LUK)
4: T8D Ignition Coil 4 T8D Ignition Coil 4 (LFX)T8D Ignition Coil 4 (LKW)T8D Ignition Coil 4 (LUK)
5: T8F Ignition Coil 6 (LFX) T8F Ignition Coil 6 (LFX)
6: Q29B Secondary Air Injection Solenoid Valve - Bank 2 (LFX with NU6) Q29B Secondary Air Injection Solenoid Valve - Bank 2 (LFX with NU6)
7: G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LFX)G18 High Pressure Fuel Pump (LKW)G18 High Pressure Fuel Pump (LUK)
8: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LFX)B34 Engine Coolant Temperature Sensor (LKW)B34 Engine Coolant Temperature Sensor (LUK)
9: M64 Starter Motor M64 Starter Motor X1 (LFX)M64 Starter Motor X1 (LKW)M64 Starter Motor X1 (LUK)M64 Starter Motor X2 (LFX)M64 Starter Motor X2 (LKW)M64 Starter Motor X2 (LUK)
10: B68B Knock Sensor 2 B68B Knock Sensor 2 (LFX)B68B Knock Sensor 2 (LKW)
11: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve
12: B37 Engine Oil Pressure Switch B37 Engine Oil Pressure Switch (LFX)B37 Engine Oil Pressure Switch (LUK)
13: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch

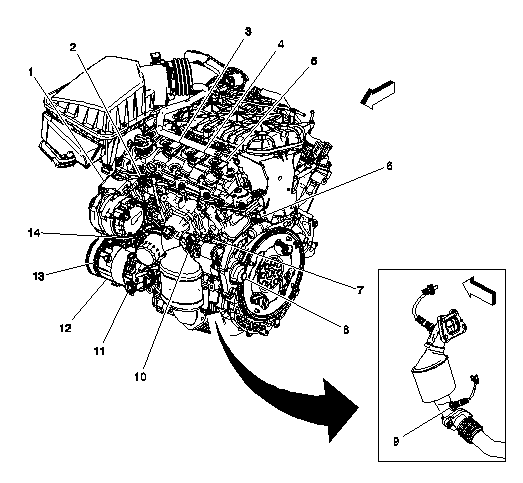

Fig 1: Left Front of Engine Components (LFX)

Courtesy of GENERAL MOTORS COMPANY
