Communication Interface Module Battery Replacement

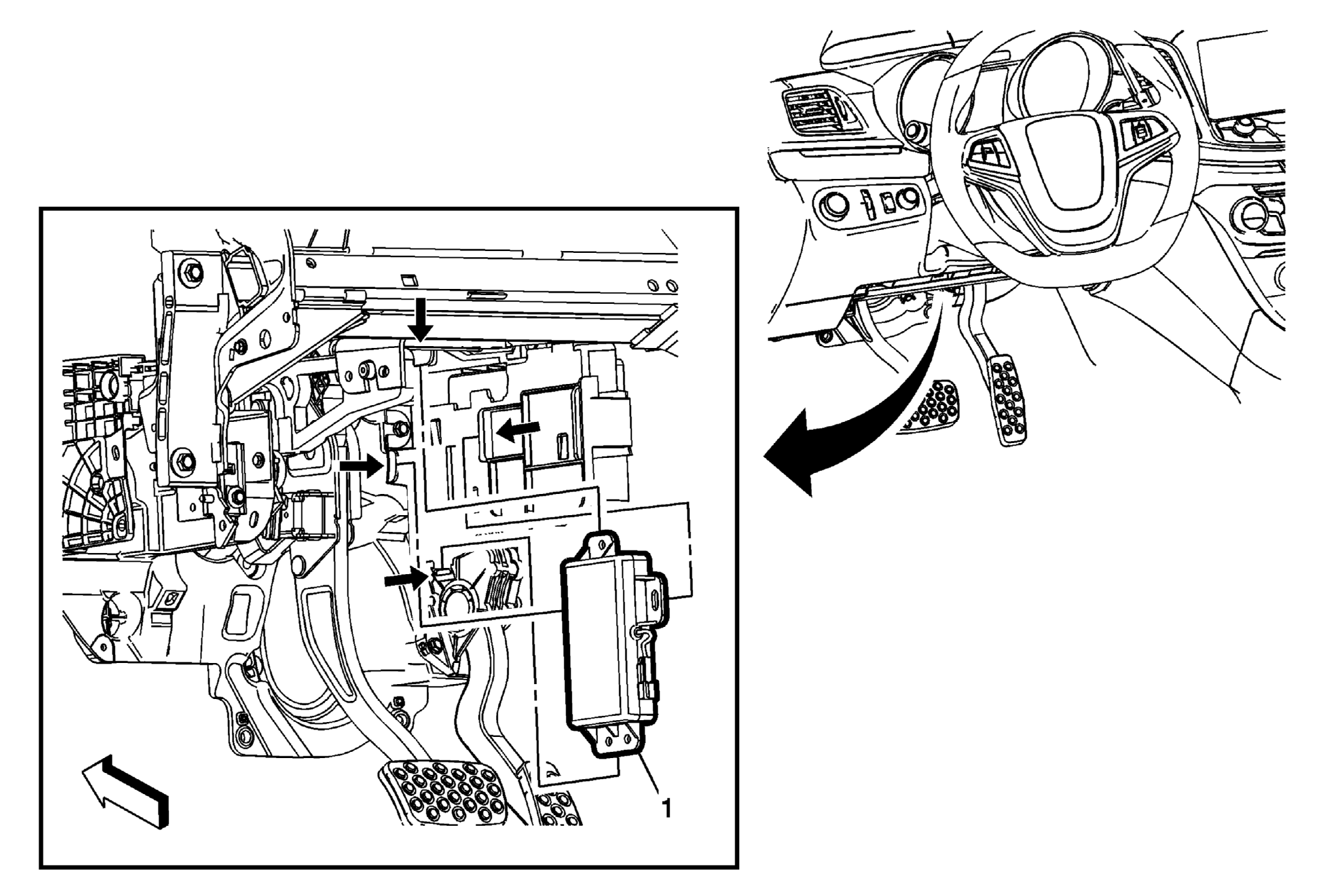

Fig 1: Communication Interface Module Battery

GM3581490

Courtesy of GENERAL MOTORS COMPANY

Communication Interface Module Battery Replacement

Callout

Component Name

Preliminary Procedure

Remove the instrument panel lower airbag - drivers side. Refer to Instrument Panel Lower Airbag Replacement - Driver Side .
Remove the instrument panel lower trim panel insulator - left side. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Left Side .

1

Communication Interface Module Battery

Procedure

Disconnect the electrical connector.
Reprogramming of the module may be necessary after losing battery power.
For programming and set up procedures, refer to Control Module References .
