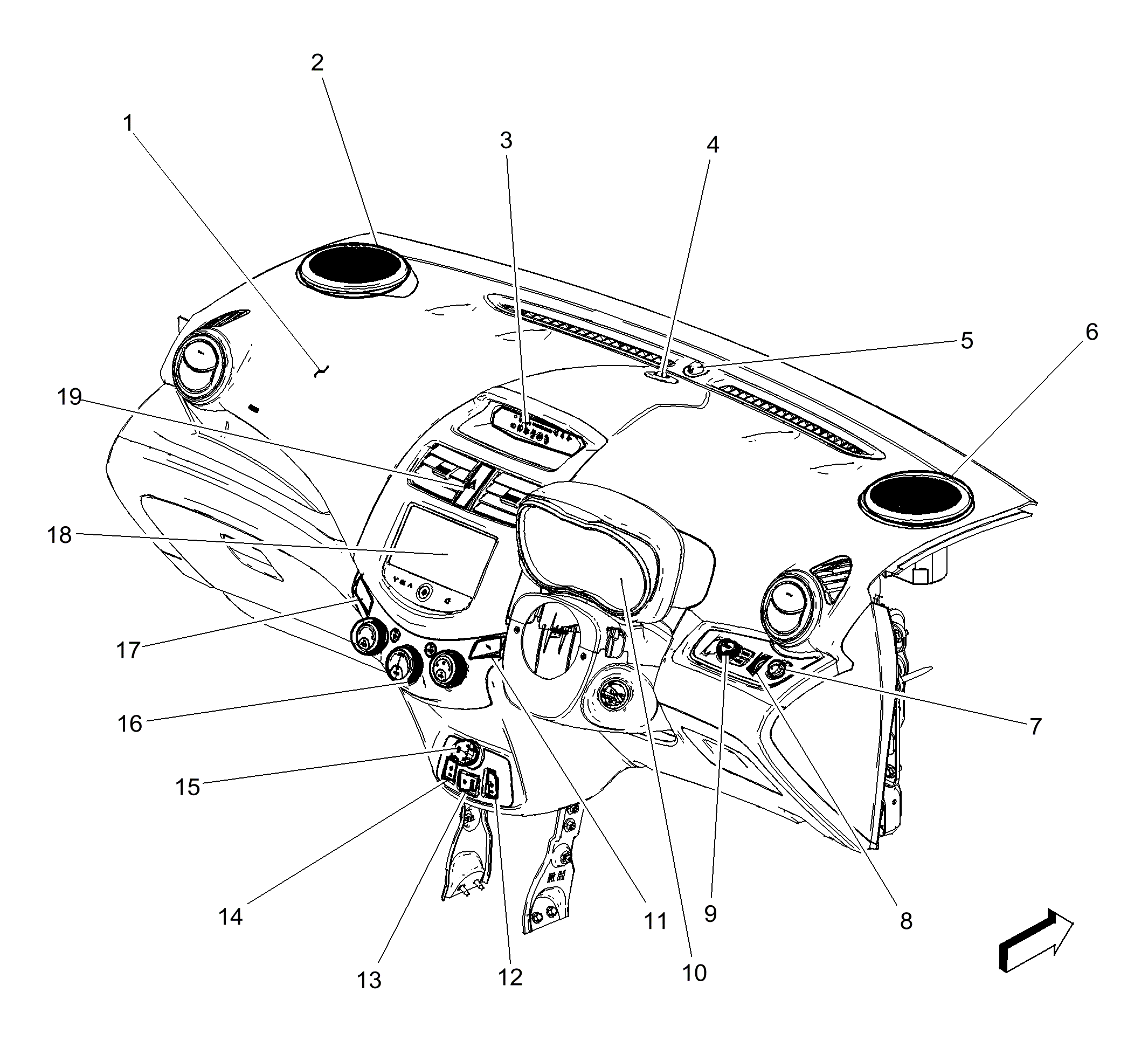

Front of Instrument Panel Components (Right Hand Drive)
Front of Instrument Panel Components (Right Hand Drive)
| Items |
|---|
| 1: F101 Passenger Instrument Panel Air Bag |
| 2: P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel |
| 3: P17 Info Display Module P17 Info Display Module |
| 4: P36 Battery State of Charge Indicator P36 Battery State of Charge Indicator |
| 5: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 6: P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel |
| 7: S52 Outside Rearview Mirror Switch S52 Outside Rearview Mirror Switch |
| 8: S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch |
| 9: S16 Driver Information Center Switch S16 Driver Information Center Switch |
| 10: P16 Instrument Cluster P16 Instrument Cluster |
| 11: S126 Drive Mode Select Switch S126 Drive Mode Select Switch |
| 12: S32P Seat Heating Switch - Passenger S32P Seat Heating Switch - Passenger |
| 13: X83 Auxiliary Audio Input |
| 14: S32D Seat Heating Switch - Driver S32D Seat Heating Switch - Driver |
| 16: A26 HVAC Controls A26 HVAC Controls |
| 17: K84 Keyless Entry Control Module K84 Keyless Entry Control Module X1K84 Keyless Entry Control Module X2 |
| 18: A11 Radio A11 Radio X1A11 Radio X2A11 Radio X3A11 Radio X4 |
| 19: S26 Hazard Warning Switch S26 Hazard Warning Switch |
