Installation Procedure

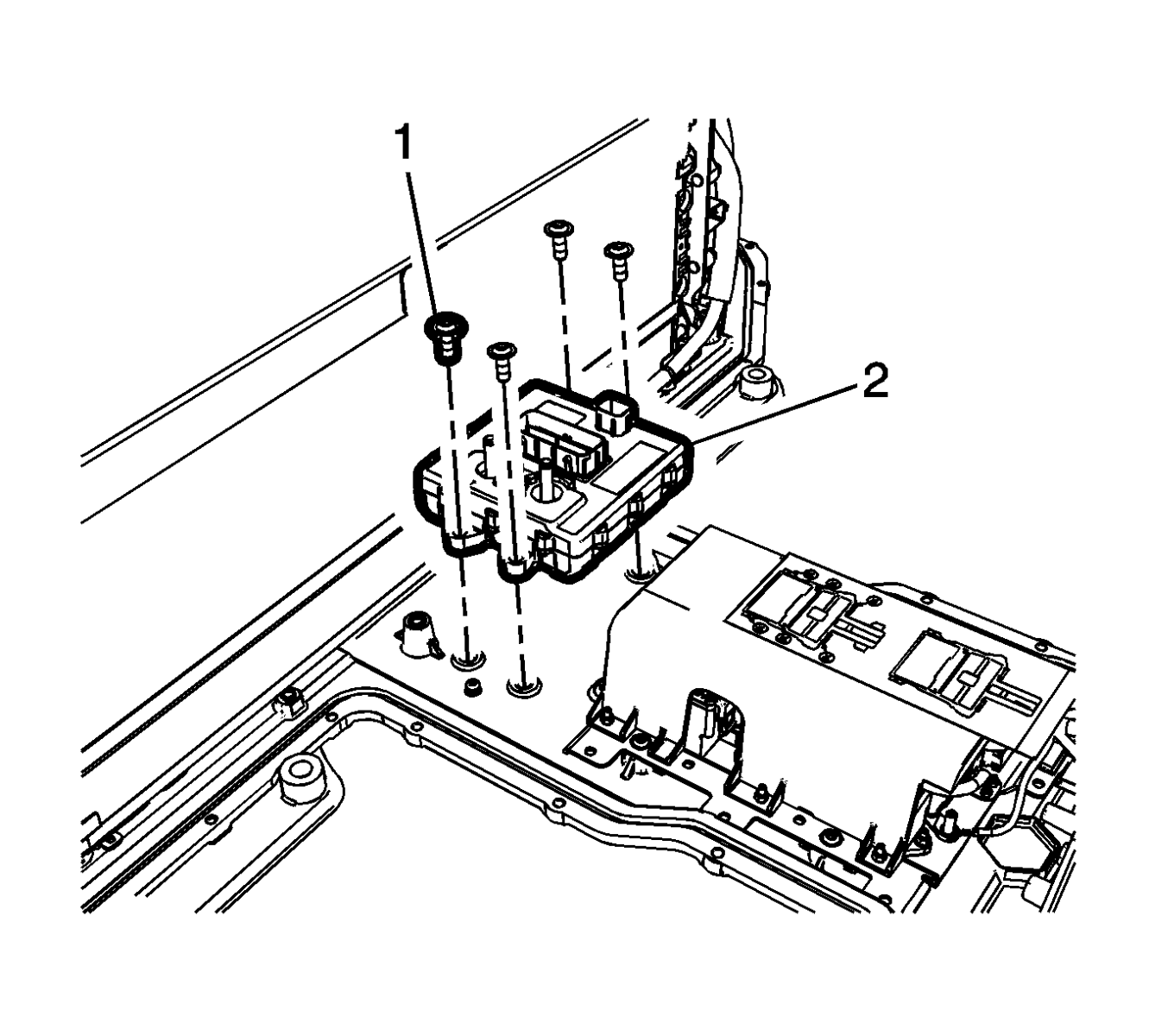

    Fig 1: Current Sense Module Mounting Fasteners
    GM3606393Courtesy of GENERAL MOTORS COMPANY
  1. Install the current sense module (2) into position and tighten the fasteners (1) to 9 N. m (80 lb in).

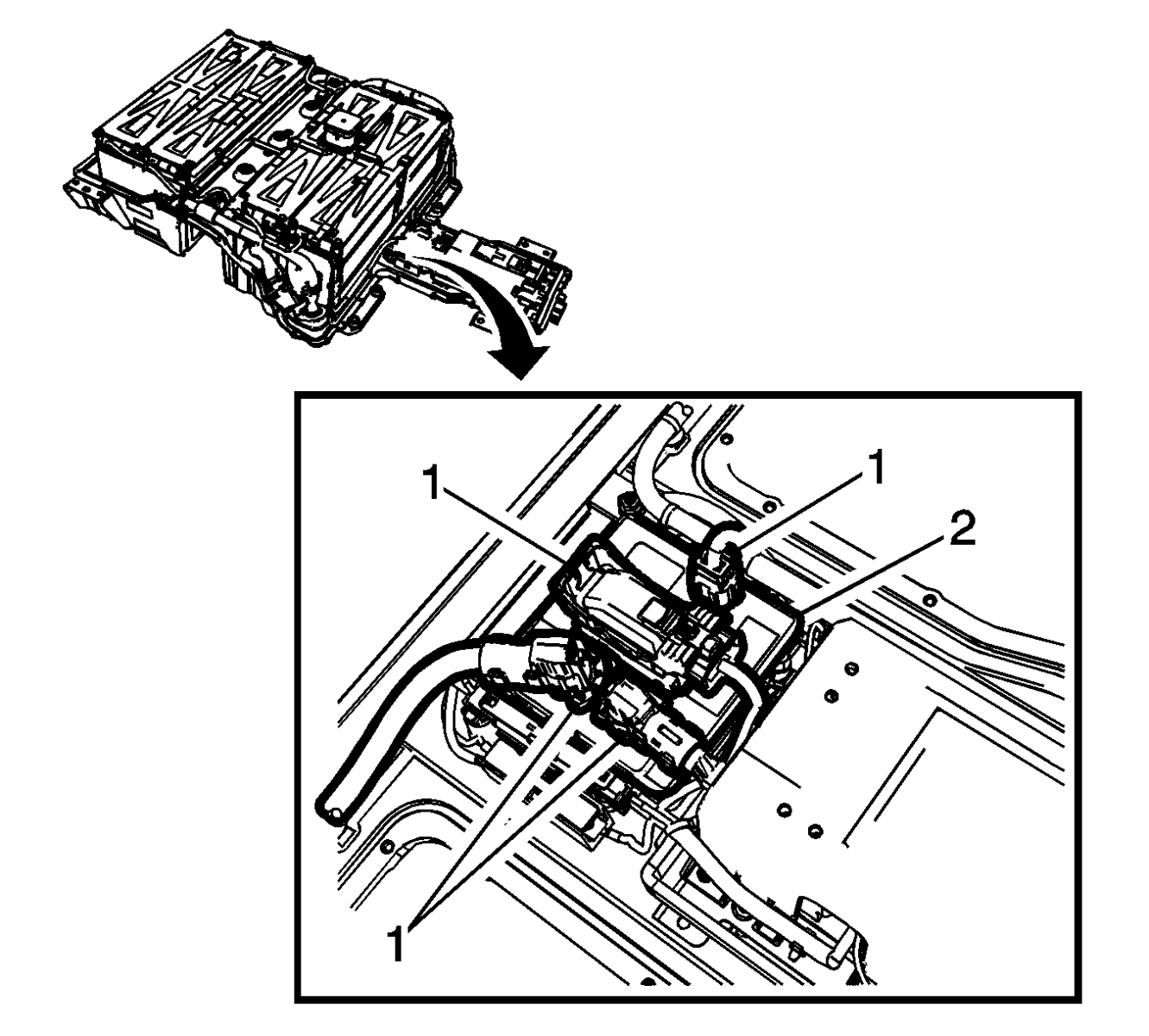

    2. Fig 2: Current Sense Module Connectors
    GM3606384Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Connect the connectors (1) to the current sense module (2).
  3. Install the drive motor battery cover. Refer to Drive Motor Battery Cover Replacement .
  4. Install the drive motor battery. Refer to Drive Motor Battery Replacement and Shipping Preparation .
