Left Front of Passenger Compartment Components (Right Hand Drive)

Left Front of Passenger Compartment Components (Right Hand Drive)

Items
1:  F105L Roof Rail Air Bag - Left (AYF/AW7) F105L Roof Rail Air Bag - Left
2:  K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7
3:  K132 K132 Pedestrian Alert Sound Control Module
4:  K36 Inflatable Restraint Sensing and Diagnostic Module
6:  B63LR Side Impact Sensor - Left Rear (AYF/AW7) B63LR Side Impact Sensor - Left Rear
7:  F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger
8:  F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver
9:  B28P Door Ajar Switch - Passenger B28P Door Ajar Switch - Passenger

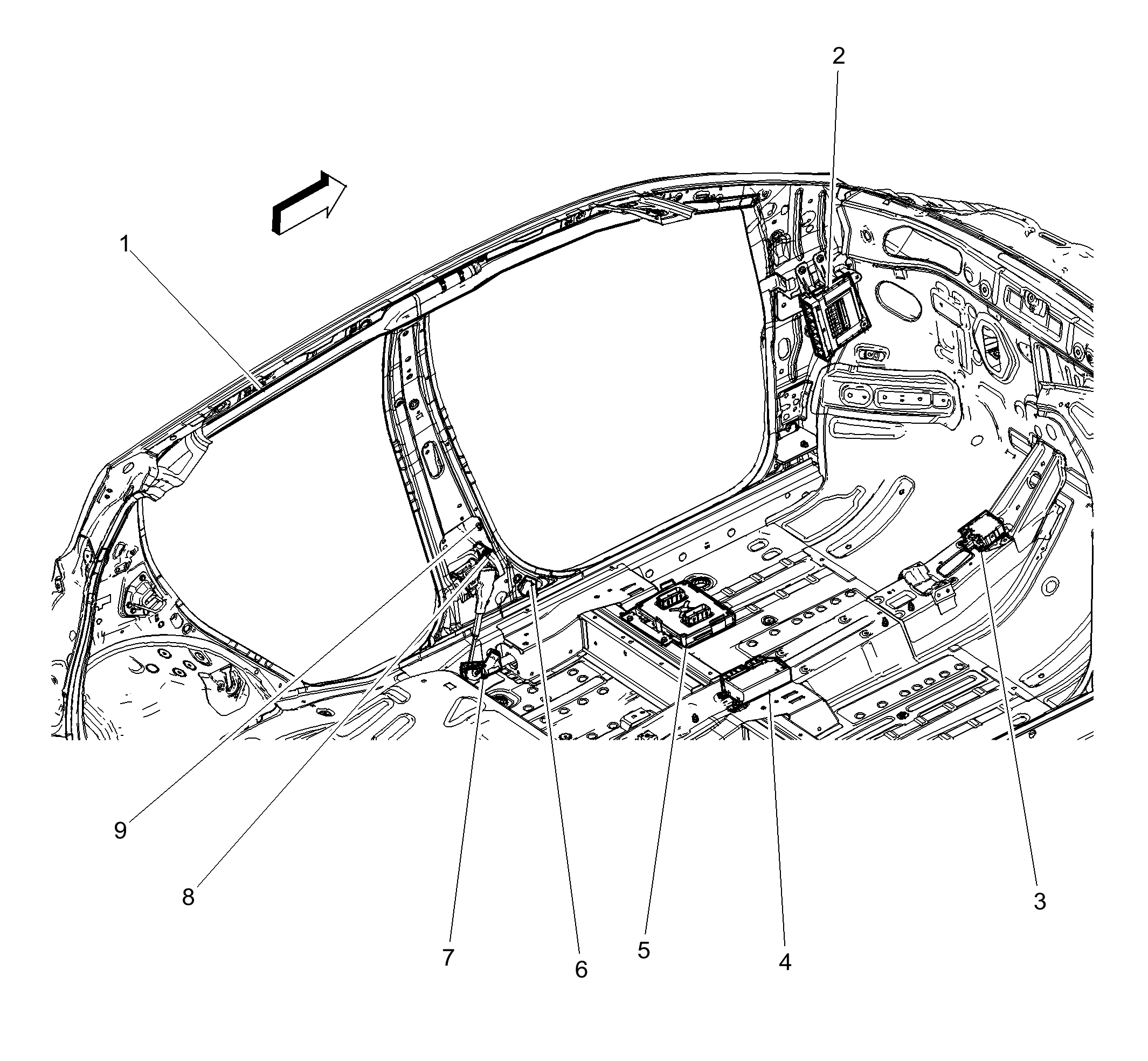

Fig 1: Left Front of Passenger Compartment Components (Right Hand Drive)
GM3216341Courtesy of GENERAL MOTORS COMPANY
