Pedestrian Sound Alert Module Replacement

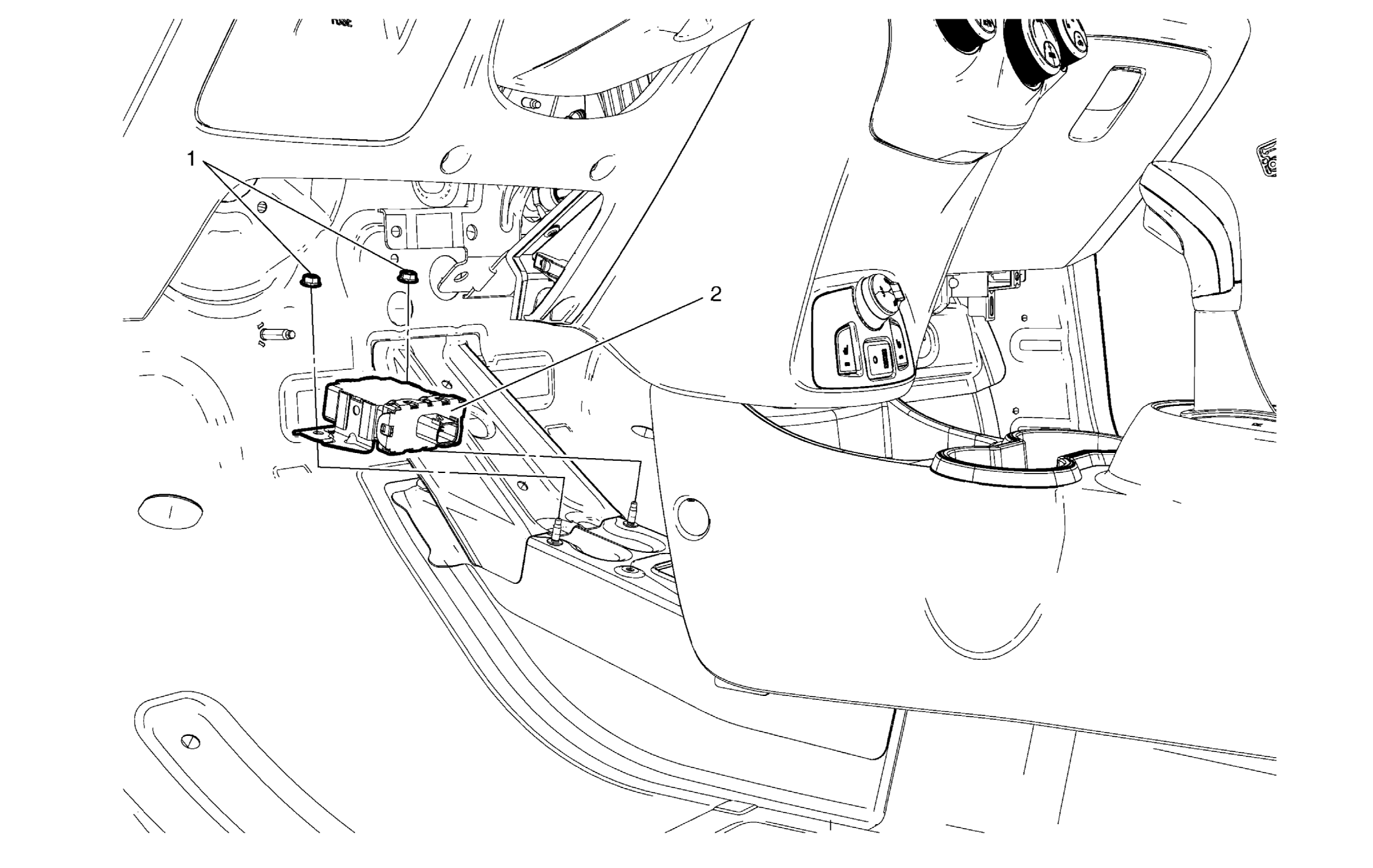

Fig 1: Pedestrian Sound Alert Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure To access the module, open the carpet covering the module from side to side.
1	Pedestrian Sound Alert Module Nuts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 (89 lb in)
2	Pedestrian Sound Alert Module Procedure Disconnect the electrical connector. Remove the module and bracket as an assembly.

Callout

Component Name

Preliminary Procedure
To access the module, open the carpet covering the module from side to side.

Pedestrian Sound Alert Module Nuts (Qty: 2)

CAUTION:

Tighten
10 (89 lb in)

Pedestrian Sound Alert Module

Procedure
