Radio Control Switch Replacement

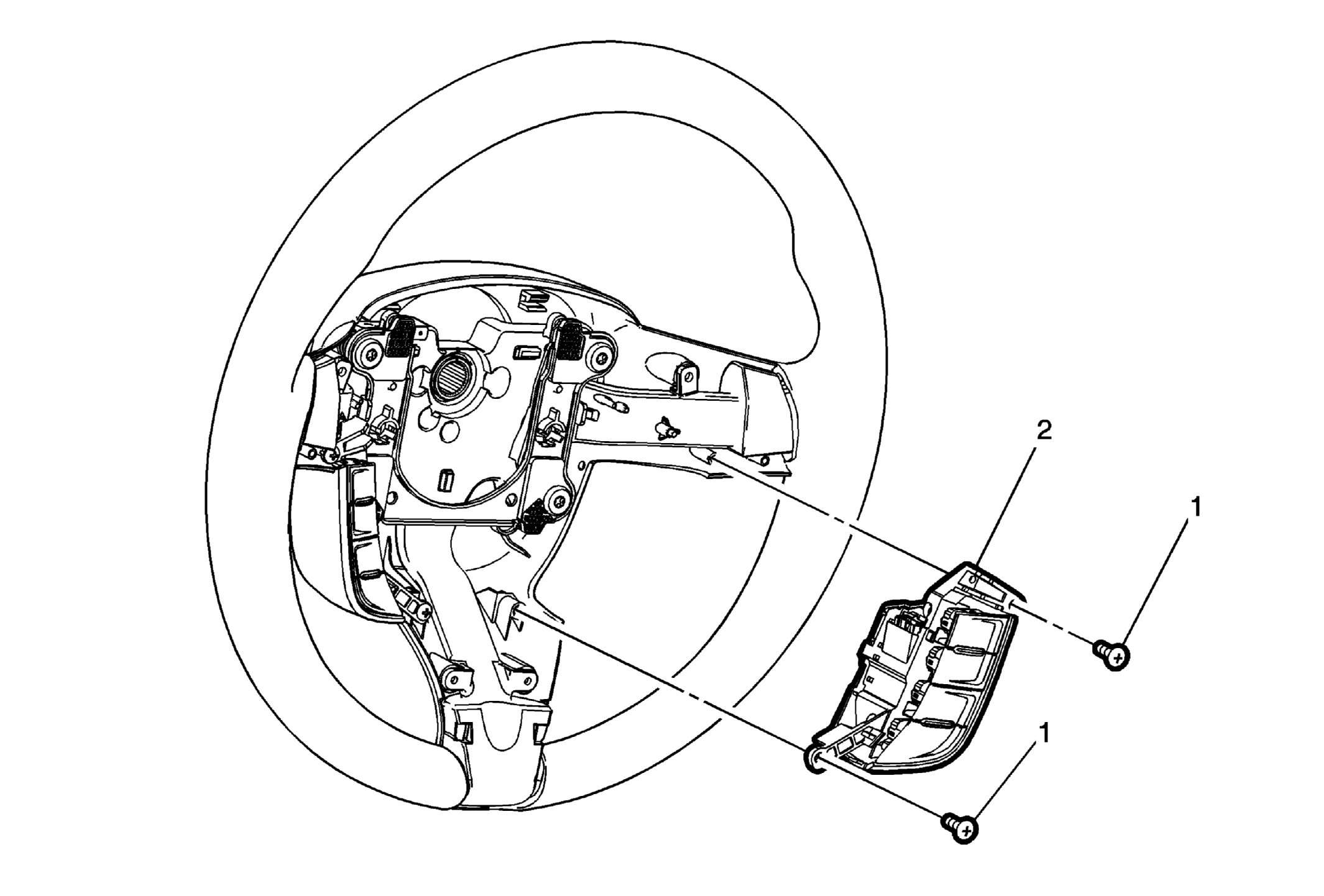

Fig 1: Radio Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering wheel spoke lower cover. Refer to Steering Wheel Spoke Lower Cover Replacement .
1	Radio Control Switch Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Radio Control Switch
