Center Console Components

Center Console Components

Items
1:  S3 Transmission Shift Lever S3 Transmission Shift Lever
3:  S109 Sport Mode Switch
4:  T10J Keyless Entry Antenna - Center Console Front T10J Keyless Entry Antenna - Center Console Front
6:  S75 Traction Control Switch S75 Traction Control Switch

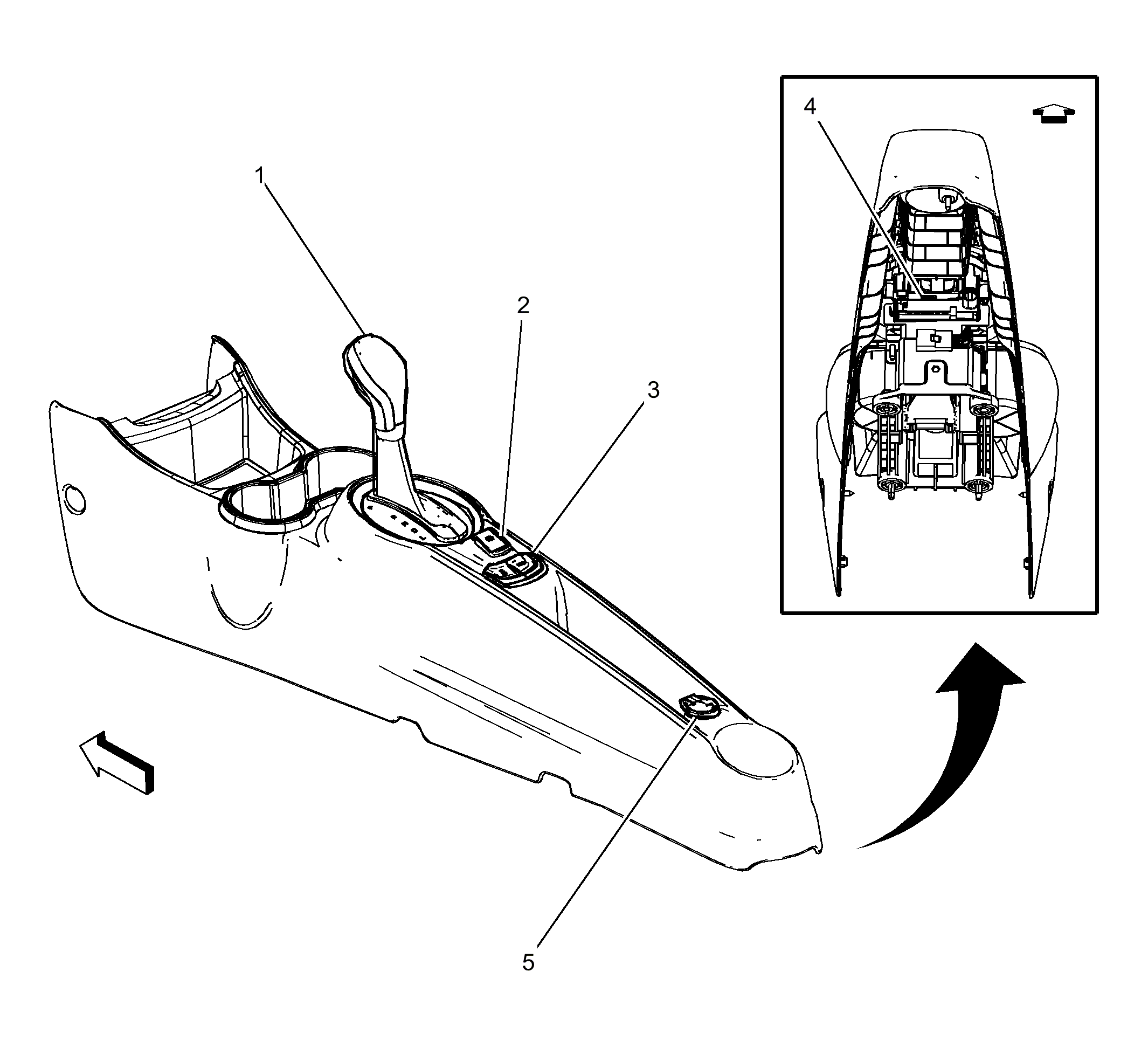

Fig 1: Center Console Components
GM3216350Courtesy of GENERAL MOTORS COMPANY
