Steering Wheel Secondary/Configurable Control Wiring Schematics

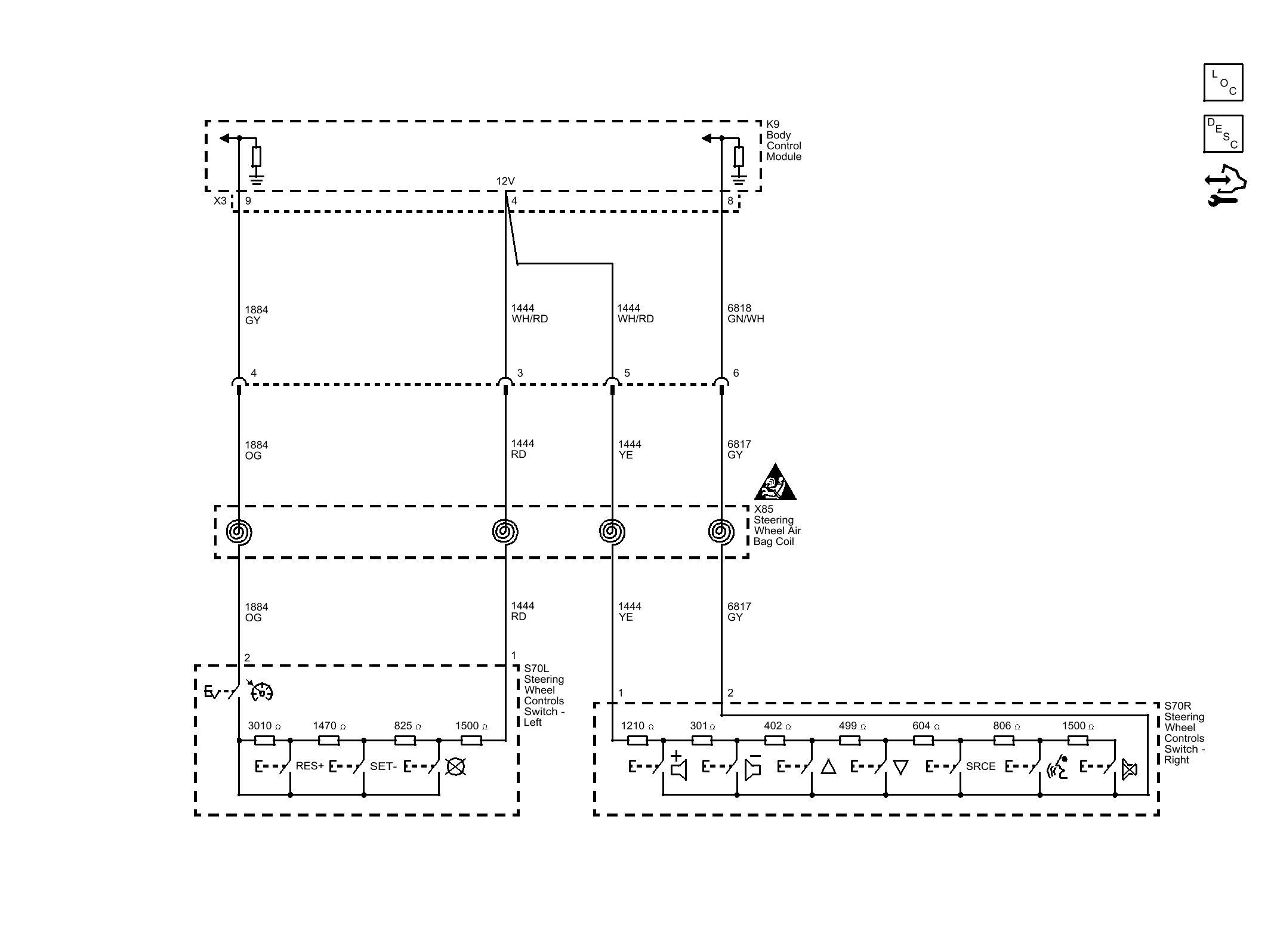

Fig 1: Steering Wheel Secondary/Configurable Control Wiring Schematic
GM3273702Courtesy of GENERAL MOTORS COMPANY
