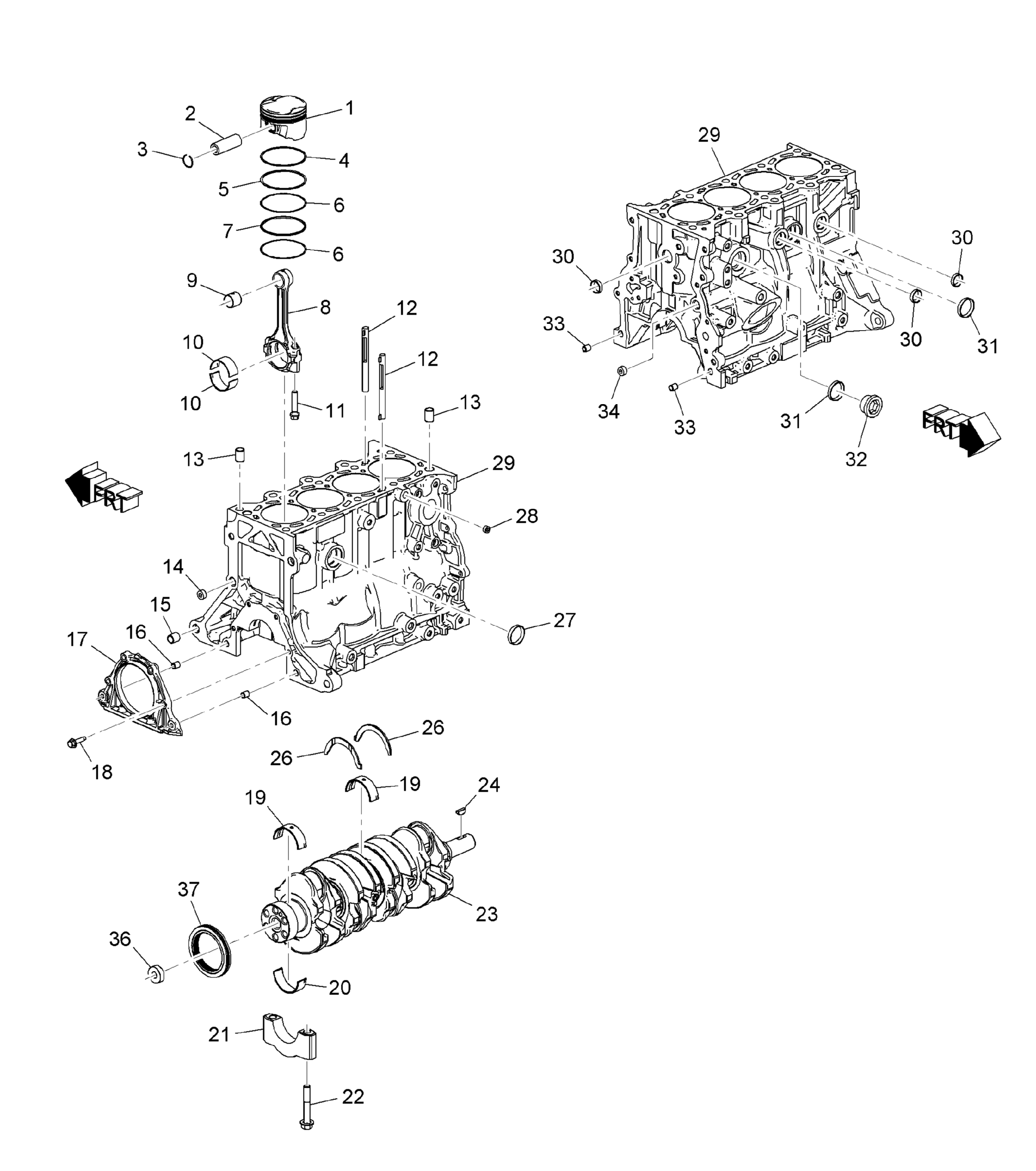

| 1 |
Piston Assembly |
| 2 |
Piston Pin |
| 3 |
Piston Pin Retainer |
| 4 |
Piston Ring - Upper |
| 5 |
Piston Ring - Lower |
| 6 |
Piston Oil Ring Rail |
| 7 |
Piston Oil Ring |
| 8 |
Connecting Rod |
| 9 |
Pin Guide |
| 10 |
Connecting Rod Bearing |
| 11 |
Connecting Rod Cap Bolt |
| 12 |
Engine Cooling Guide |
| 13 |
Dowel Pin |
| 14 |
Plug |
| 15 |
Dowel Pin |
| 16 |
Dowel Pin |
| 17 |
Crankshaft Rear Oil Seal Cover |
| 18 |
Crankshaft Rear Oil Seal Cover Bolt |
| 19 |
Crankshaft Upper Bearing |
| 20 |
Crankshaft Lower Bearing |
| 21 |
Crankshaft Bearing Cap Cover |
| 22 |
Crankshaft Bearing Cap Cover Bolt |
| 23 |
Crankshaft |
| 24 |
Key |
| 26 |
Bearing |
| 27 |
Plug Cup |
| 28 |
Plug |
| 29 |
Cylinder Block |
| 30 |
Plug Cup |
| 31 |
Plug Cup |
| 32 |
Plug |
| 33 |
Dowel Pin |
| 34 |
Plug |
| 36 |
Plug |
| 37 |
Crankshaft Rear Oil Seal |
