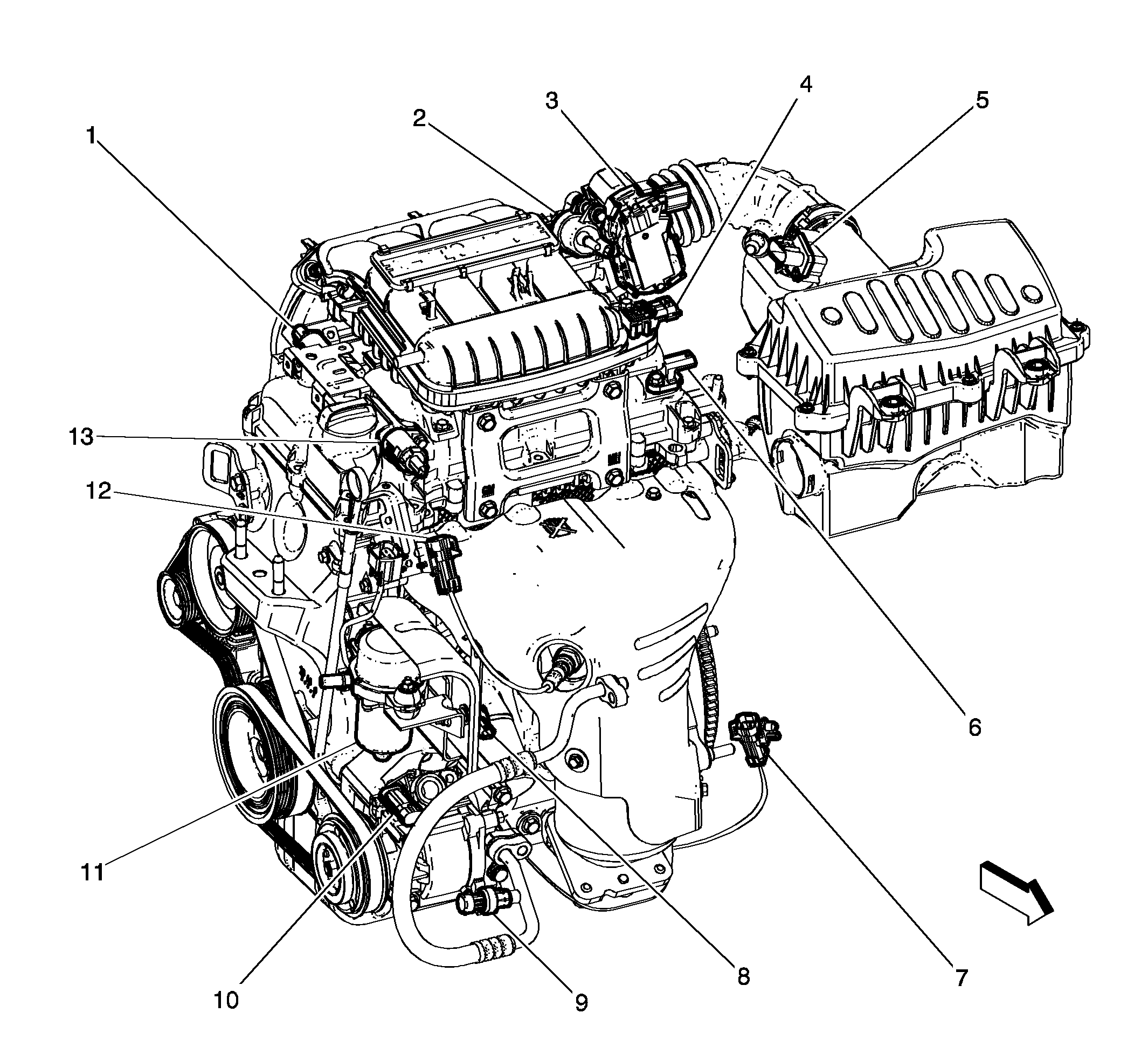

Front of Engine Components
Front of Engine Components
| Items |
|---|
| 1: Q6F Camshaft Position Actuator Solenoid Valve - Intake |
| 2: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 3: Q38 Throttle Body Q38 Throttle Body (-M4M)Q38 Throttle Body (M4M) |
| 4: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 5: B75B Mass Air Flow/Intake Air Temperature Sensor B75B Mass Air Flow Intake Air Temperature Sensor |
| 6: B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust |
| 7: B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 |
| 8: B37 Engine Oil Pressure Switch B37 Engine Oil Pressure Switch |
| 9: B1 A/C Refrigerant Pressure Sensor (C60) B1 A/C Refrigerant Pressure Sensor |
| 10: Q2 A/C Compressor Clutch (C60) Q2 A/C Compressor Clutch |
| 11: M9 Brake Booster Pump Motor M9 Brake Booster Pump Motor |
| 12: B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 |
| 13: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust |
