Fuel Level Sensor Replacement (LFM)

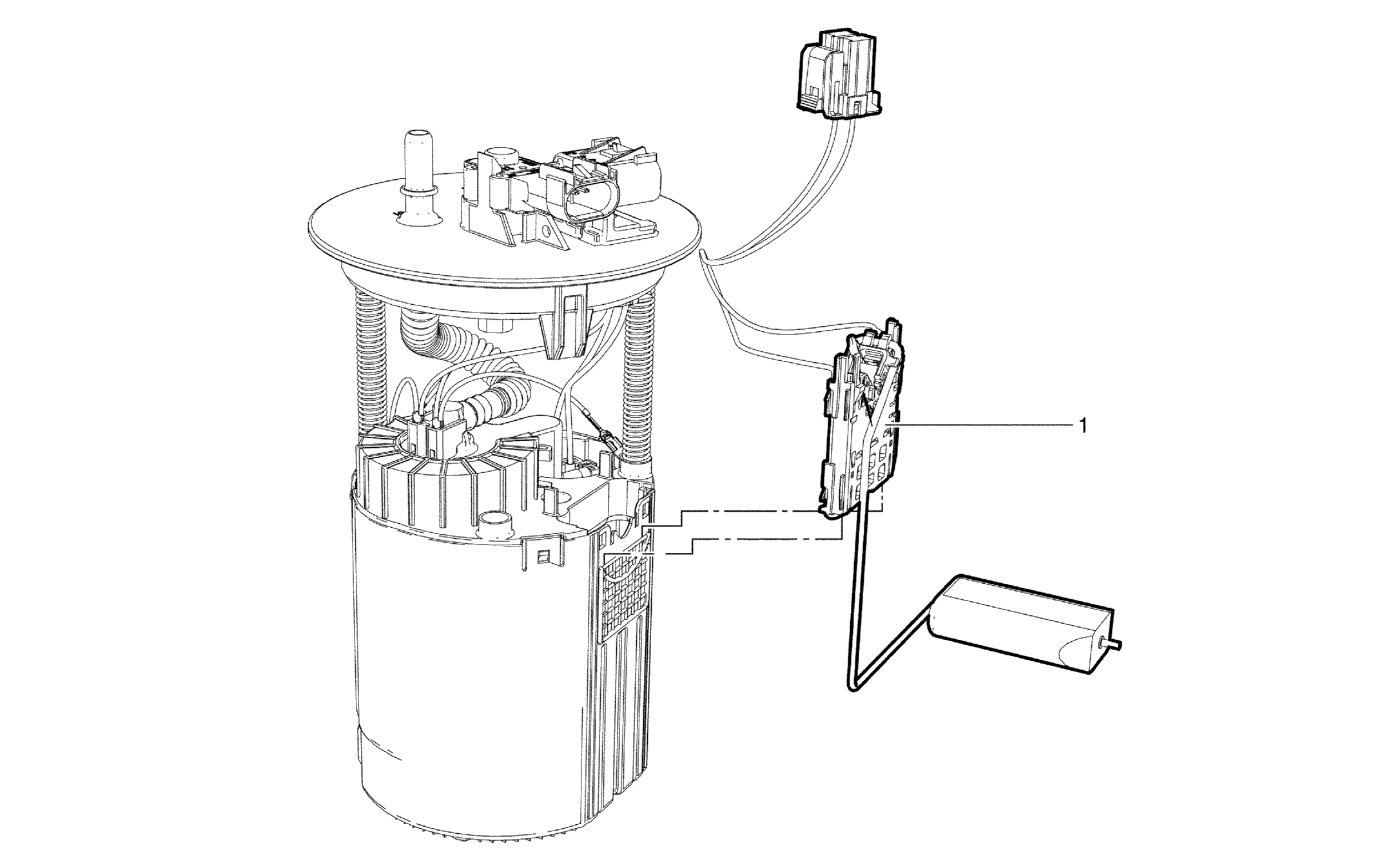

Fig 1: Fuel Level Sensor (LFM)
GM3416002Courtesy of GENERAL MOTORS COMPANY
Fuel Level Sensor Replacement (LFM)

Callout Component Name
Preliminary Procedure
Remove the fuel pump. Refer to Fuel Tank Fuel Pump Module Replacement (LL0) , Fuel Tank Fuel Pump Module Replacement (LFM) .
1 Fuel Level Sensor

Procedure

  1. Disconnect the fuel level sensor electrical connector.
  2. Remove the fuel level sensor.
