Automatic Transmission Components (MFL/MNG)

Automatic Transmission Components (MFL/MNG)

Items
1:  B14A Transmission Output Shaft Speed Sensor B14A Transmission Output Shaft Speed Sensor (M4M)B14A Transmission Output Shaft Speed Sensor (MFL/MNG)
2:  B14C Transmission Input Shaft Speed Sensor (MNG) B14C Transmission Input Shaft Speed Sensor (MFL/MNG)
3:  Q8 Control Solenoid Valve Assembly Q8 Control Solenoid Valve Assembly

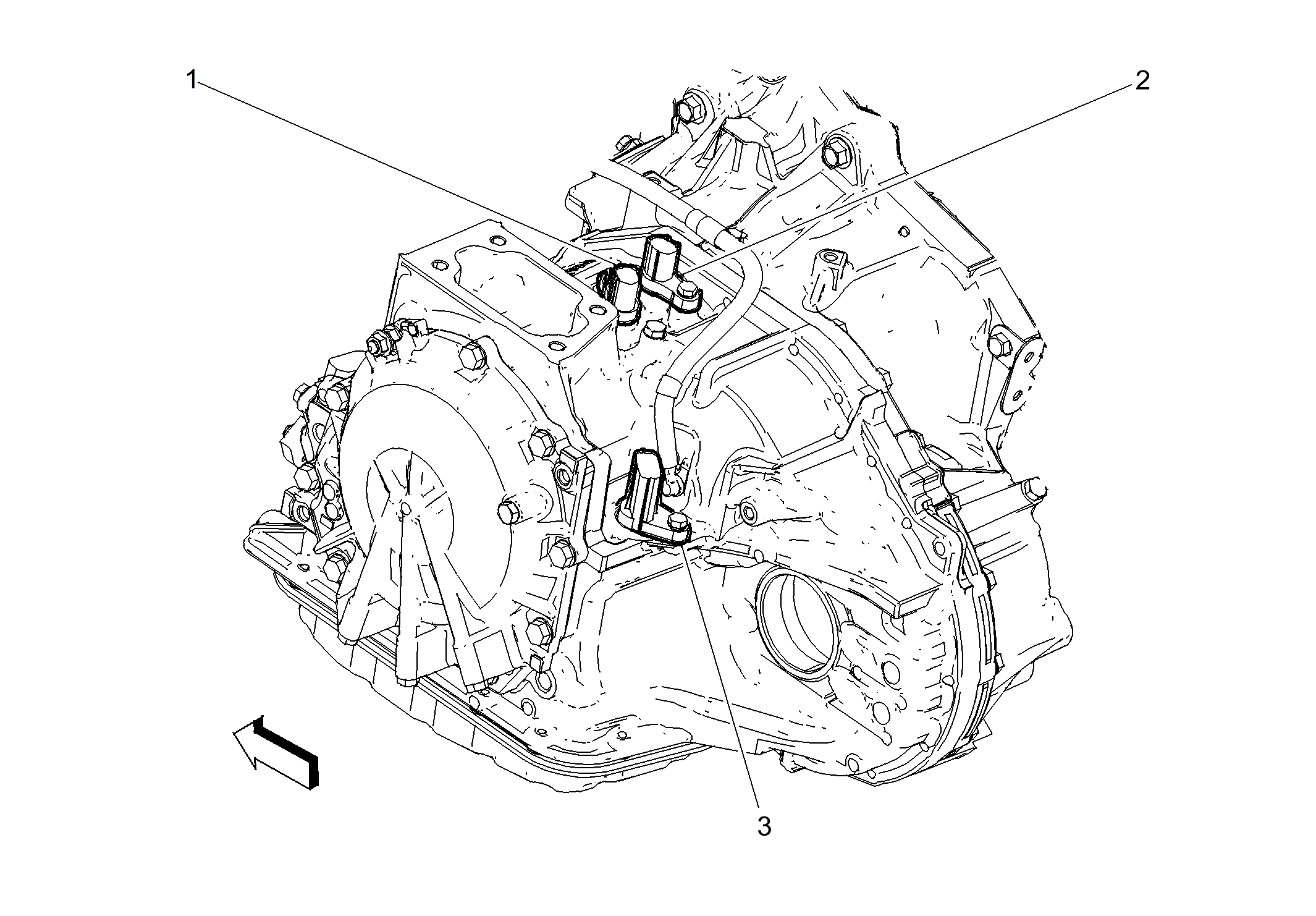

Fig 1: Automatic Transmission Components (MFL/MNG)
GM3420903Courtesy of GENERAL MOTORS COMPANY
