Forward Collision Alert Display Replacement

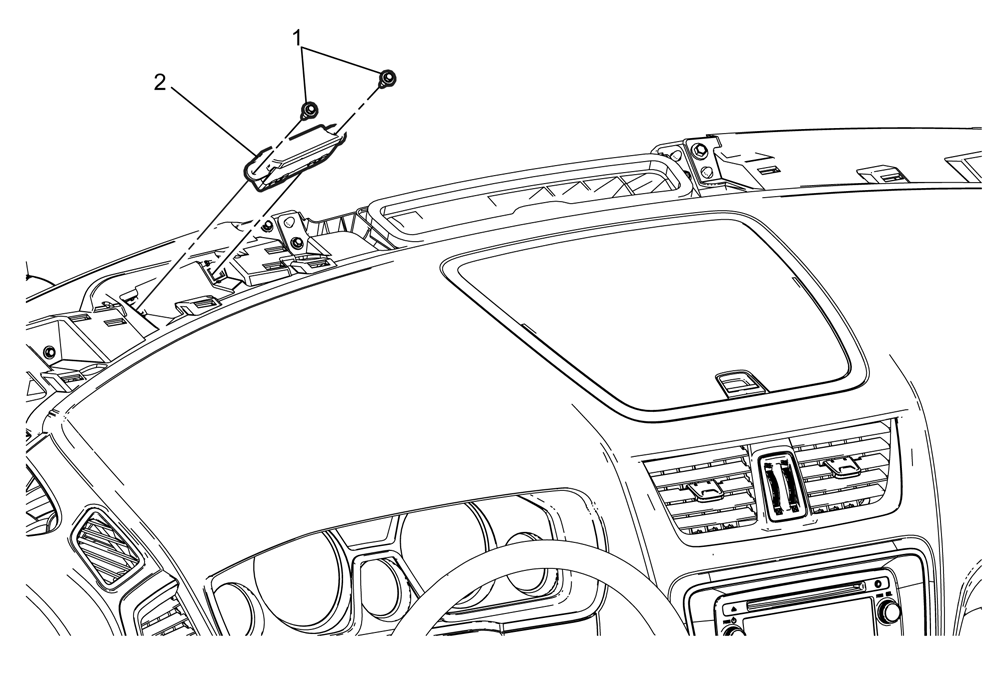

Fig 1: Forward Collision Alert Display
GM3653528Courtesy of GENERAL MOTORS COMPANY
Forward Collision Alert Display Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel upper trim panel with windshield defroster nozzle grille. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Acadia w/RPO UV6) , Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Acadia w/o RPO UV6) , Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Enclave) , Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Traverse) .
1 Forward Collision Alert Display (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)
2 Forward Collision Alert Display
Procedure
Disconnect the electrical connector.
