Radiator Replacement

WARNING: This page is about a different car, the 2015 GMC Acadia, 2015 Chevrolet Traverse, and 2015 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

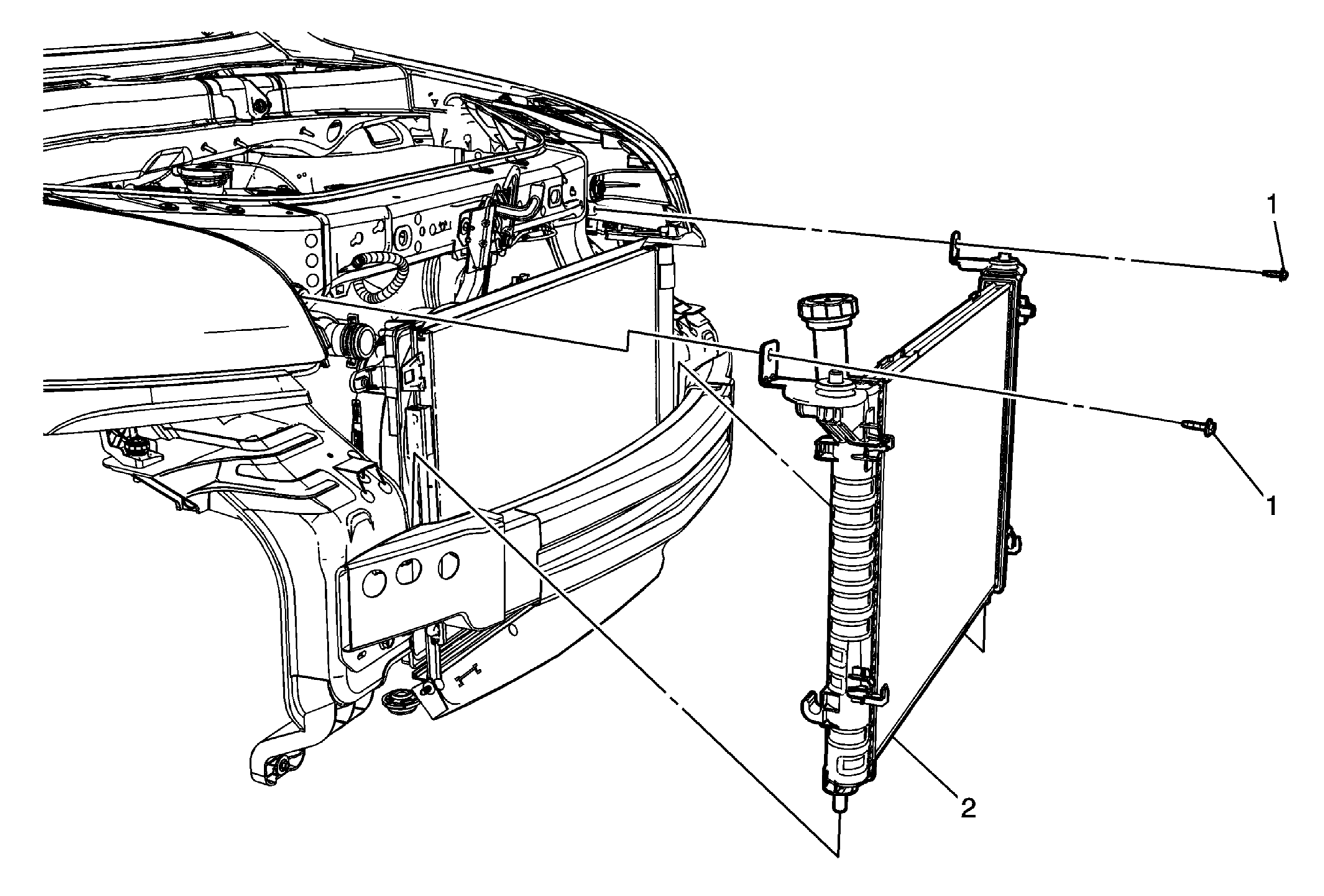

Fig 1: Identifying Radiator
GM1864161Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Drain the coolant. Refer to Cooling System Draining and Filling (Static Fill) Cooling System Draining and Filling (Vac N Fill) .
  2. Remove radiator inlet hose. Refer to Radiator Inlet Hose Replacement .
  3. Remove radiator outlet hose. Refer to Radiator Outlet Hose Replacement .
  4. Remove fan shroud top mounting bolts and pushpin from radiator and position fan shroud rearward. Refer to Cooling Fan and Shroud Replacement .
  5. Remove transmission inlet cooling hose from radiator. Refer to Fluid Cooler Inlet Hose Replacement .
  6. Remove transmission outlet cooling hose from radiator. Refer to Fluid Cooler Outlet Hose Replacement .
  7. Remove coolant reservoir hose from radiator filler neck.
  8. Remove the front bumper fascia upper support. Refer to Front Bumper Fascia Upper Support Replacement (Acadia, Enclave, Traverse) .
  9. Pinch fastening tabs together at top of condenser to remove from radiator and position forward.
  10. Remove side rubber air deflectors from radiator tanks.
1 Radiator Mounting Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Radiator
NOTE:
  • Bottom of condenser mounts into holding fixtures at bottom of radiator.
  • Radiator will slide out between the condenser and fan shroud.
