Navigation Display (UDN)

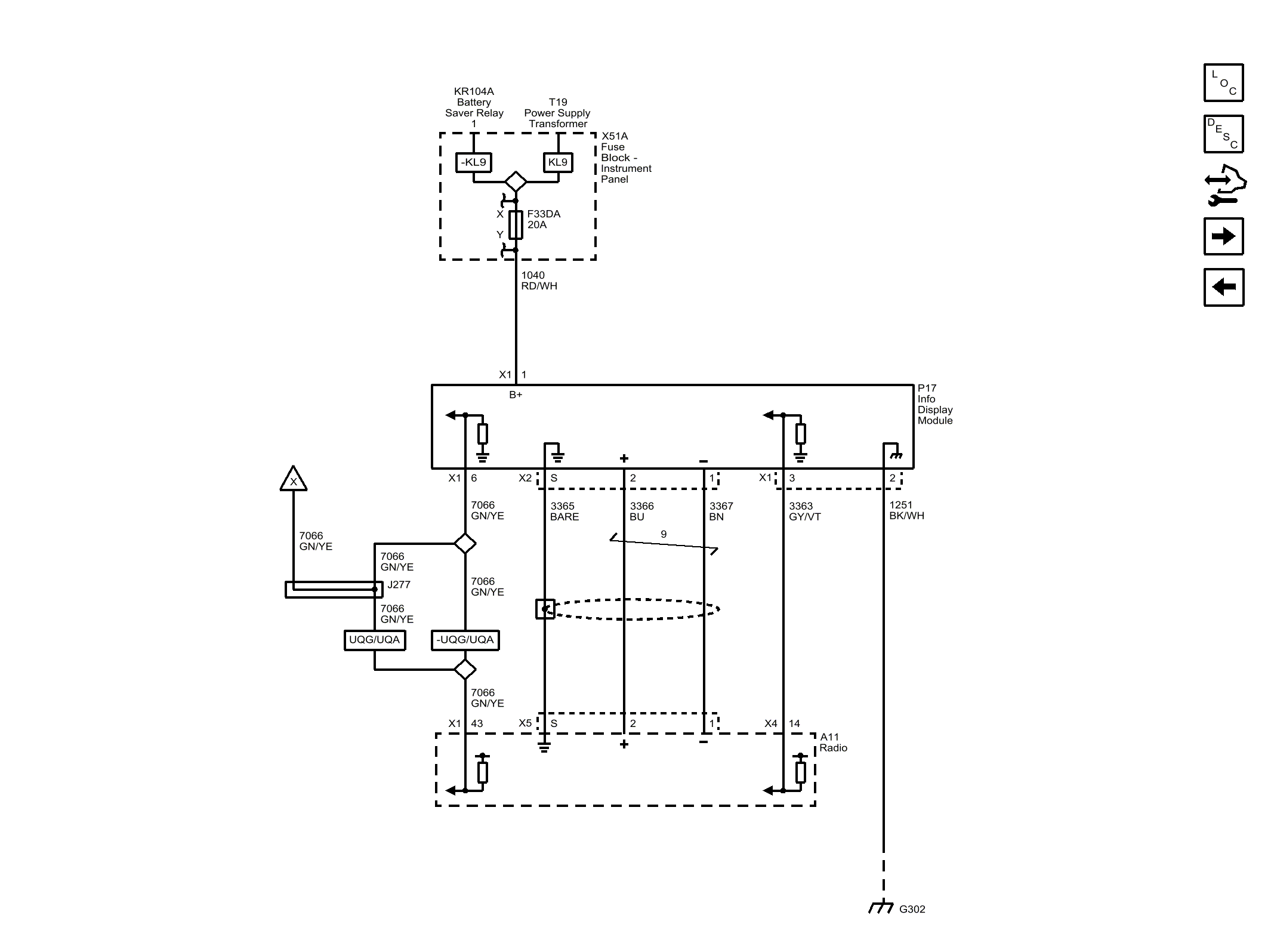

Fig 1: Navigation Display (UDN)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
