Power, Ground, Serial Data, Antenna, and Audio/Video Inputs

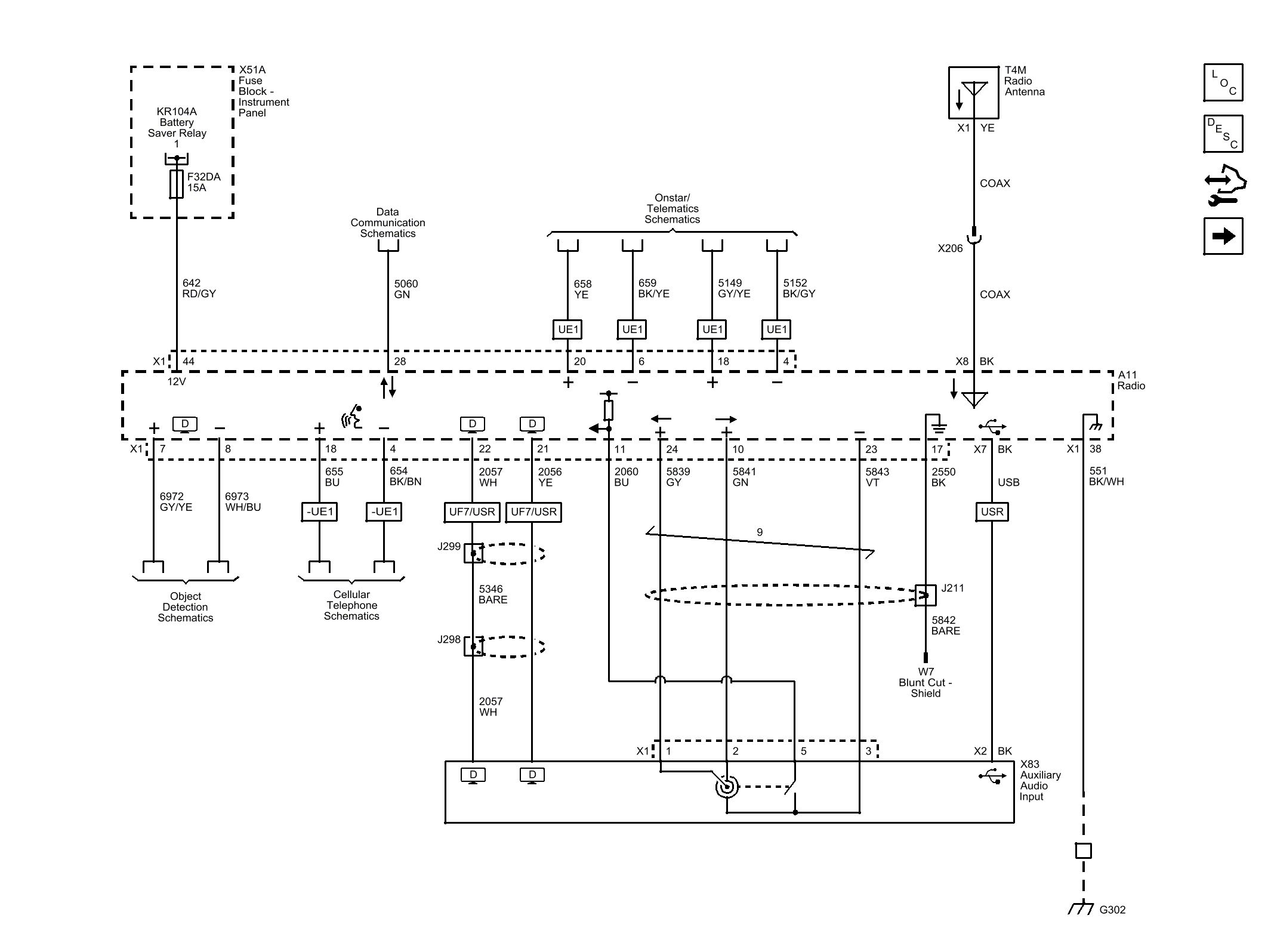

Fig 1: Power, Ground, Serial Data, Antenna, and Audio/Video Inputs
GM3634653Courtesy of GENERAL MOTORS COMPANY
