Headlamp Assembly (ZL1)

Headlamp Assembly (ZL1)

Items
1: E13RA Headlamp Assembly - Right (T4F or ZL1) E13RA Headlamp Assembly - Right (T4F)
2: E4RF Turn Signal Lamp - Right Front (T4F or ZL1) E4RF Turn Signal Lamp - Right Front (T4F)
3: E4LF Turn Signal Lamp - Left Front (T4F or ZL1) E4LF Turn Signal Lamp - Left Front (T4F)
4: E13LA Headlamp Assembly - Left (T4F or ZL1) E13LA Headlamp Assembly - Left (T4F)

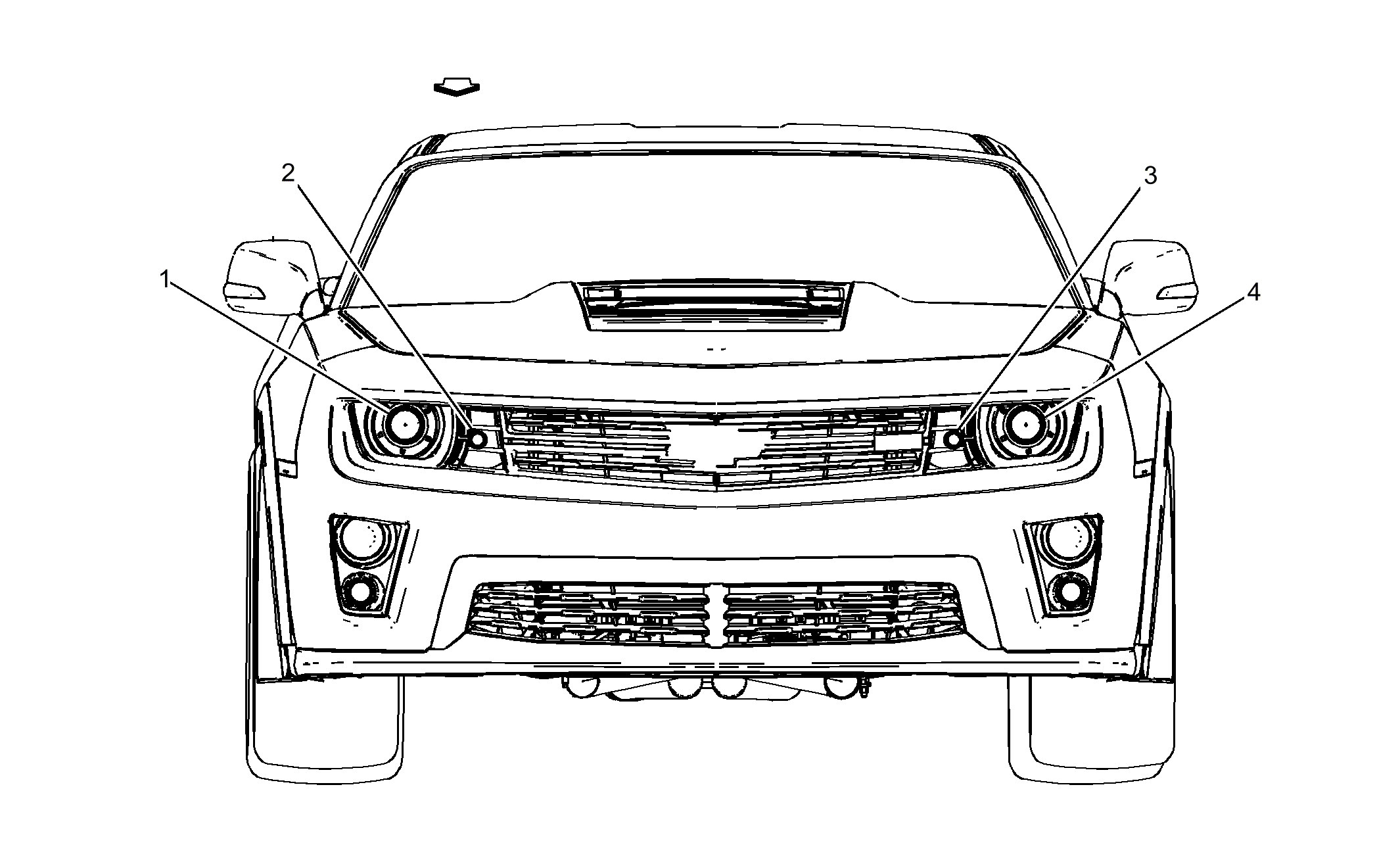

Fig 1: Headlamp Assembly (ZL1)
GM3649490Courtesy of GENERAL MOTORS COMPANY
