Parking Assist Control Module Replacement

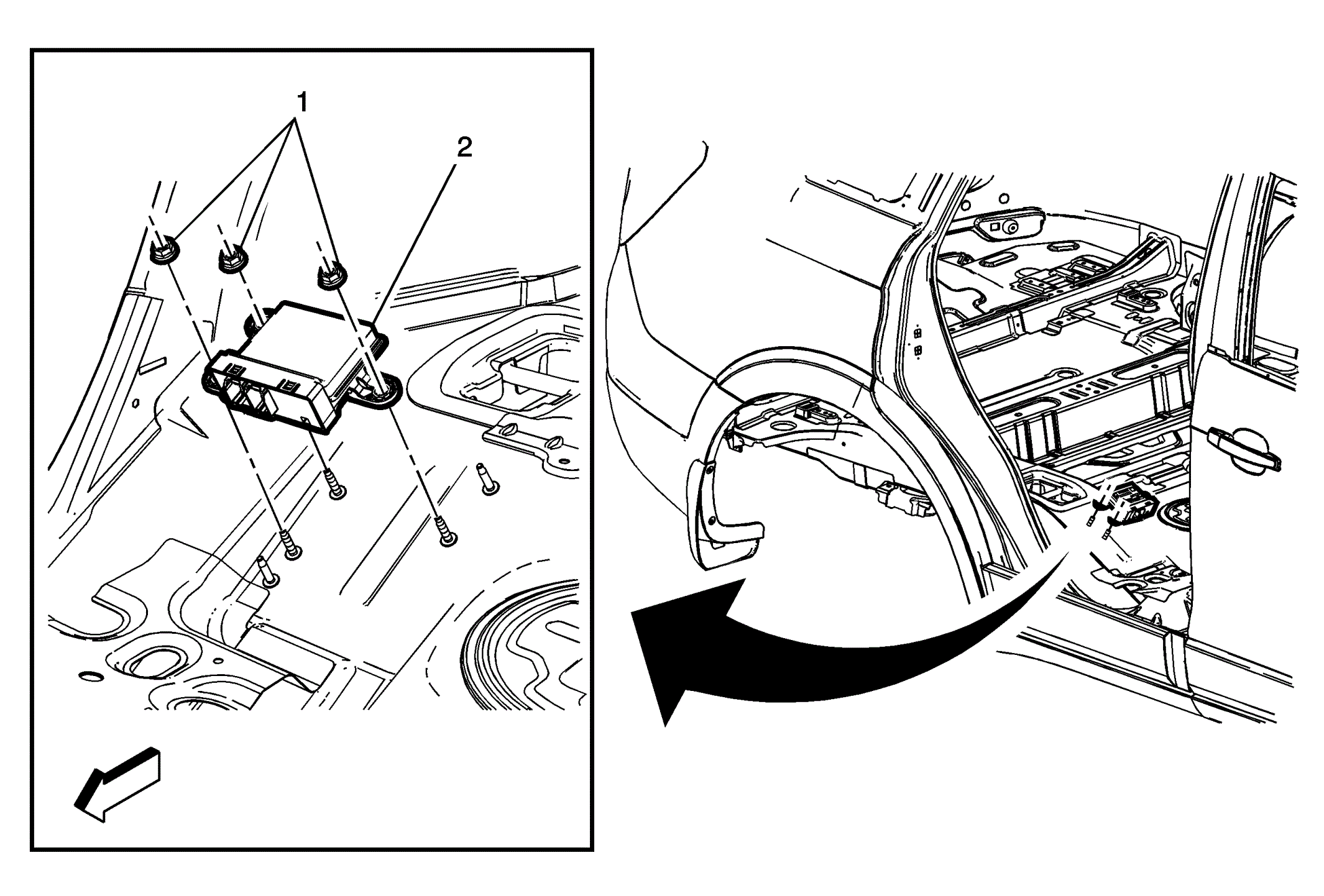

Fig 1: Parking Assist Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment floor stowage compartment cover. Refer to Rear Compartment Floor Stowage Compartment Cover Replacement .
1	Rear Object Alarm Control Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Rear Object Alarm Control Module Procedure Disconnect the electrical connectors. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear compartment floor stowage compartment cover. Refer to Rear Compartment Floor Stowage Compartment Cover Replacement .

Rear Object Alarm Control Module Fastener (Qty: 3)

CAUTION:

Tighten
6 N.m (53 lb in)

Rear Object Alarm Control Module

Procedure
