Chevrolet
>>
2015
>>
Captiva Sport LS
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Object Detection And Pedestrian Protection System
>>
Schematic Wiring Diagrams
>>
Object Detection Wiring Schematics
>>
Rear Object Sensing Power, Ground, and Serial Data (UD7)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Rear Object Sensing Power, Ground, and Serial Data (UD7)

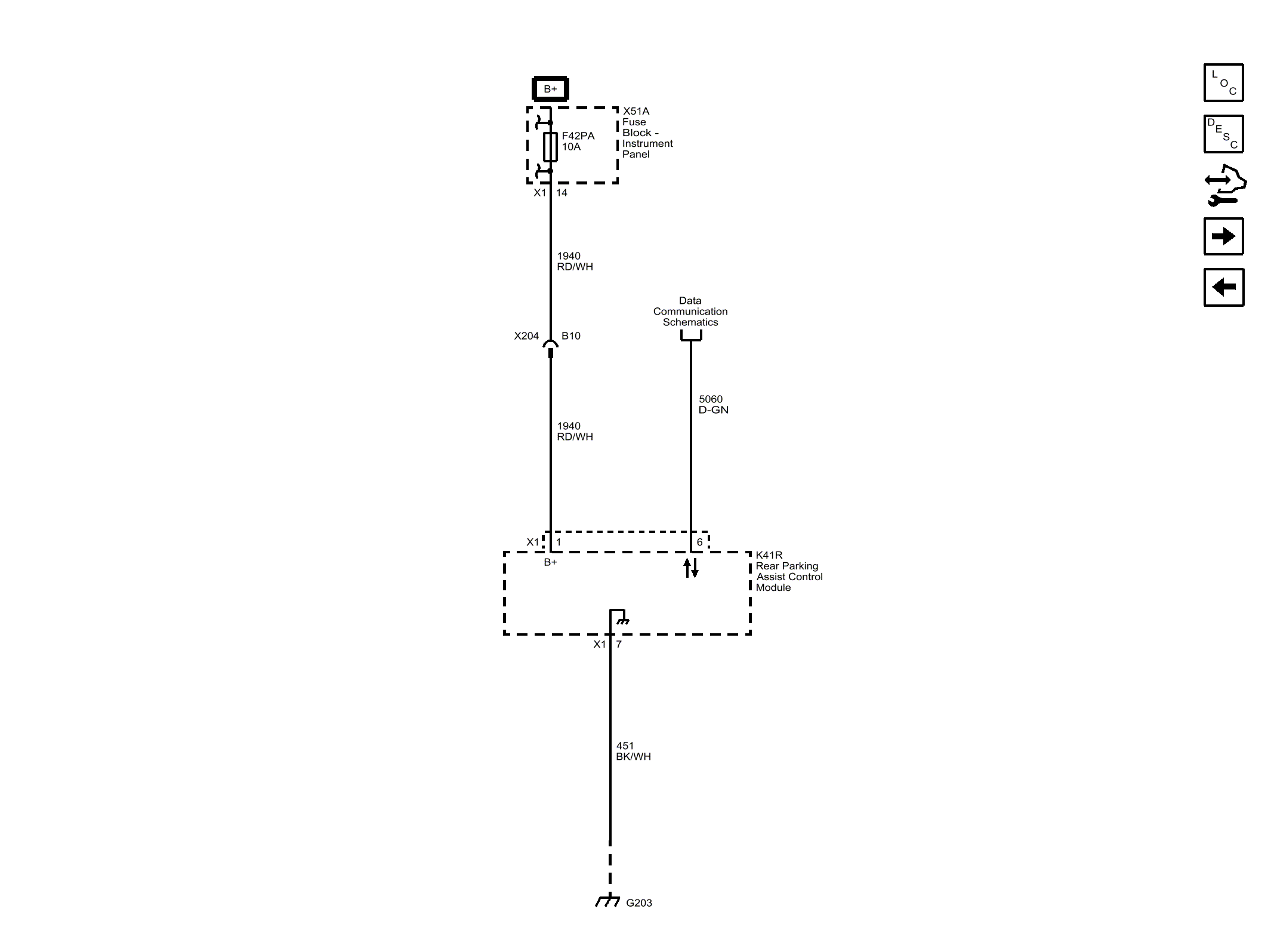

Fig 1: Rear Object Sensing Power, Ground, and Serial Data (UD7)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
