Serial Data Communications Enable and Accessory Wake Up

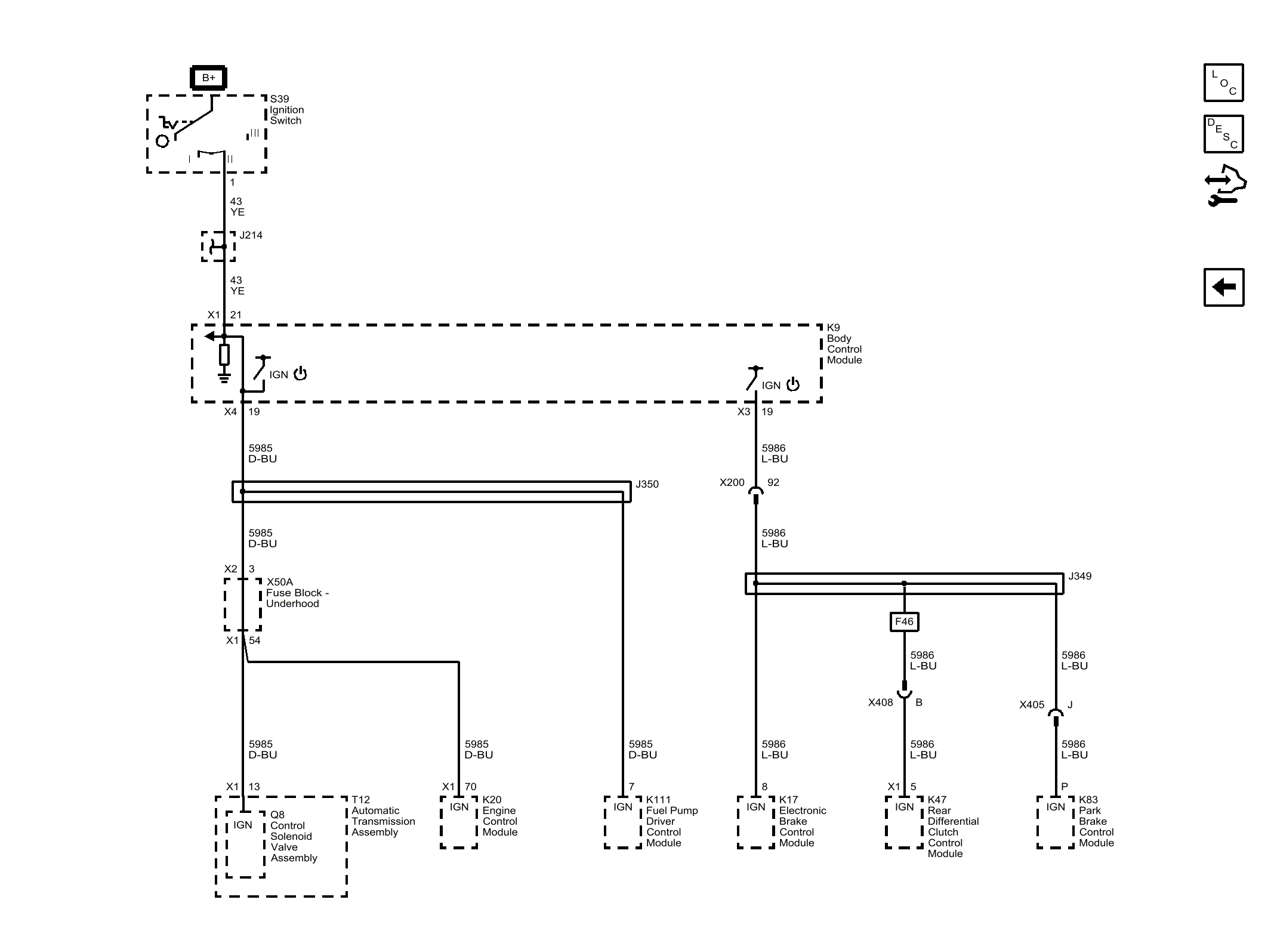

Fig 1: Serial Data Communications Enable and Accessory Wake Up
GM3763579Courtesy of GENERAL MOTORS COMPANY
