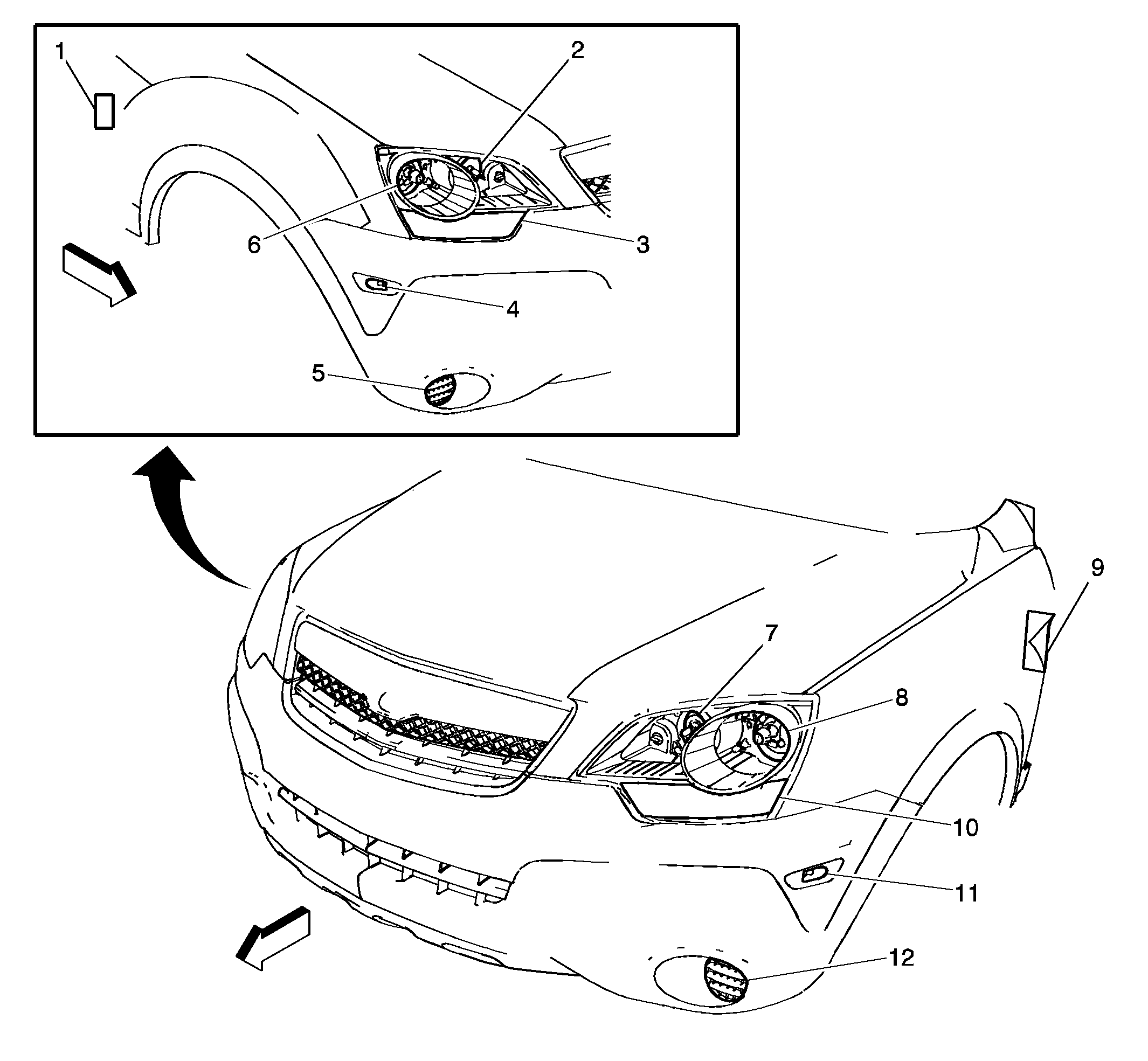

Front Fascia Lighting Components
Front Fascia Lighting Components
| Items |
|---|
| 1: E4Z Turn Signal Repeater Lamp - Right E4Z Turn Signal Repeater Lamp - Right |
| 2: E4F Headlamp - Right High Beam E4F Headlamp - Right High Beam |
| 3: E4P Park/Turn Signal Lamp - Right E4P Park/Turn Signal Lamp - Right |
| 4: E2RF Side Marker Lamp - Right Front E2RF Side Marker Lamp - Right Front |
| 5: E29RF Fog Lamp - Right Front E29RF Fog Lamp - Right Front |
| 6: E4H Headlamp - Right Low Beam E4H Headlamp - Right Low Beam |
| 7: E4E Headlamp - Left High Beam E4E Headlamp - Left High Beam |
| 8: E4G Headlamp - Left Low Beam E4G Headlamp - Left Low Beam |
| 9: E4Y Turn Signal Repeater Lamp - Left E4Y Turn Signal Repeater Lamp - Left |
| 10: E4N Park/Turn Signal Lamp - Left E4N Park/Turn Signal Lamp - Left |
| 11: E2LF Side Marker Lamp - Left Front E2LF Side Marker Lamp - Left Front |
| 12: E29LF Fog Lamp - Left Front E29LF Fog Lamp - Left Front |
