Steering Wheel Secondary/Configurable Controls

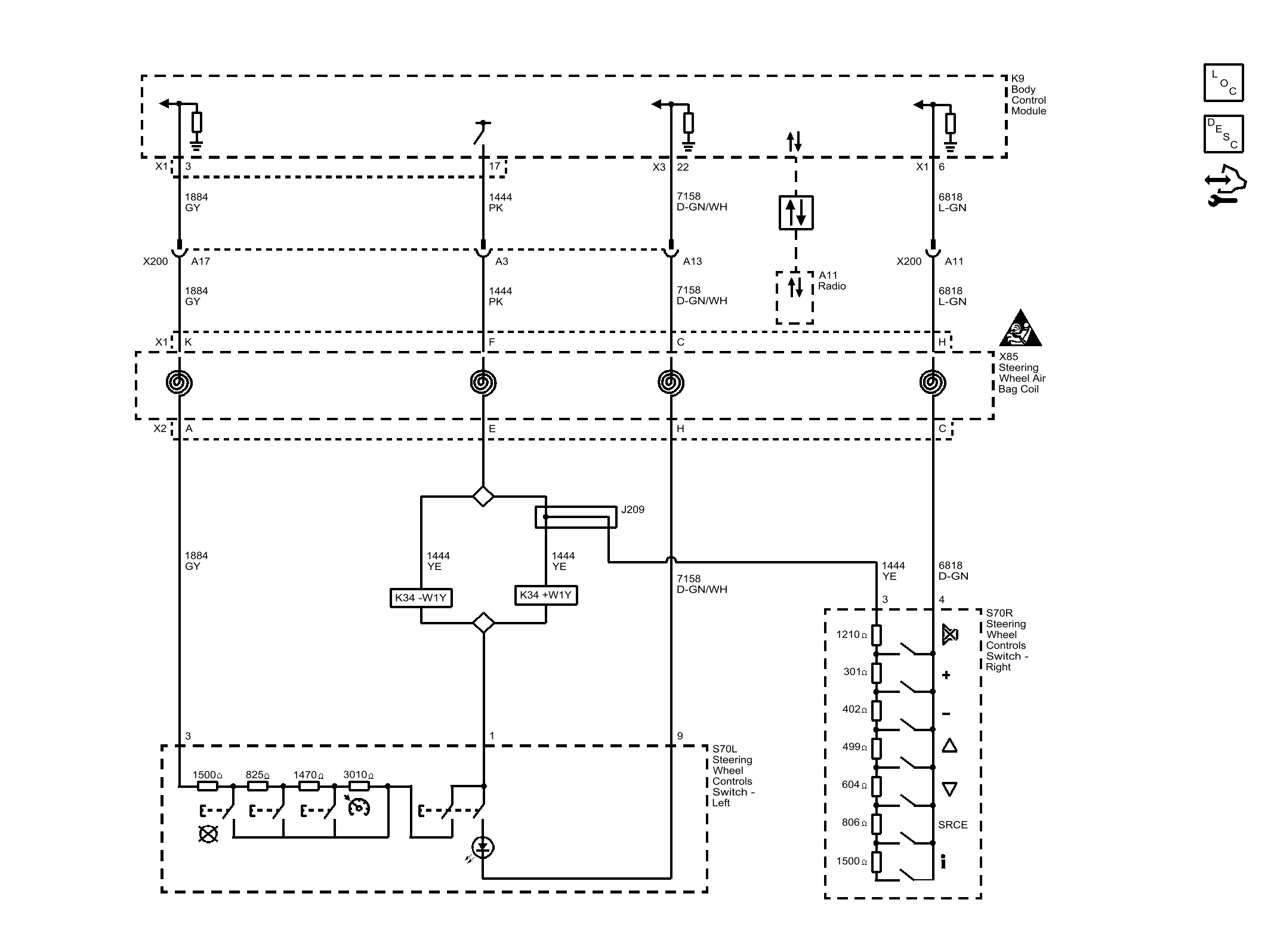

Fig 1: Steering Wheel Secondary/Configurable Controls
GM3805045Courtesy of GENERAL MOTORS COMPANY
