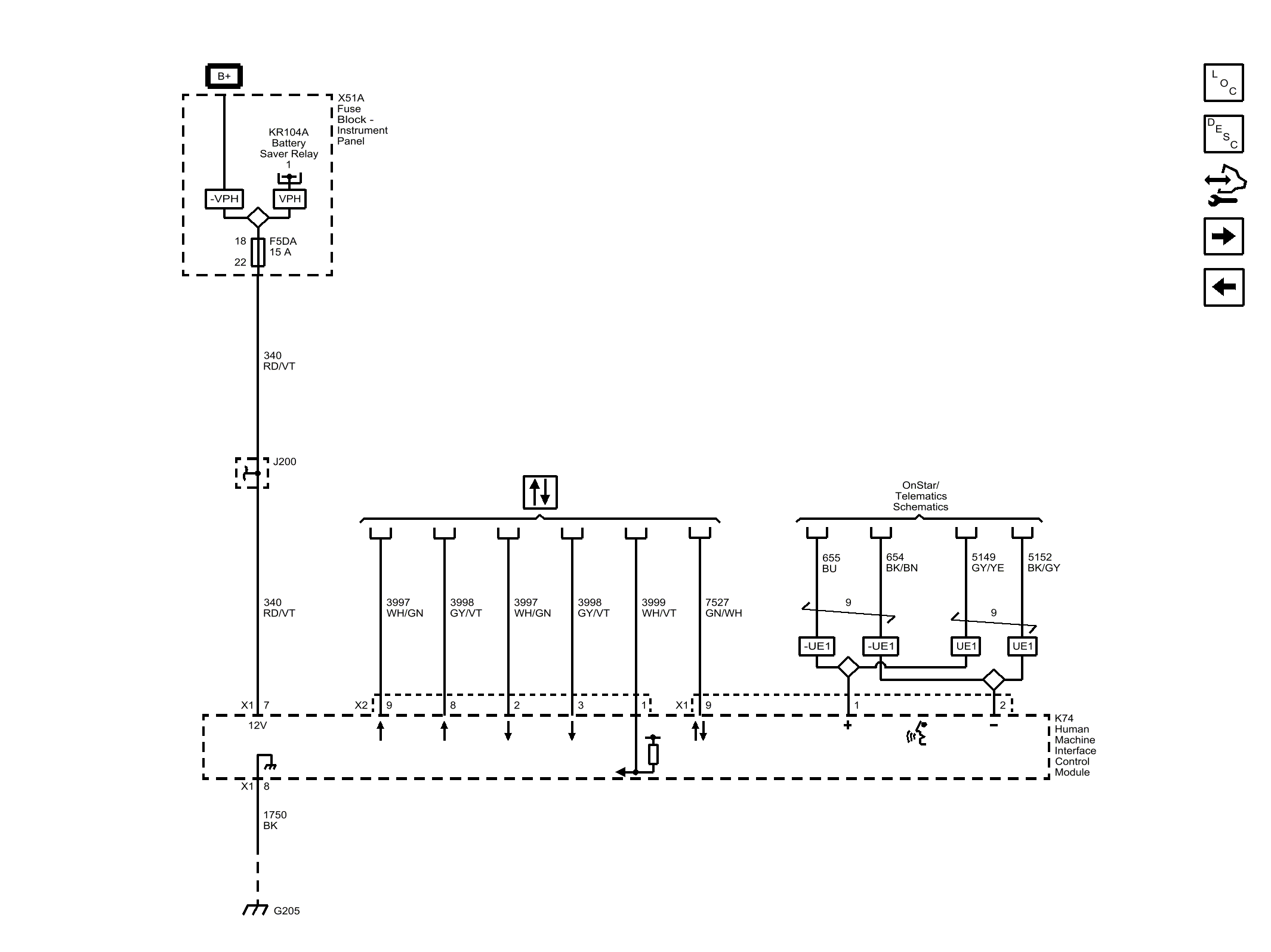

Human Machine Interface Power, Ground, Serial Data and Subsystem References (IO5 or IO6)

WARNING: This page is about a different car, the 2015 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
