Media Disc Player Power, Ground and Serial Data
WARNING:
This page is about a different car, the 2015 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

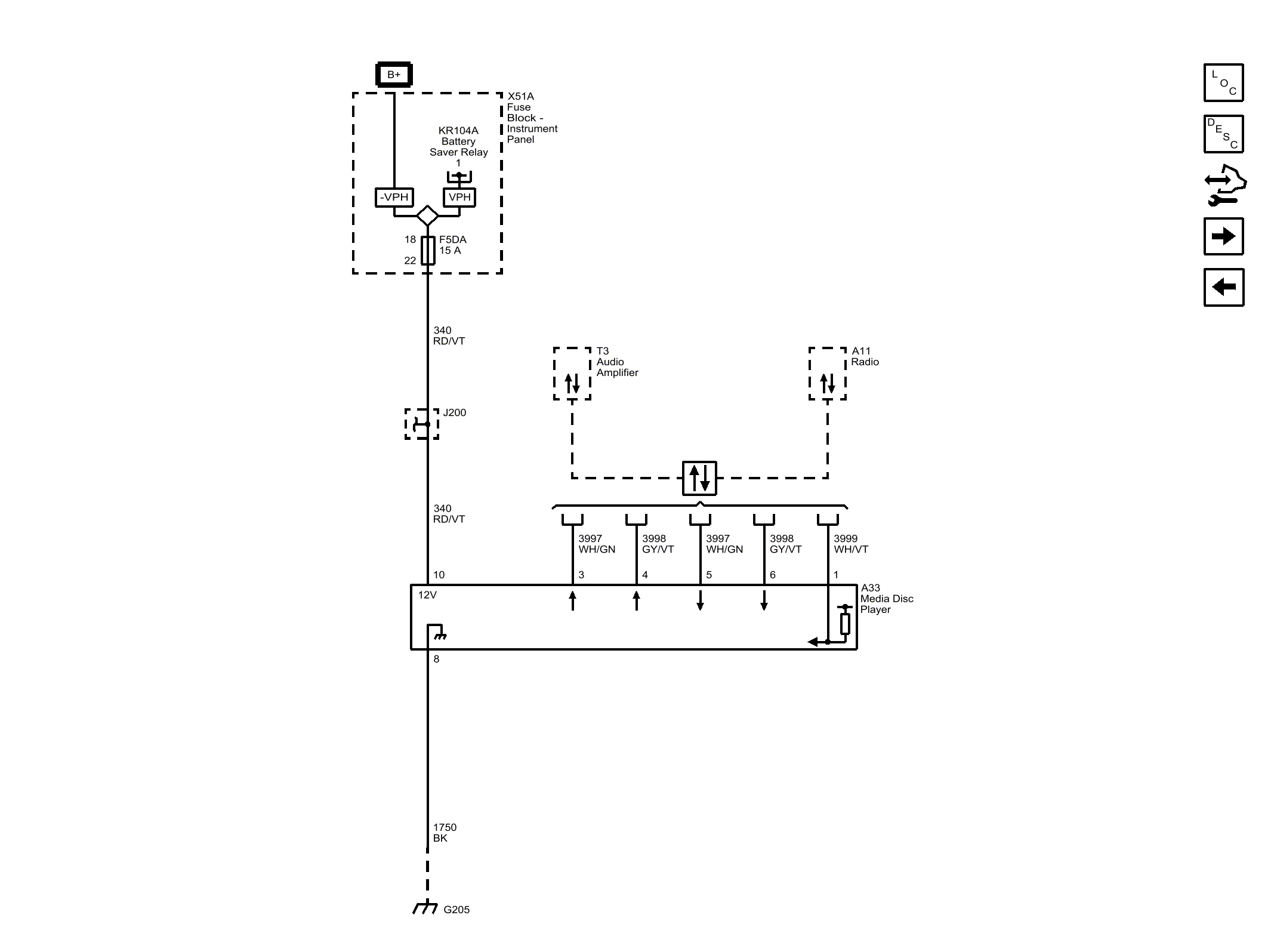

Fig 1: Media Disc Player Power, Ground and Serial Data
Courtesy of GENERAL MOTORS COMPANY
