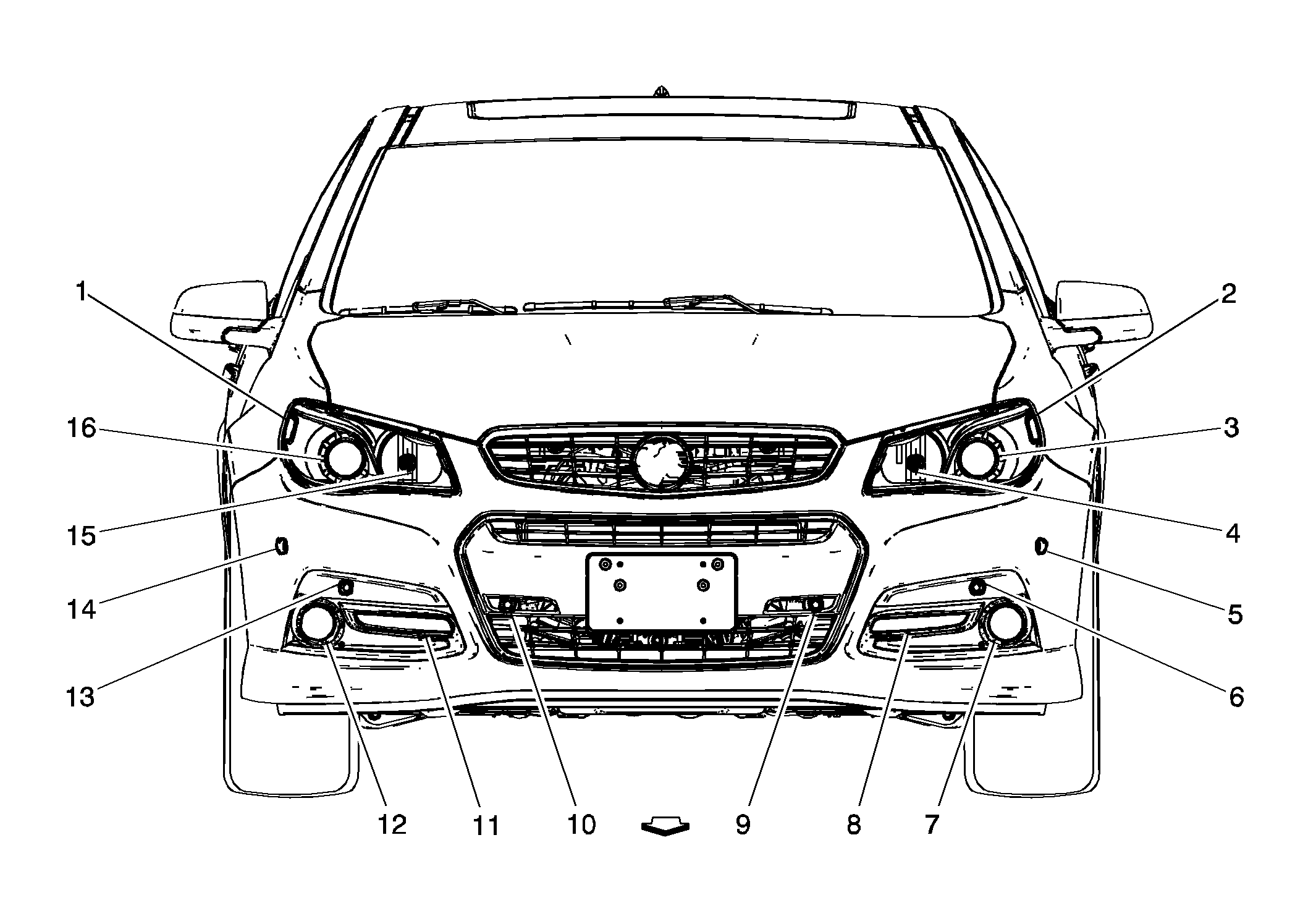

Front of Vehicle Components
Front of Vehicle Components
| Items |
|---|
| 1: E2RF Side Marker Lamp - Right Front |
| 2: E2LF Side Marker Lamp - Left Front |
| 3: E13LA Headlamp Assembly - Left |
| 4: E4LF Turn Signal Lamp - Left Front |
| 5: B94LF Side Object Sensor - Left Front (UFQ) B94LF Side Object Sensor - Left Front (UFQ) |
| 6: B78A Front Object Sensor - Left Outer (UFQ) B78A Front Object Sensor - Left Outer (UFQ)B78A Side Object Sensor - Right Front (UFQ) |
| 7: E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front T3N with T3U without 19 |
| 8: E4C Daytime Running Lamp - Left (T3N) E4C Daytime Running Lamp - Left |
| 9: B78C Front Object Sensor - Left Middle (UFQ) B78C Front Object Sensor - Left Middle (UFQ) |
| 10: B78D Front Object Sensor - Right Middle (UFQ) B78D Front Object Sensor - Right Middle (UFQ) |
| 11: E4C Daytime Running Lamp - Left (T3N) E4C Daytime Running Lamp - Left |
| 12: E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front (F69 with T3U) |
| 13: B78B Front Object Sensor - Right Outer (UFQ) B78B Front Object Sensor - Right Outer (UFQ) |
| 14: B94RF Side Object Sensor - Right Front |
| 15: E4RF Turn Signal Lamp - Right Front |
| 16: E13RA Headlamp Assembly - Right |
