Installation Procedure

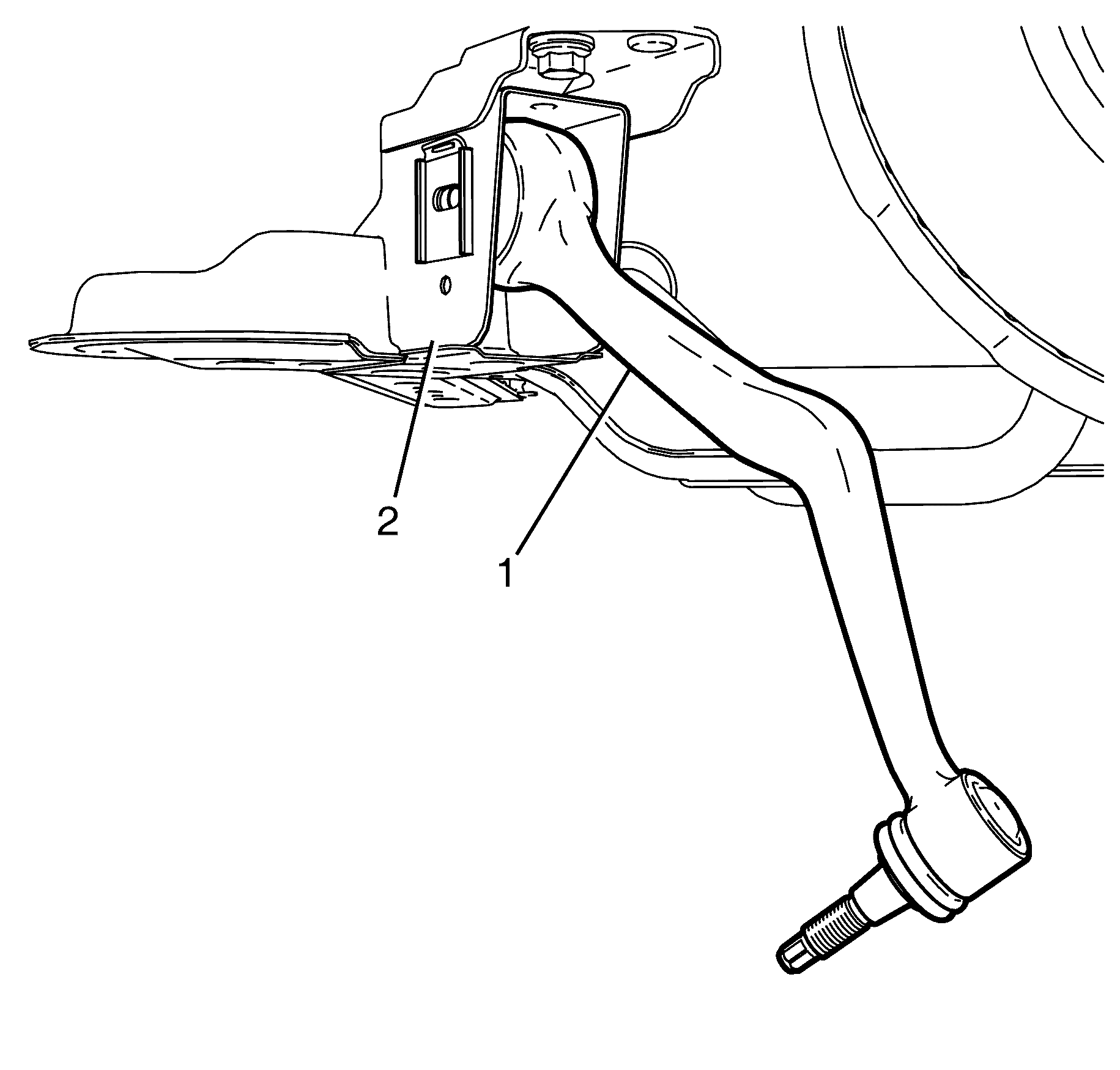

- Position the front lower control front link (1) in the drivetrain and front suspension frame (2).
- Position either the fir tree clip (3) and plate with captive nut (6) or retaining nut (4) and offset washer (5) to the drivetrain and front suspension frame.

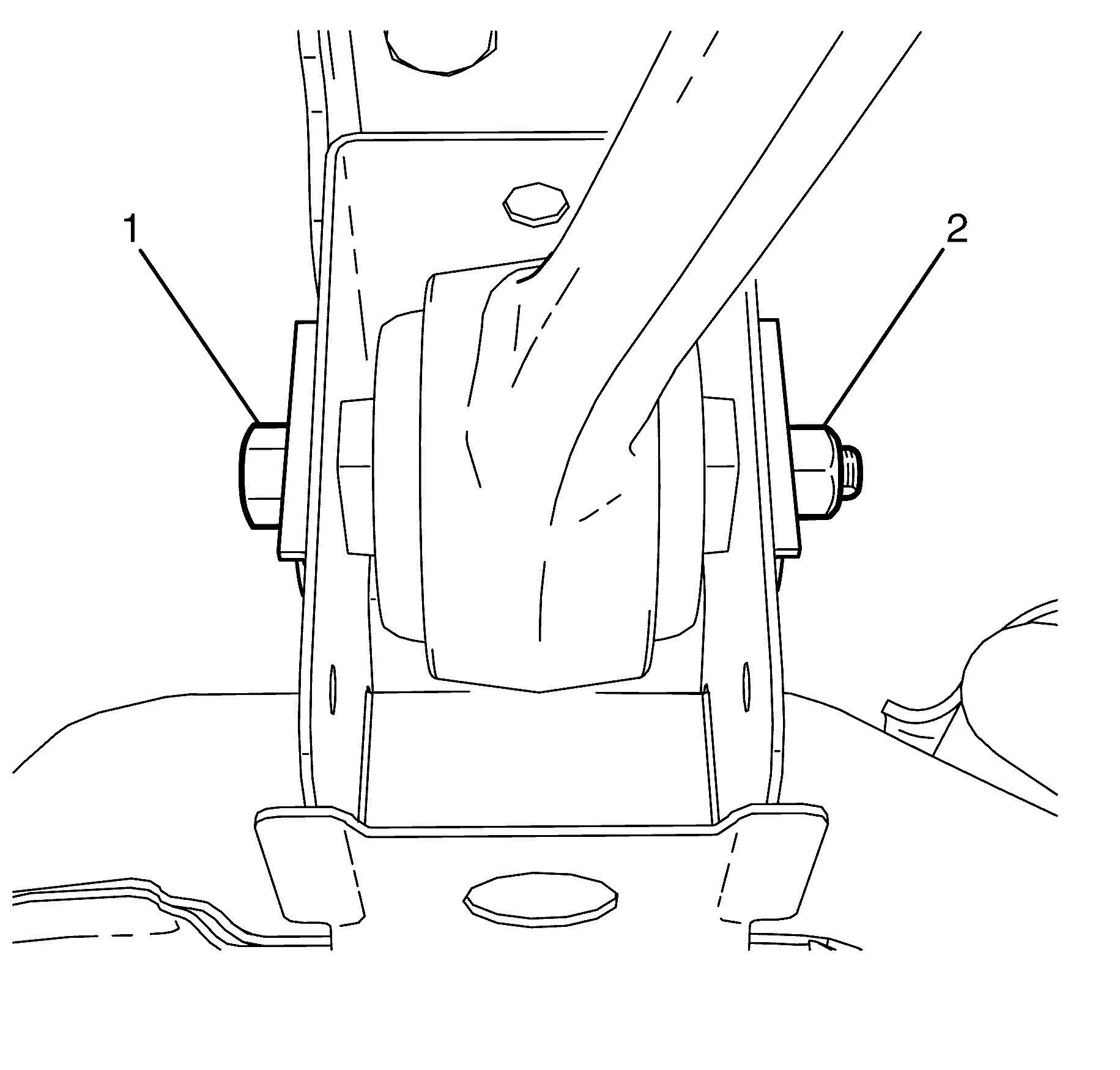

- Install the front lower control front link bolt (2) and tighten it until the fastener is snug and the front lower control front link does not shift, but do not tighten it completely.

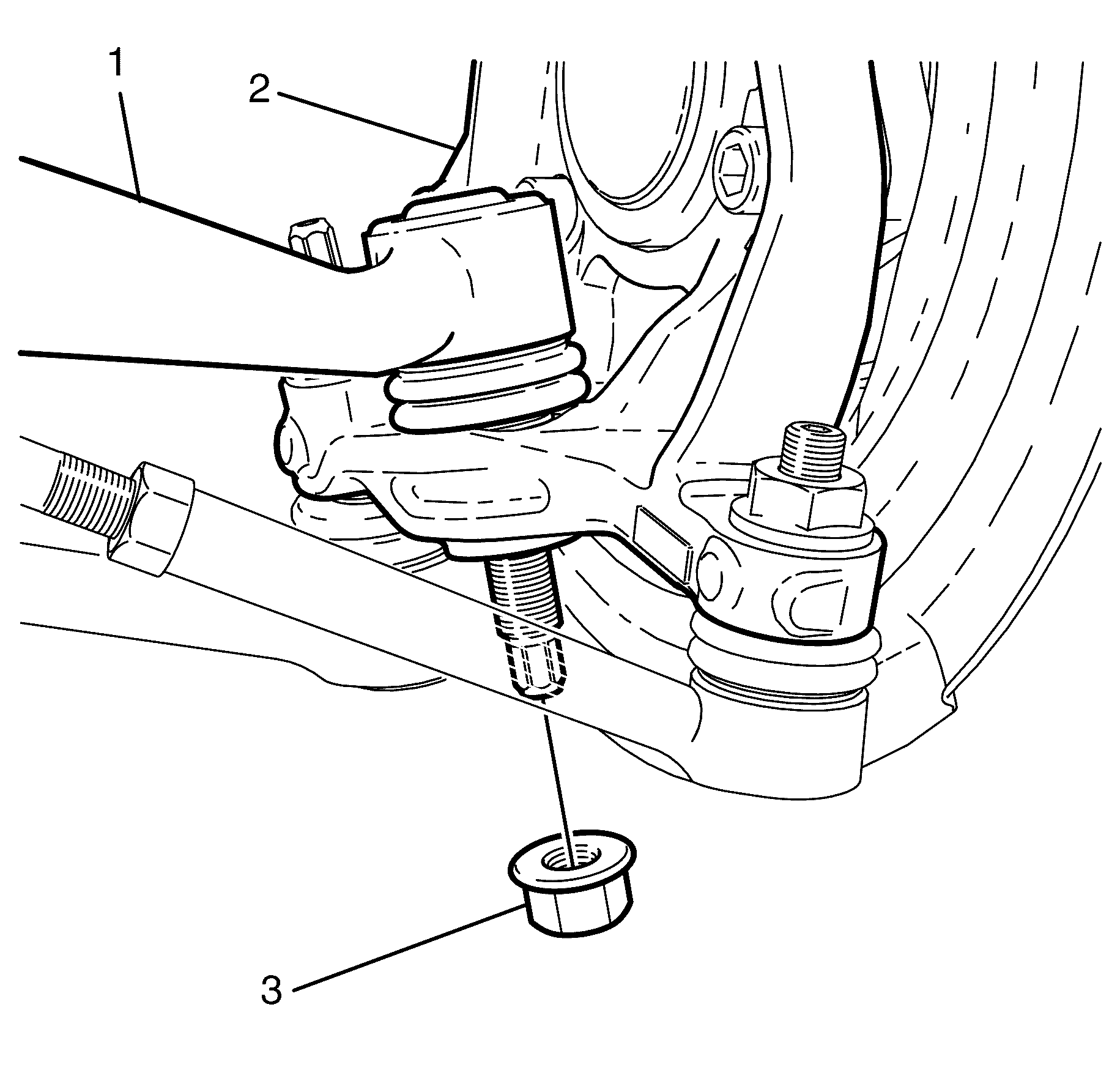

- Connect the front lower control front link (1) to the steering knuckle (2).
- Install the front lower control front link nut (3) and tighten to 50 N.m (37 lb ft) + 120 degrees.
- Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Lower the vehicle until it is resting fully on the ground.
- Bounce the vehicle several times to settle the front suspension.
- Check and adjust the front wheel alignment. Refer to Wheel Alignment Measurement .
- After the wheel alignment has been performed, tighten the front lower control front link bolt (1) to 60 N.m (44 lb ft) + 120 degrees.
NOTE:
Ensure the original offset hole position noted during removal is aligned when installing the caster control washer.
CAUTION:
Refer to Fastener Caution .
