Power, Ground, Serial Data, Antenna and Audio Input

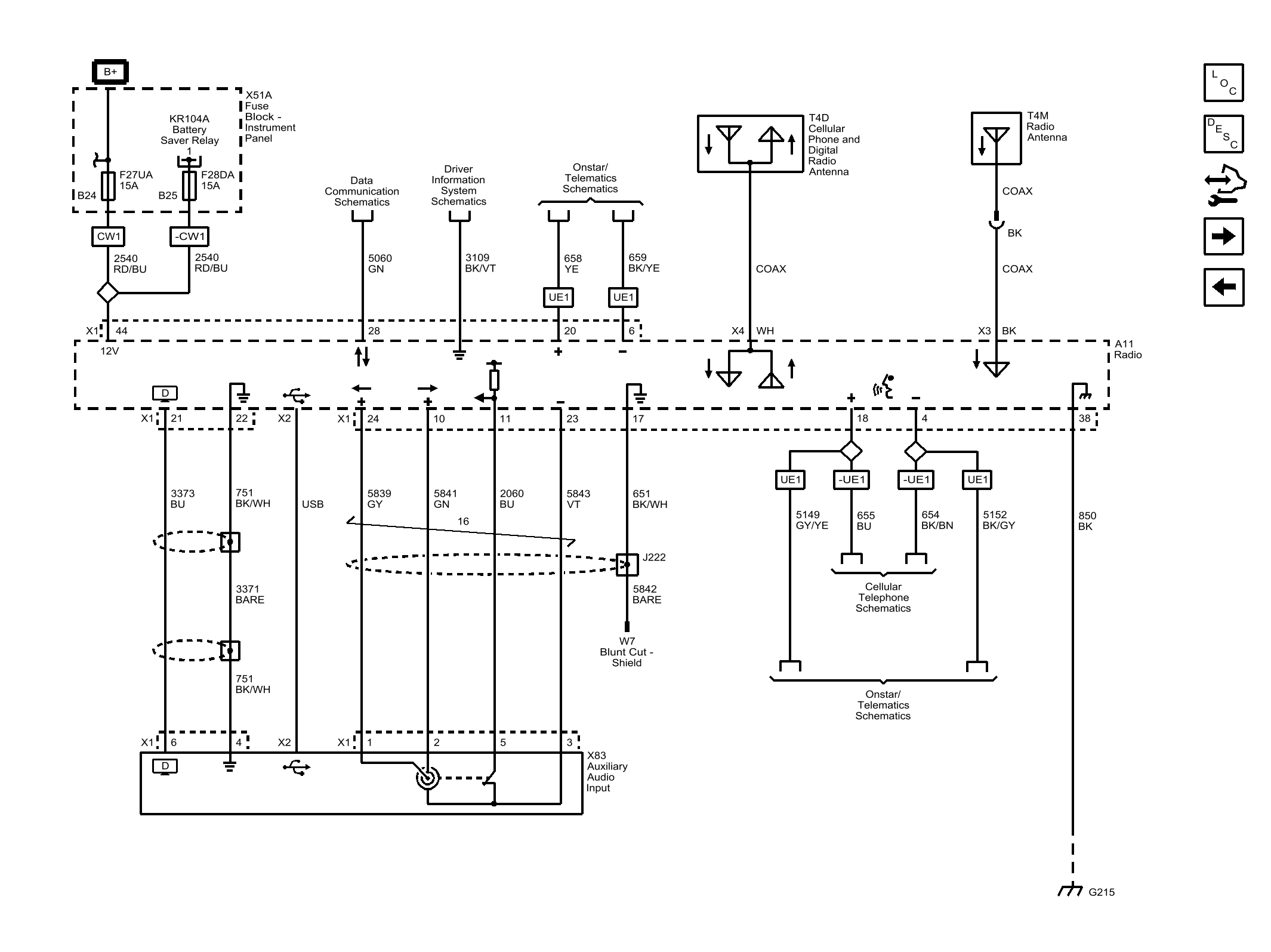

Fig 1: Power, Ground, Serial Data, Antenna and Audio Input
GM3666156Courtesy of GENERAL MOTORS COMPANY
