Installation Procedure

  1. Clean the sealing surfaces of the EBCM and the BPMV with denatured alcohol and allow to dry.
  2. Install the EBCM (1) to the BPMV.

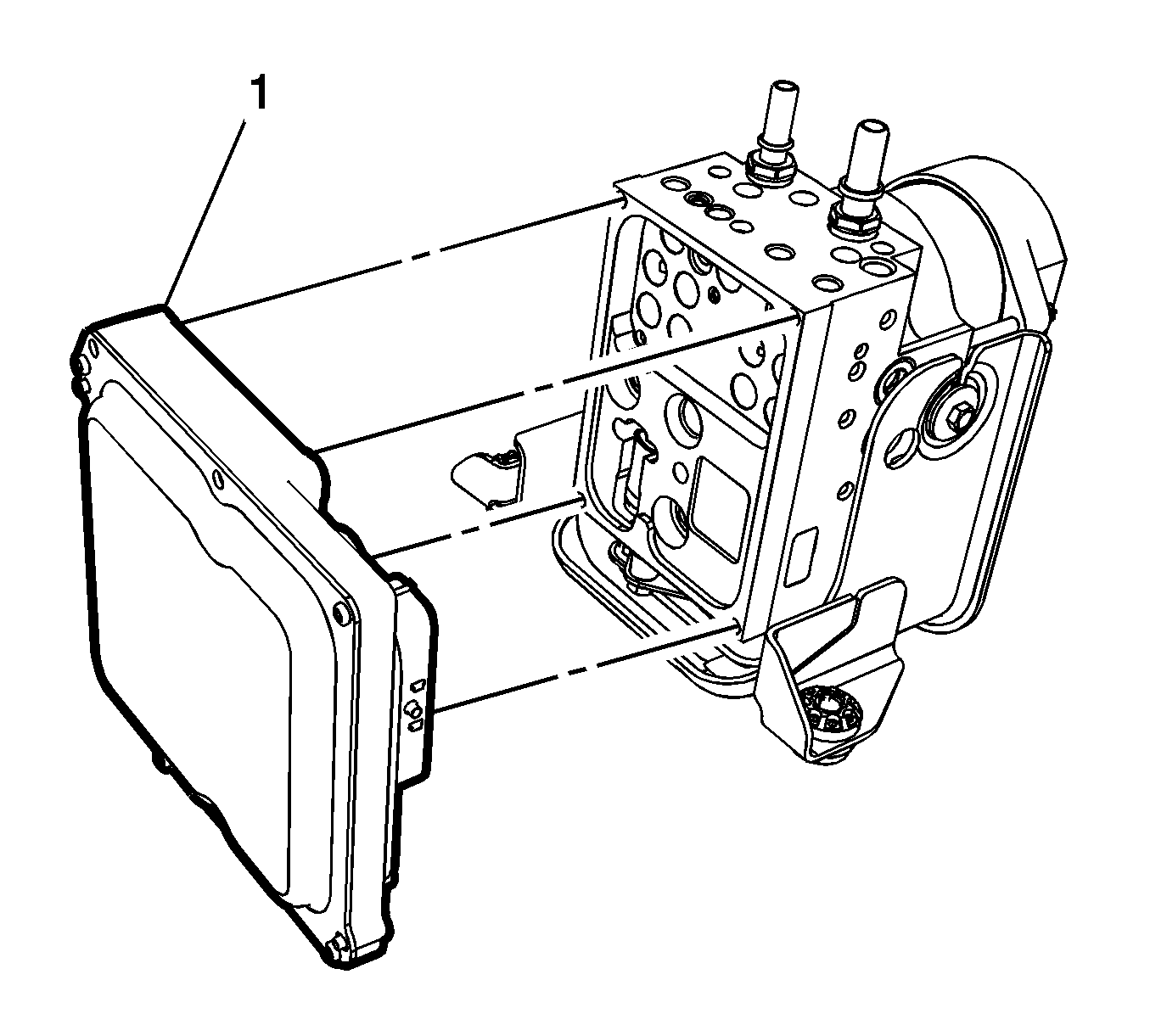

    Fig 1: EBCM And BPMV
    GM3226887Courtesy of GENERAL MOTORS COMPANY
  3. Install the EBCM bolts (1) and tighten to 3 N.m (27 lb in).

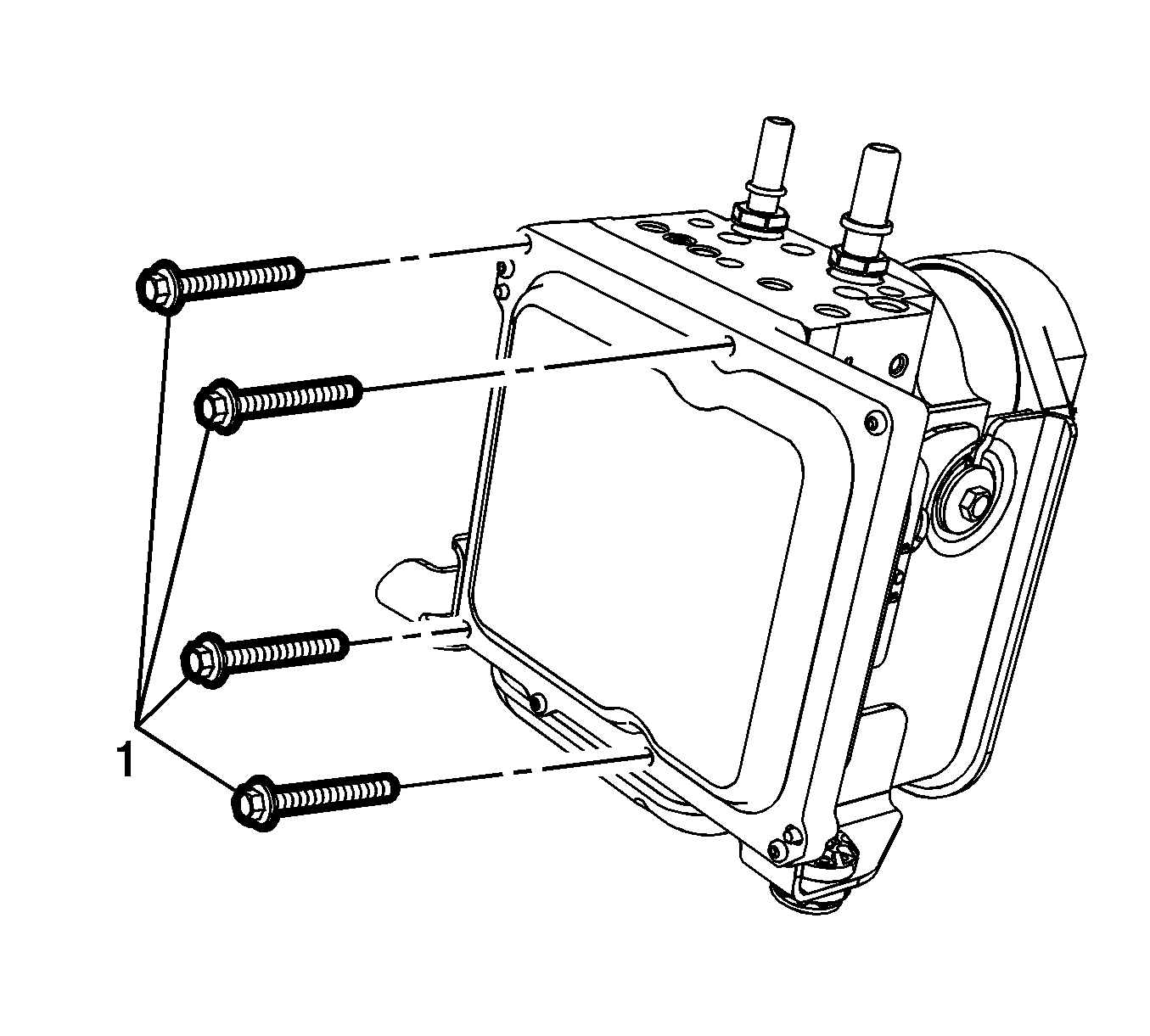

    Fig 2: Electronic Brake Control Module (EBCM) Bolts
    GM3226886Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  4. Install the BPMV assembly. Refer to Brake Pressure Modulator Valve Replacement .
  5. Program the EBCM. Refer to Electronic Brake Control Module Programming and Setup .
