Installation Procedure

  1. Install the BPMV assembly (1) to the bracket.

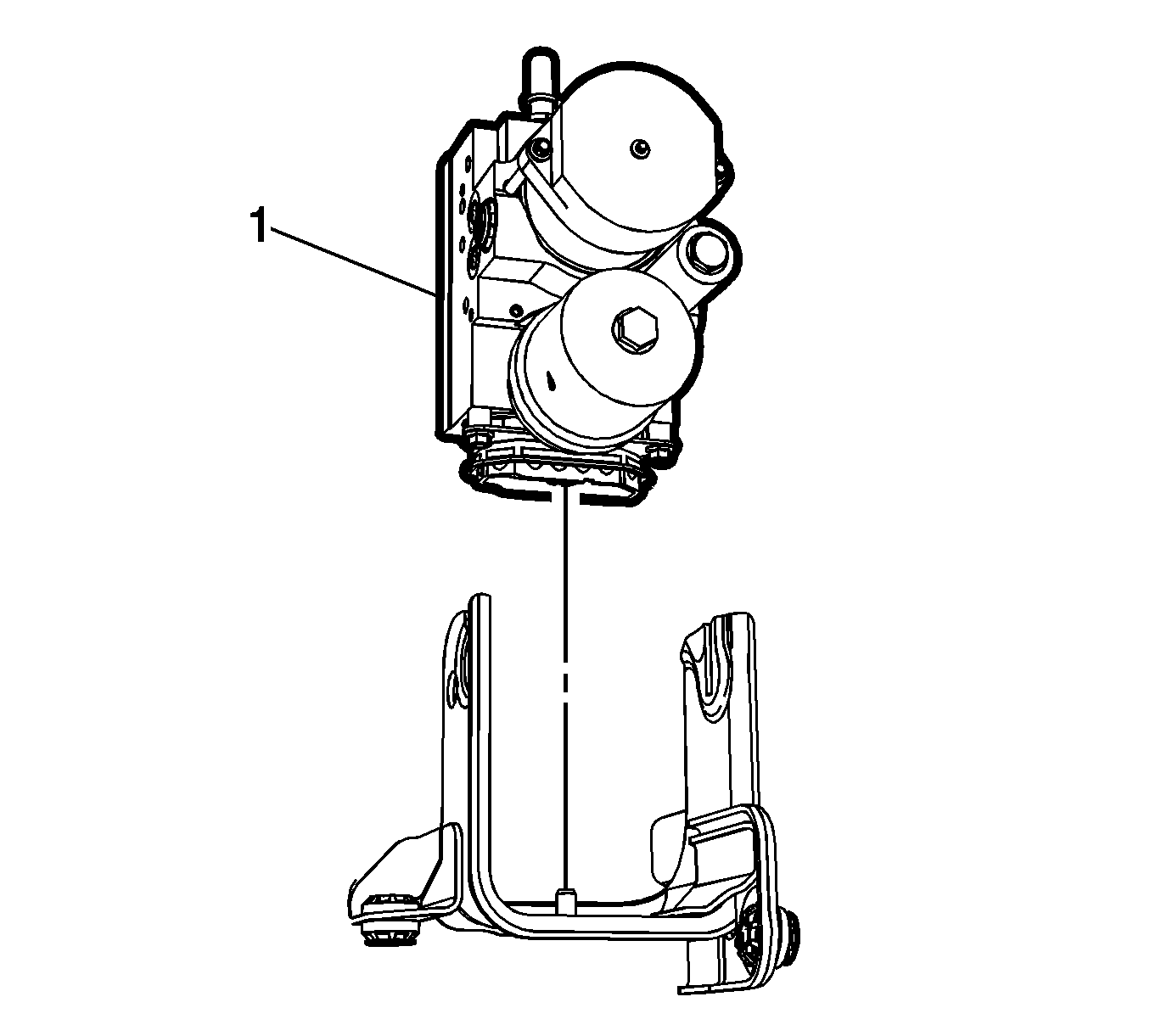

    Fig 1: BPMV Assembly
    GM3227185Courtesy of GENERAL MOTORS COMPANY
  2. Install the BPMV bolts (1) and tighten to 8 N.m (71 lb in).

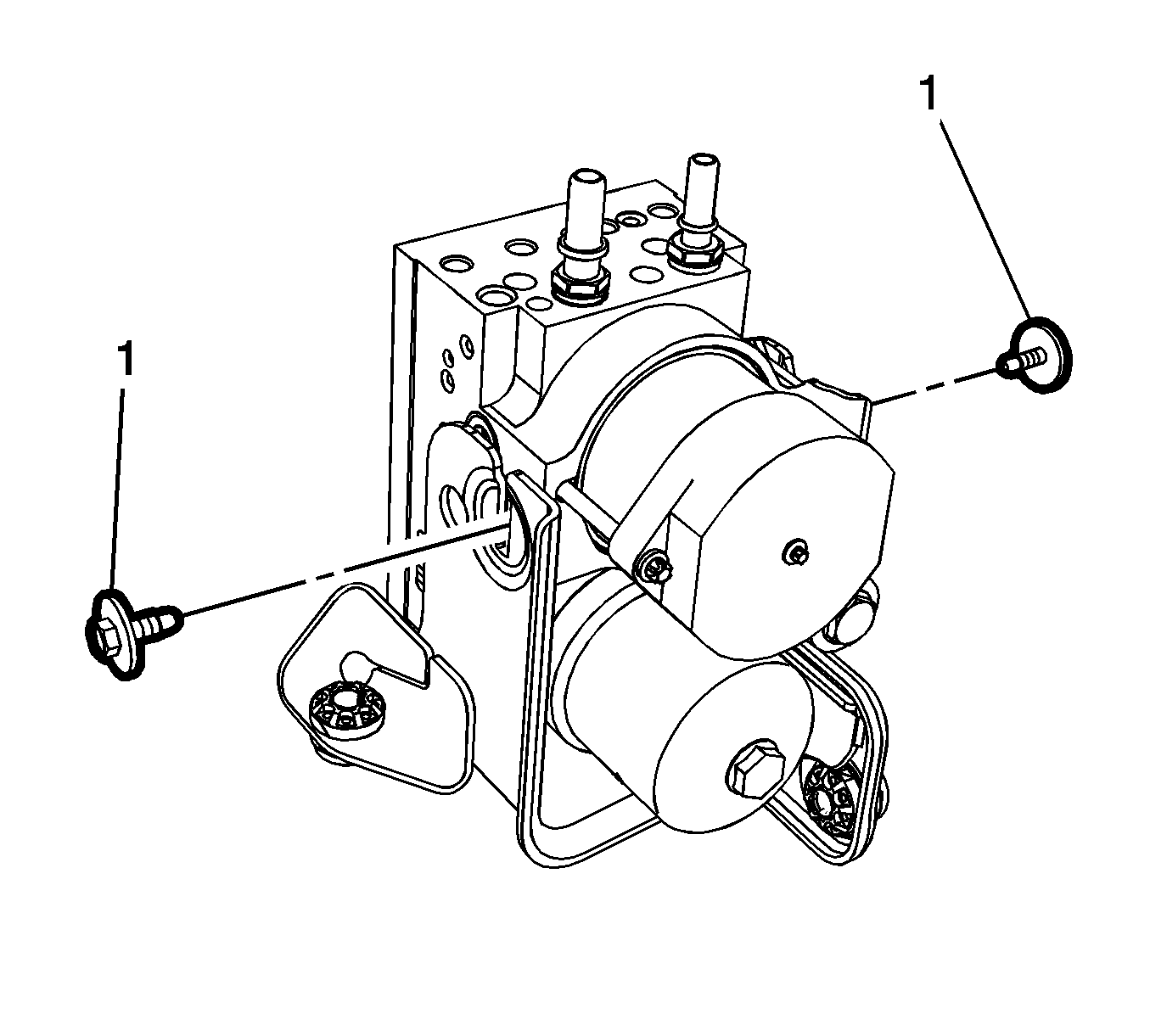

    Fig 2: BPMV Bolts
    GM3227182Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  3. Install the BPMV assembly. Refer to Brake Pressure Modulator Valve Replacement .
