Installation Procedure

  1. Install the wheel speed sensor to the steering knuckle.

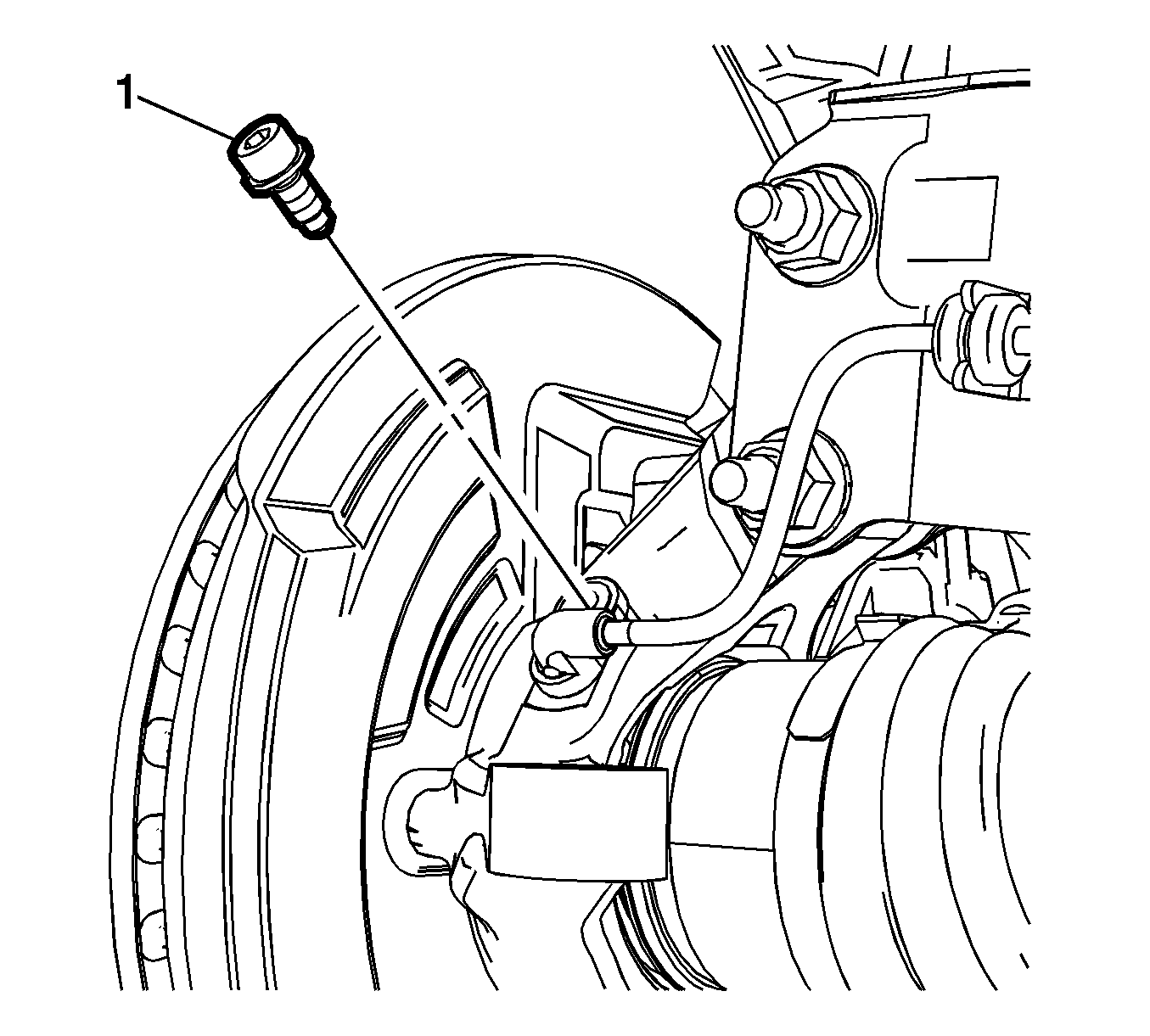

    Fig 1: Wheel Speed Sensor Bolt
    GM3227626Courtesy of GENERAL MOTORS COMPANY
  2. Install the wheel speed sensor bolt (1) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
  3. Install the front wheel speed sensor harness grommet (1) to the strut bracket.

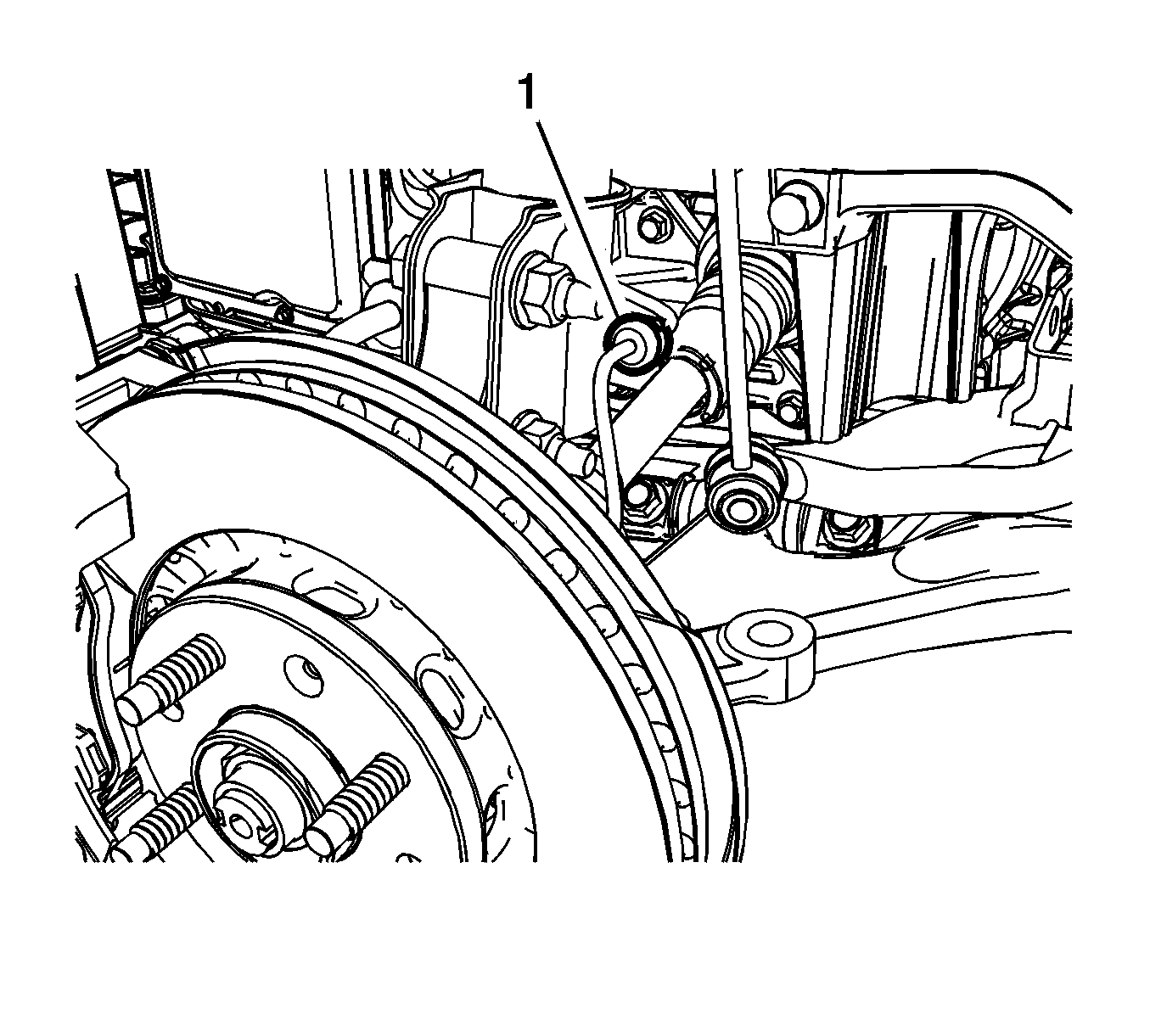

    Fig 2: Front Wheel Speed Sensor Harness Grommet
    GM3227624Courtesy of GENERAL MOTORS COMPANY
  4. Install the wheel speed sensor harness clips (1) to the left front brake pipe.

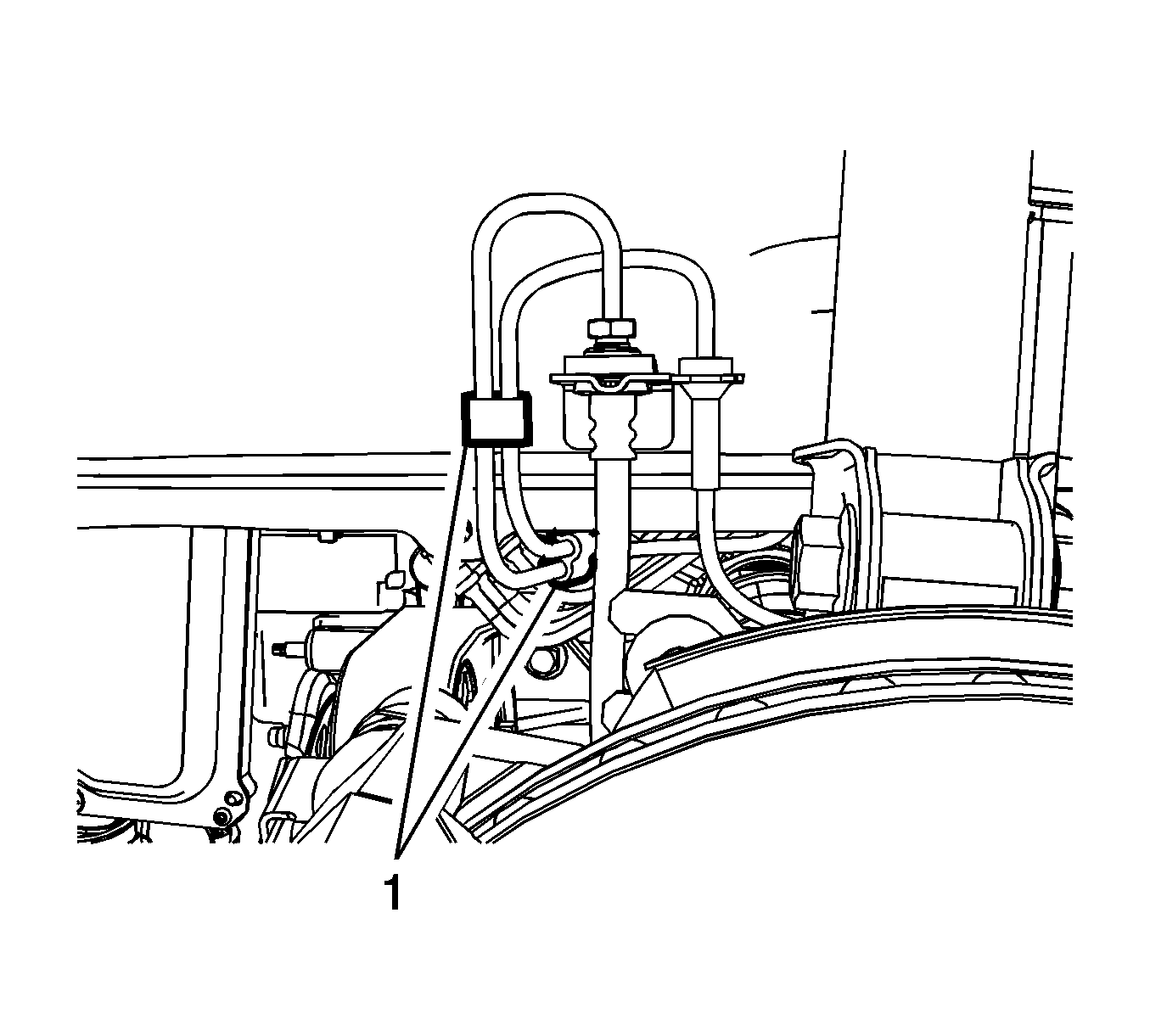

    Fig 3: Wheel Speed Sensor Harness Clips
    GM3223073Courtesy of GENERAL MOTORS COMPANY
  5. Connect the wheel speed sensor electrical connector (1) and install the connector to the front compartment side rail.

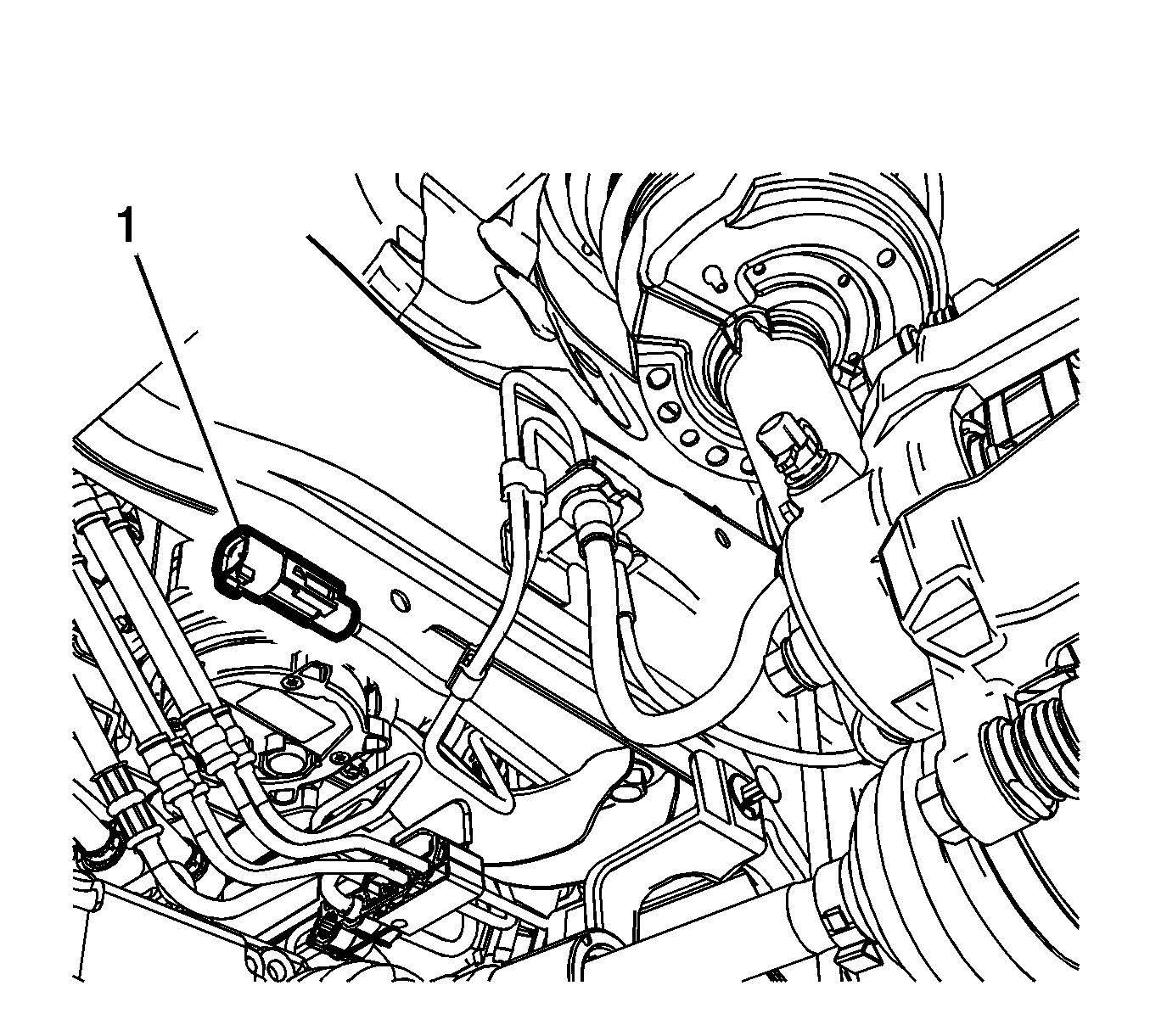

    Fig 4: Wheel Speed Sensor Electrical Connector
    GM3227623Courtesy of GENERAL MOTORS COMPANY
  6. Install the front compartment front splash shield. Refer to Front Compartment Splash Shield Replacement (Front) , Front Compartment Splash Shield Replacement (Middle) and Front Compartment Splash Shield Replacement (Rear) .
  7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  8. Perform the Diagnostic System Check - Vehicle .
