Vehicle Stability Control System Switch Replacement

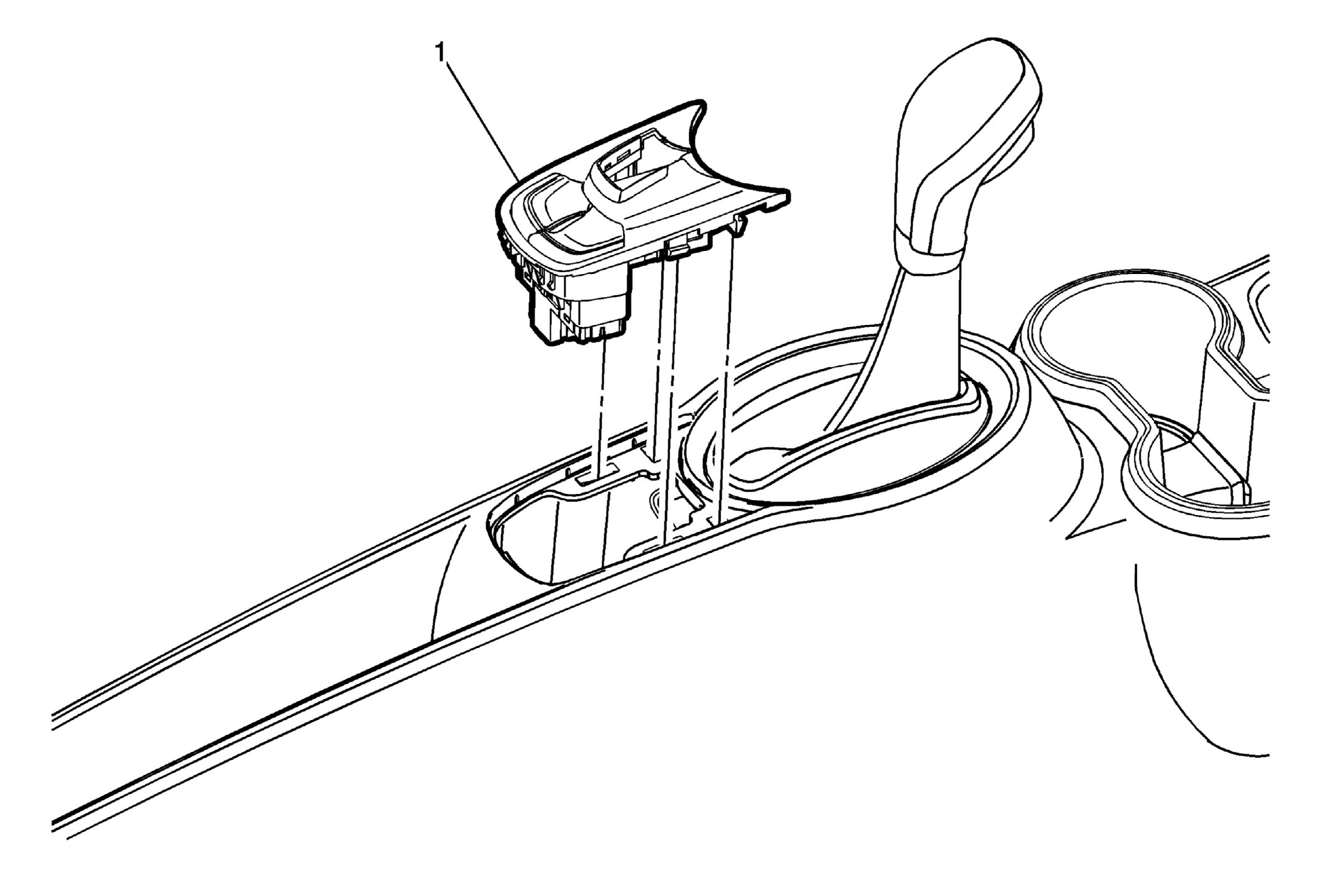

Fig 1: Vehicle Stability Control System Switch
GM3212636Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front floor console. Refer to Front Floor Console Replacement .
1 Vehicle Stability Control System Switch

Procedure

  1. Using the appropriate tool depress the tabs on the switch and gently remove.
  2. Disconnect the electrical connector.
