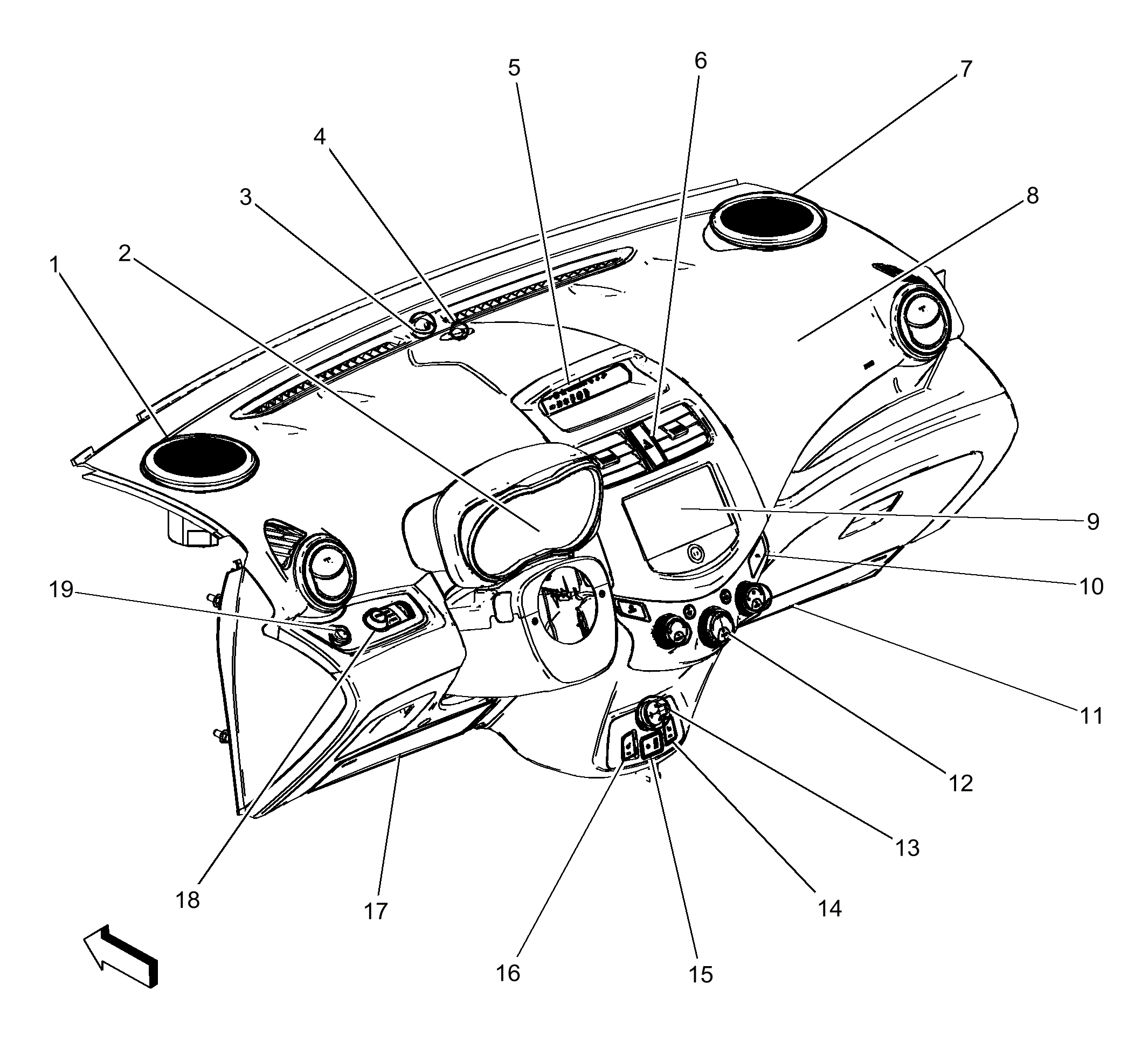

Front of Instrument Panel Components
Front of Instrument Panel Components
| Items |
|---|
| 1: P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel |
| 2: P16 Instrument Cluster P16 Instrument Cluster |
| 3: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 4: P36 Battery State of Charge Indicator P36 Battery State of Charge Indicator |
| 5: P17 Info Display Module P17 Info Display Module |
| 6: S26 Hazard Warning Switch S26 Hazard Warning Switch |
| 7: P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel |
| 8: F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air BagF101 Passenger Instrument Panel Air Bag X2 |
| 9: A11 Radio A11 Radio X1A11 Radio X2A11 Radio X3A11 Radio |
| 10: S126 Drive Mode Select Switch S126 Drive Mode Select Switch |
| 11: F114P Knee Air Bag - Passenger (AYF) F114P Knee Air Bag - Passenger |
| 12: A26 HVAC Controls A26 HVAC Controls |
| 13: X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel |
| 14: S32P Seat Heating Switch - Passenger S32P Seat Heating Switch - Passenger |
| 15: X83 Auxiliary Audio Input X83 Auxiliary Audio Input |
| 16: S32D Seat Heating Switch - Driver S32D Seat Heating Switch - Driver |
| 17: F114D Knee Air Bag - Driver (AYF) F114D Knee Air Bag - Driver |
| 18: S16 Driver Information Center Switch S16 Driver Information Center Switch |
| 19: S52 Outside Rearview Mirror Switch S52 Outside Rearview Mirror Switch |
