Installation Procedure

Install the new weatherstrip to the windshield.

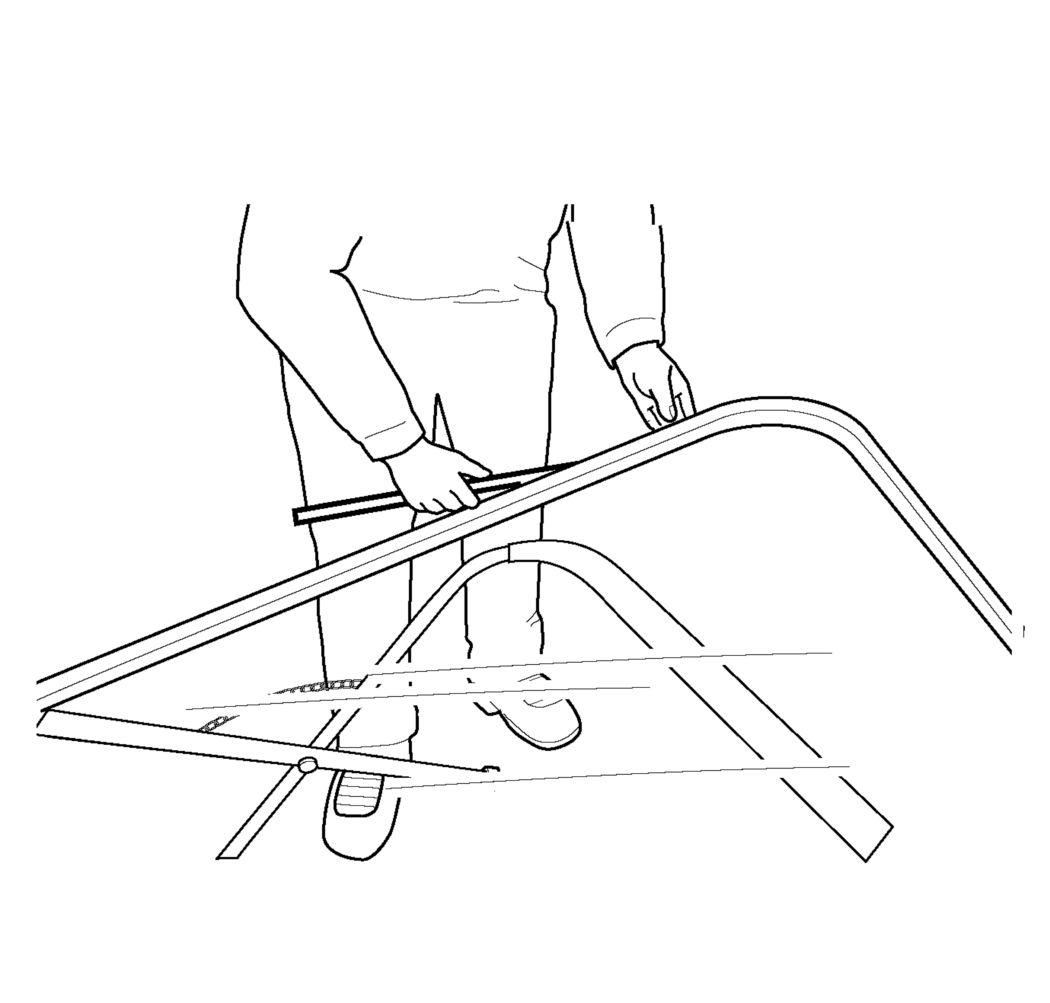

Fig 1: Installing New Weatherstrip To Windshield
Courtesy of GENERAL MOTORS COMPANY
Apply tape to the new weatherstrip and the windshield to hold the weatherstrip in place.

Fig 2: Applying Tape To New Weatherstrip And Windshield
Courtesy of GENERAL MOTORS COMPANY

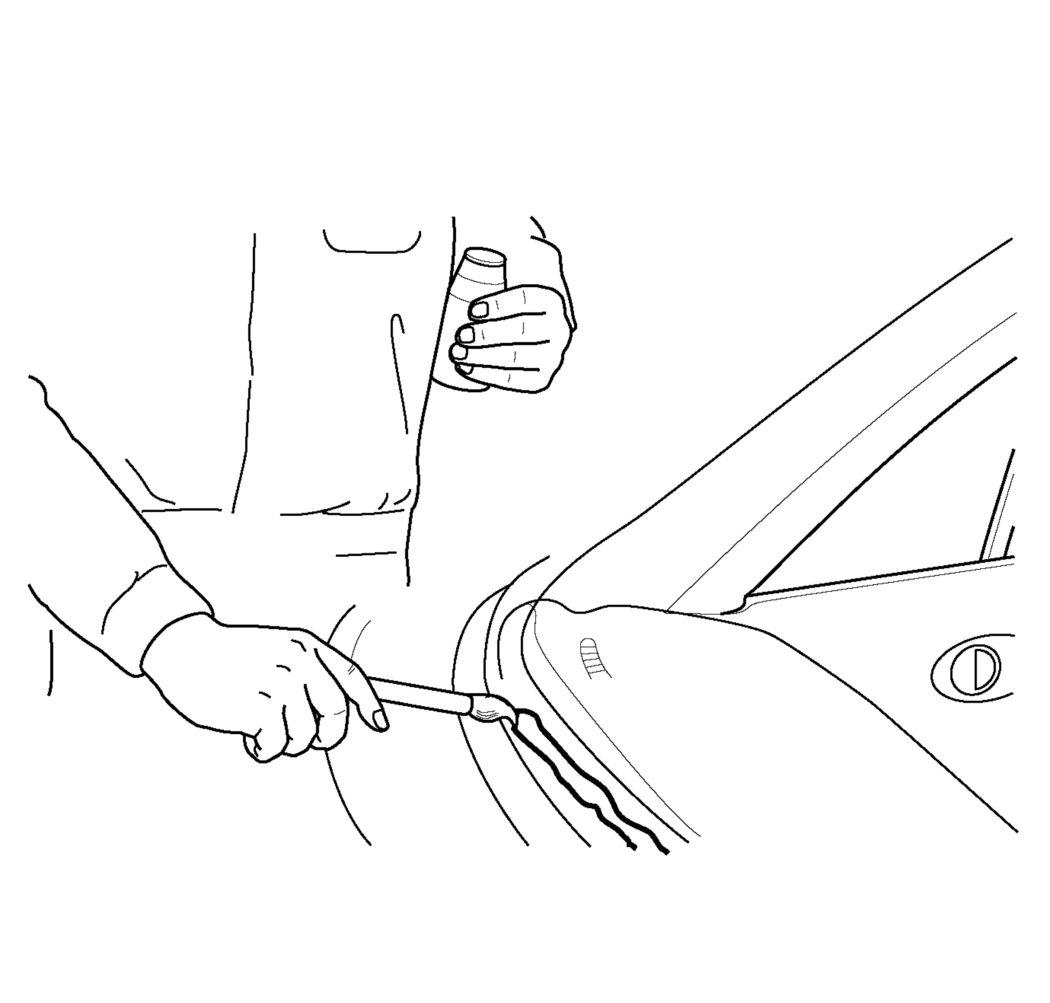

Apply adhesive primer to the windshield frame and the perimeter of the windshield.
Apply glass adhesive to the windshield frame.

Fig 3: Applying Adhesive Primer To Windshield Frame
Courtesy of GENERAL MOTORS COMPANY
WARNING:
Insufficient curing of urethane adhesive may allow unrestrained occupants to be ejected from the vehicle resulting in personal injury.
- For the moisture-curing type of urethane adhesive, allow a minimum of 6 hours at 21°C (70°F) or greater and with at least 30 percent relative humidity. Allow at least 24 hours for the complete curing of the urethane adhesive.
- For the chemical-curing type of urethane adhesive, allow a minimum of 1 hour.
Do NOT physically disturb the repair area until after these minimum times have elapsed.
Install the windshield into the windshield frame.

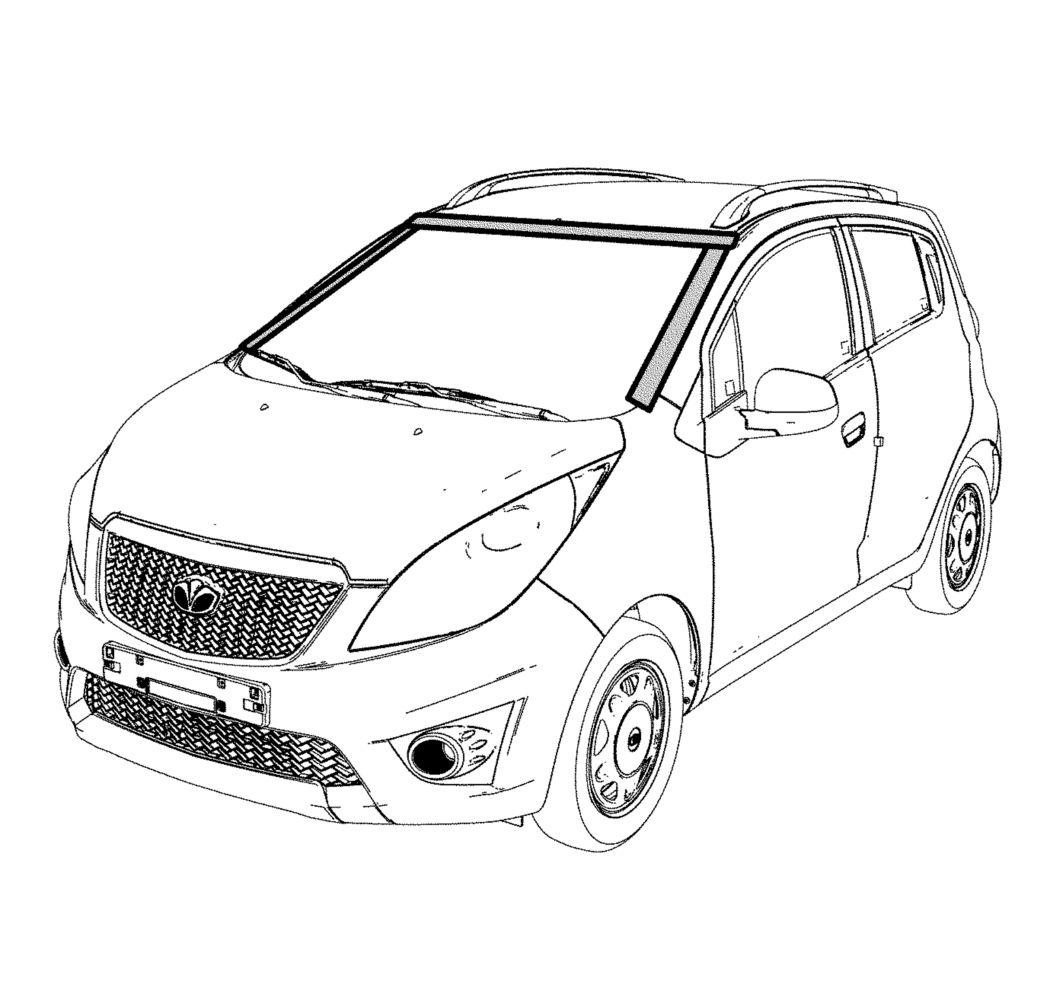

Fig 4: Windshield And Windshield Frame
Courtesy of GENERAL MOTORS COMPANY
Reposition the tape over the weatherstrip, the windshield and the windshield frame to hold the windshield in place.
Let the adhesive dry for 24 hours.
Remove the tape.
Inspect for water leaks by pouring water on the windshield. If a leak is found, dry the windshield and fill the area that leaks with adhesive. If the leak persists, remove the windshield and repeat the entire procedure.

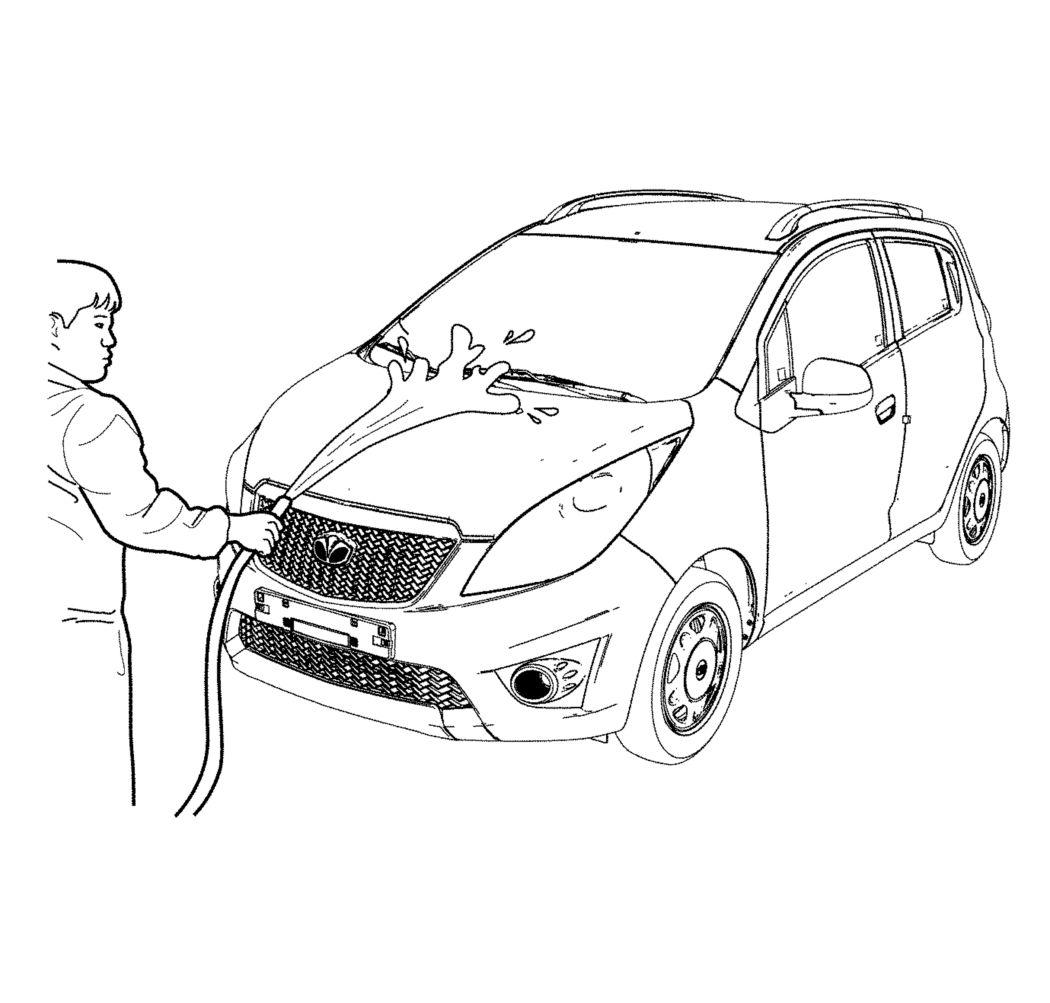

Fig 5: Inspecting For Water Leaks
Courtesy of GENERAL MOTORS COMPANY
Install the inside rearview mirror. Refer to Inside Rearview Mirror Replacement .
Install the air inlet grille. Refer to Air Inlet Grille Panel Replacement .
