Removal Procedure

Remove the air inlet grille. Refer to Air Inlet Grille Panel Replacement .

Fig 1: Removing Air Inlet Grille
Courtesy of GENERAL MOTORS COMPANY

WARNING: Refer to Defroster Outlet Warning .
Remove the inside rearview mirror. Refer to Inside Rearview Mirror Replacement .

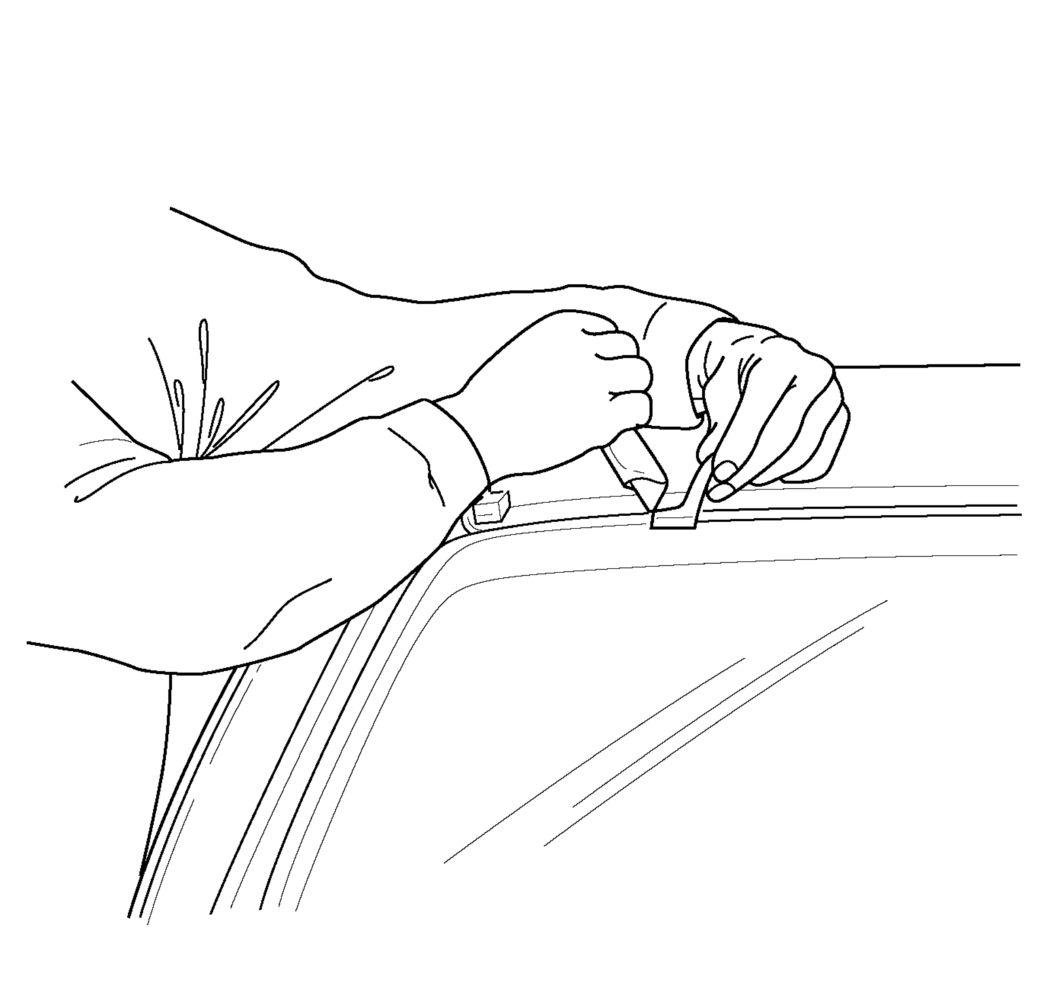

Remove the weatherstrip around the windshield.

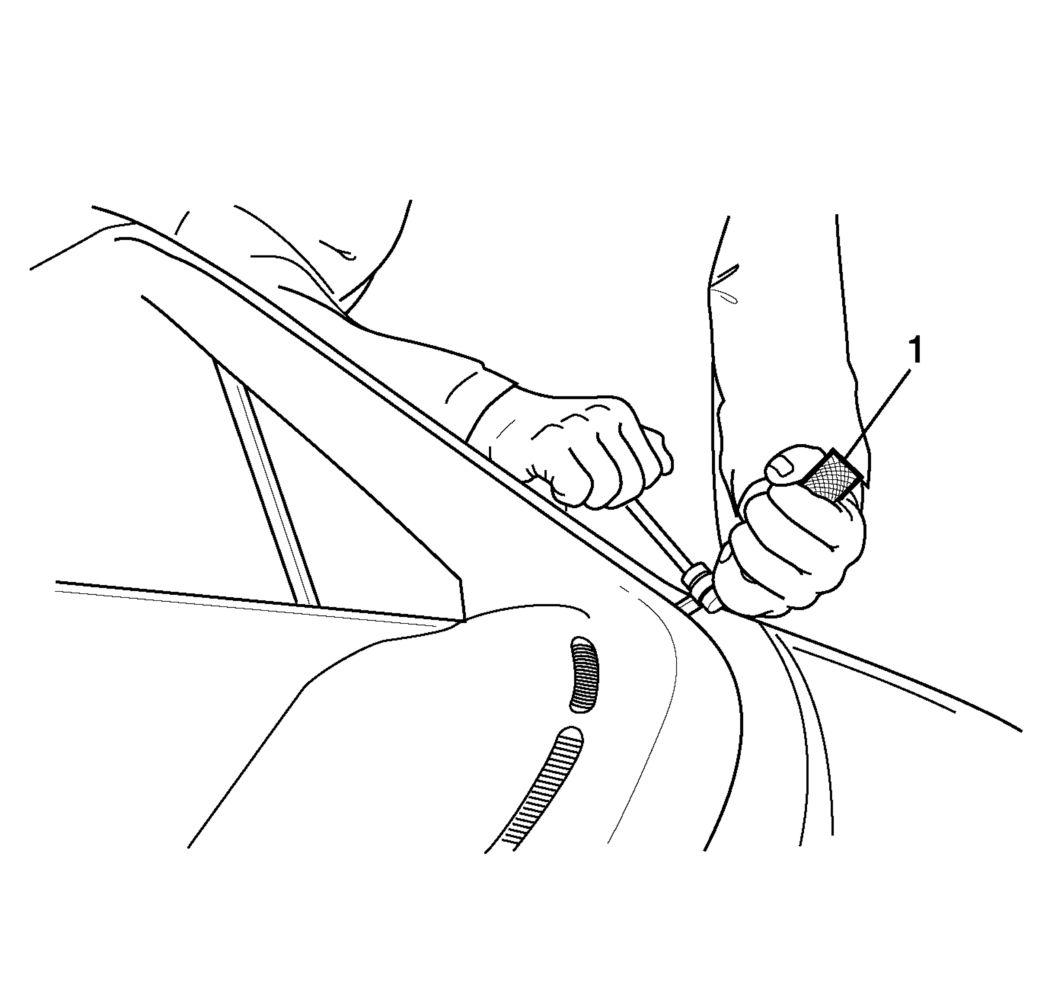

Using the J-24402 glass sealant remover (1), cut the adhesive around the windshield.

Fig 2: Cutting Adhesive Around Windshield Using J-24402
Courtesy of GENERAL MOTORS COMPANY

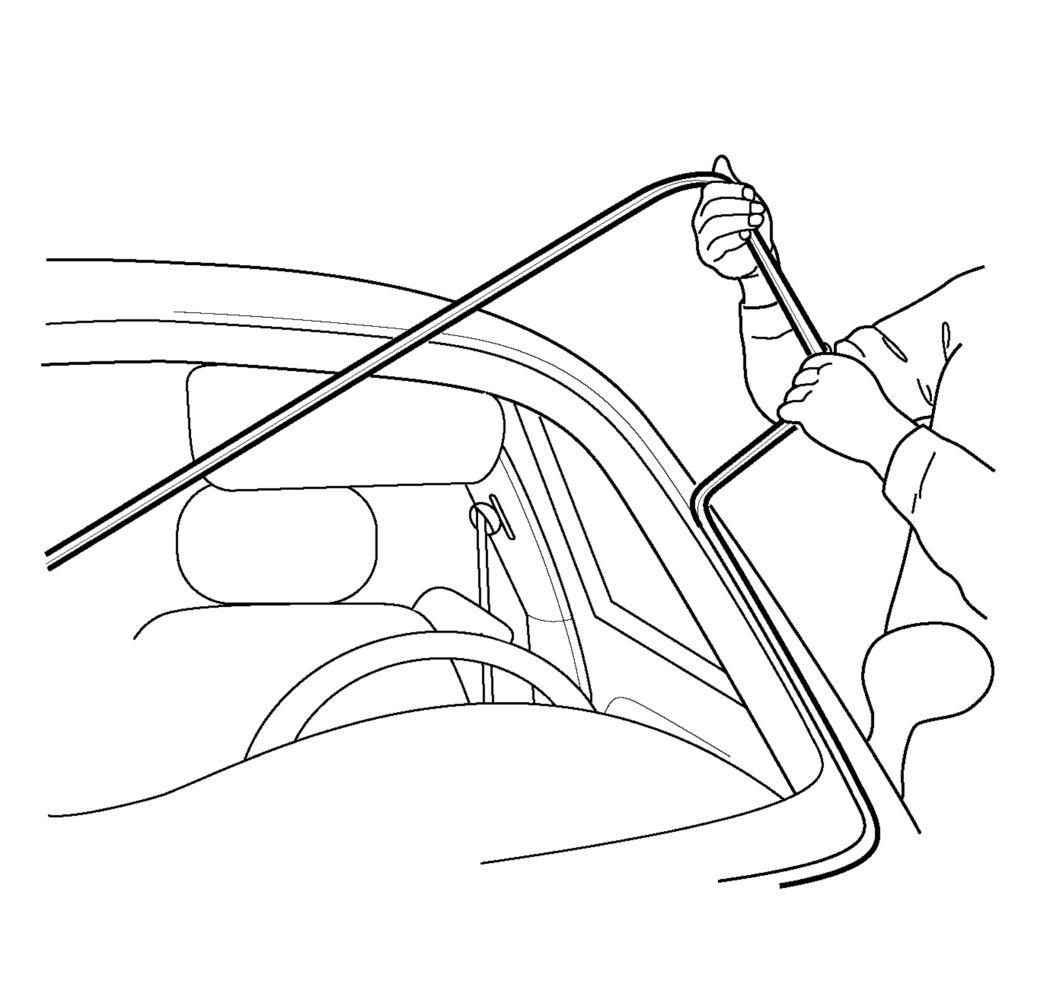

Remove the windshield from the vehicle.

Fig 3: Removing Windshield From Vehicle
Courtesy of GENERAL MOTORS COMPANY
Using a knife, remove the adhesive from the windshield.
