Cruise Control Switch Replacement (Chevrolet/GMC)

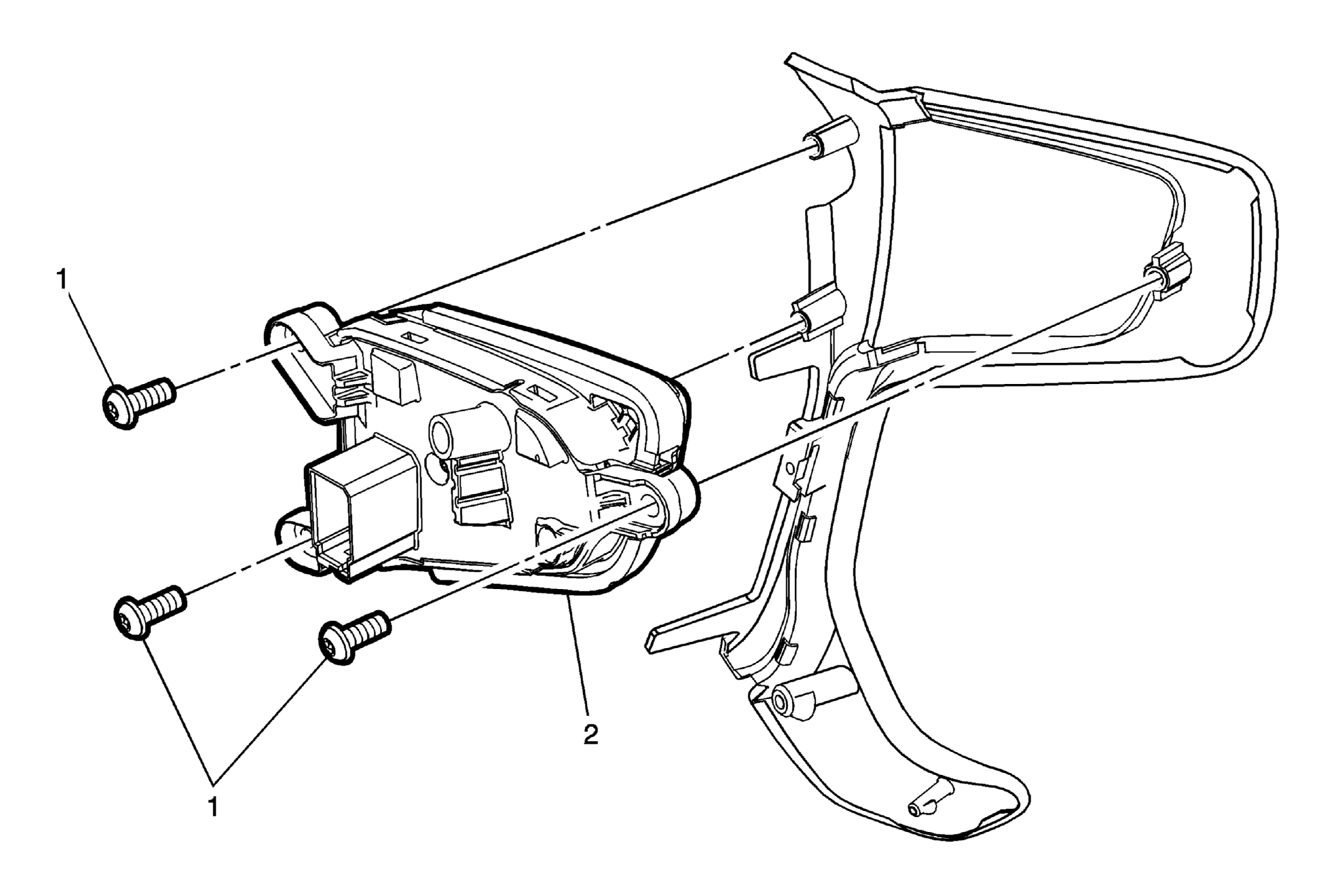

Fig 1: Cruise Control Switch
GM3256792Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the steering wheel spoke cover. Refer to Steering Wheel Spoke Cover Replacement (LH with Cruise Control Switch)Steering Wheel Spoke Cover Replacement (RH with Radio Control Switch) .
1 Steering Wheel Spoke Cover Fasteners (Qty: 3)
CAUTION:

Refer to Fastener Caution .

2 Cruise Control Switch
