Comprehensive Safety - Power, Ground, Serial Data, and Multifunction Switch (UGN and Z75)

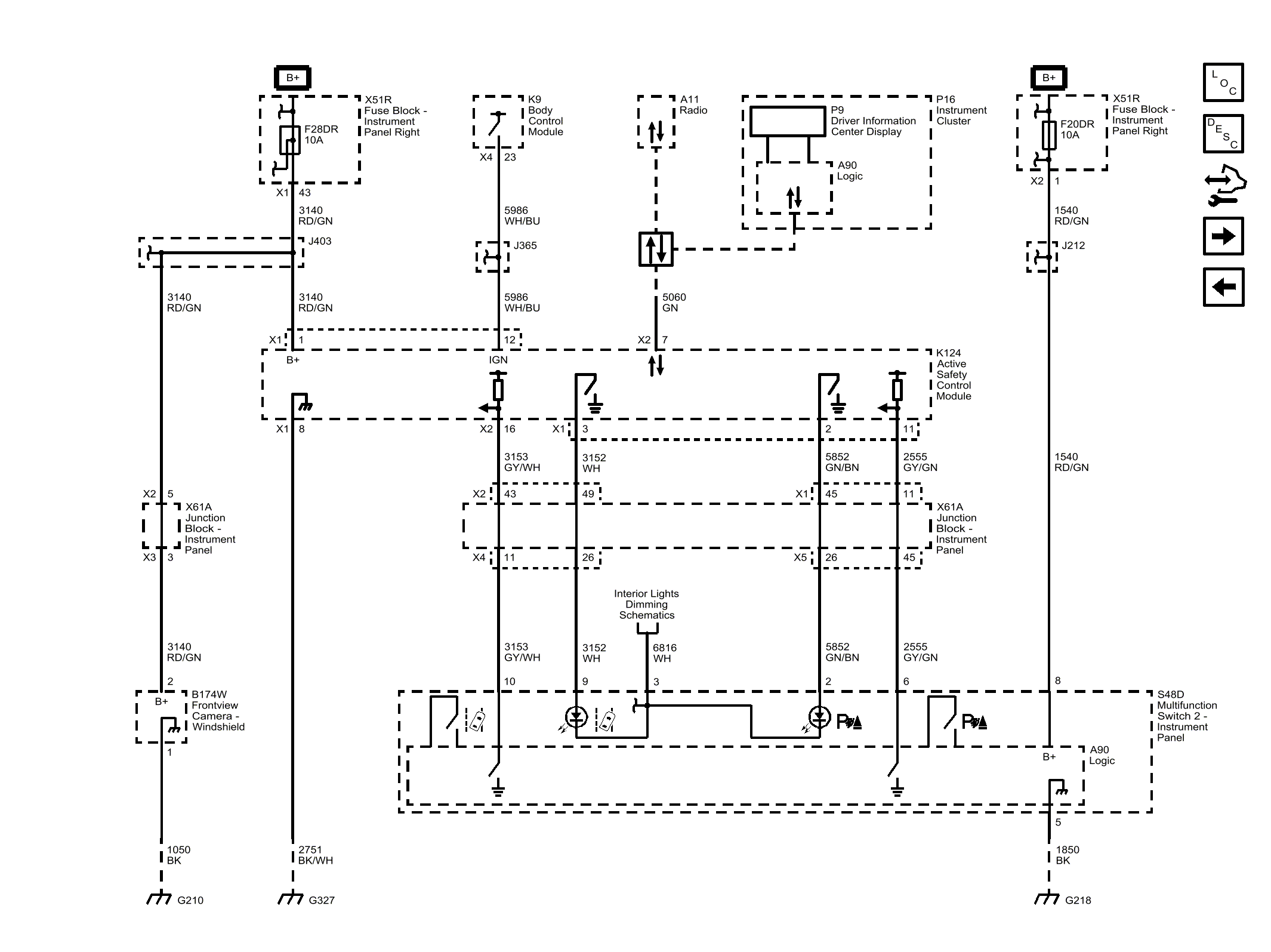

Fig 1: Comprehensive Safety - Power, Ground, Serial Data, and Multifunction Switch (UGN and Z75)
GM3636969Courtesy of GENERAL MOTORS COMPANY
