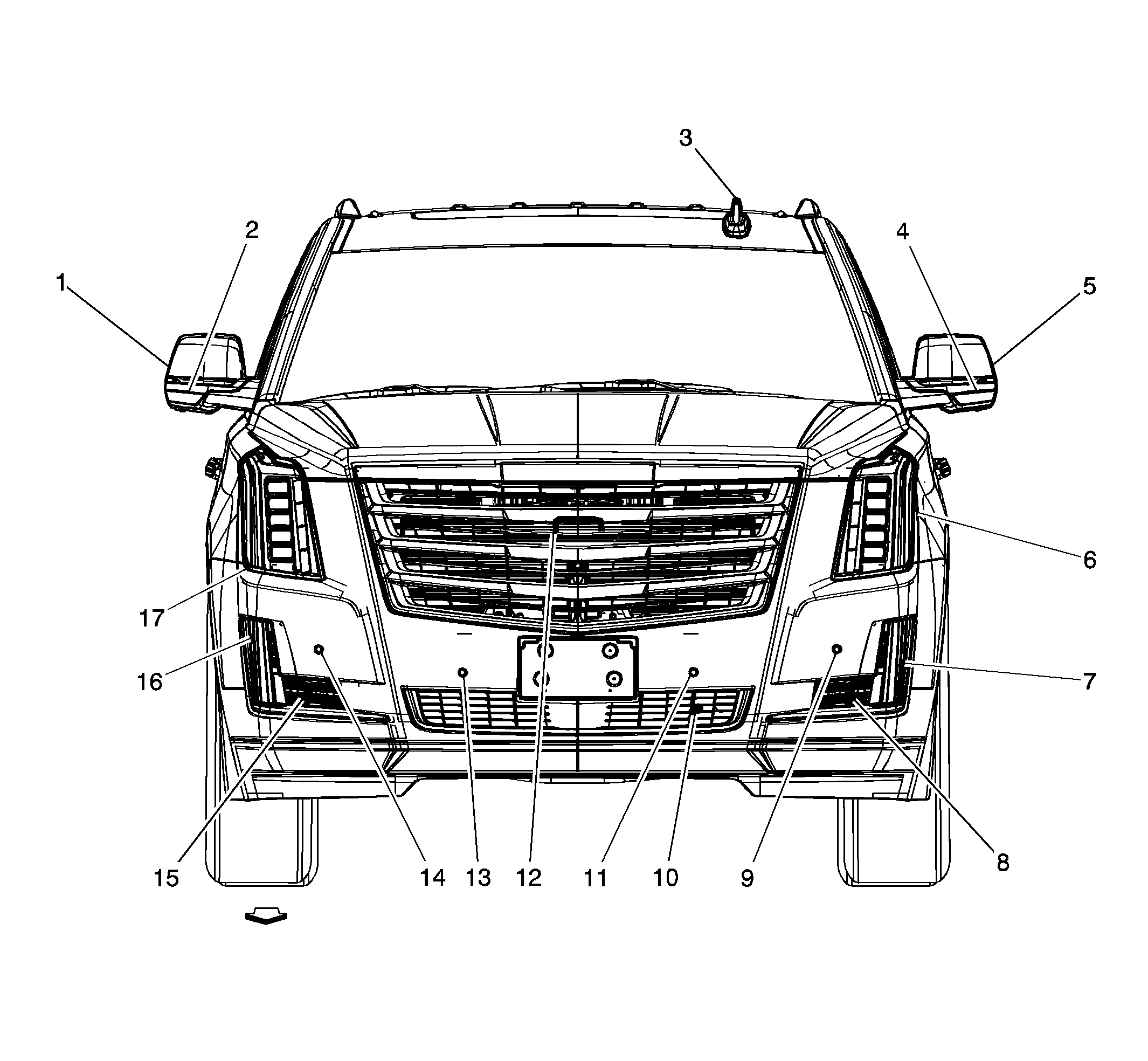

Front of Vehicle Components (Z75)
Front of Vehicle Components (Z75)
| Items |
|---|
| 1: A9B Outside Rearview Mirror - Passenger |
| 2: E8YP Outside Rearview Mirror Courtesy Lamp - Passenger (DL3) E8YP Outside Rearview Mirror Courtesy Lamp - Passenger (DL3) |
| 3: T4G Cellular Phone, Navigation, and Digital Radio Antenna T4G Cellular Phone, Navigation, and Digital Radio Antenna X1 (IO6 with UE1 without CV3)T4G Cellular Phone, Navigation, and Digital Radio Antenna X3 (CV3 with UE1)T4G Cellular Phone, Navigation, and Digital Radio Antenna X3 (IO6 without CV3)T4G Cellular Phone, Navigation, and Digital Radio Antenna X4 (U2M) |
| 4: E8YD Outside Rearview Mirror Courtesy Lamp - Driver (DL3) E8YD Outside Rearview Mirror Courtesy Lamp - Driver (DL3) |
| 5: A9A Outside Rearview Mirror - Driver |
| 6: E13LA Headlamp Assembly - Left |
| 7: E4AL Park/Daytime Running Lamp - Left Lower (Z75) |
| 8: E4LF Turn Signal Lamp - Left Front (Z75) E4LF Turn Signal Lamp - Left Front (Z75) |
| 9: B78A Front Object Sensor - Left Outer (UD5) B78A Front Object Sensor - Left Outer |
| 10: B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor |
| 11: B78C Front Object Sensor - Left Middle (UD5) B78C Front Object Sensor - Left Middle |
| 12: B233B Radar Sensor Module - Long Range (UVZ without AVF) B233B Radar Sensor Module - Long Range |
| 13: B78D Front Object Sensor - Right Middle (UD5) B78D Front Object Sensor - Right Middle |
| 14: B78B Front Object Sensor - Right Outer (UD5) B78B Front Object Sensor - Right Outer |
| 15: E4RF Turn Signal Lamp - Right Front (X88 or Z88) E4RF Turn Signal Lamp - Right Front (Z75) |
| 16: E4AM Park/Daytime Running Lamp - Right Lower (Z75) |
| 17: E13RA Headlamp Assembly - Right |
