Installation Procedure

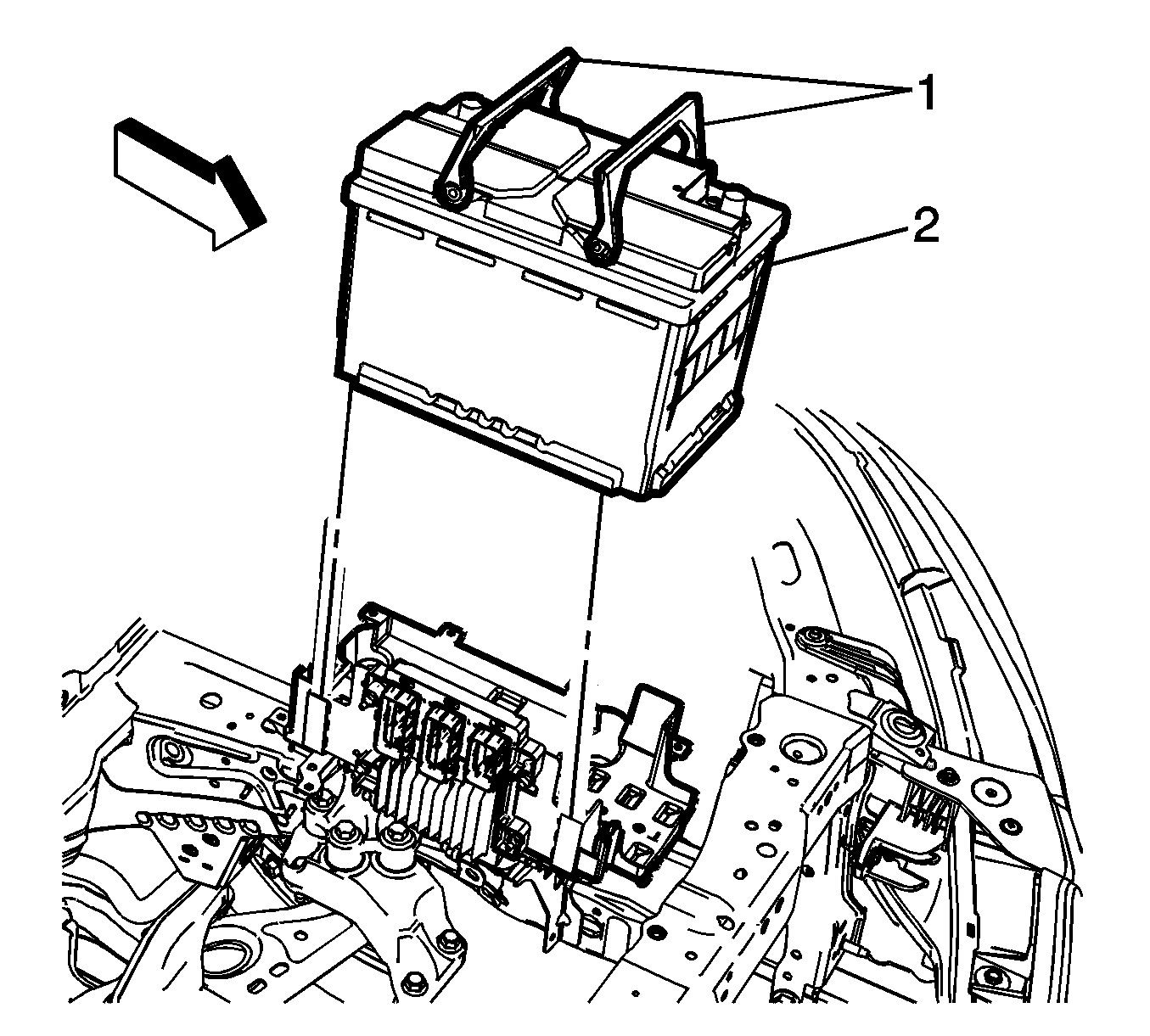

    Fig 1: Battery
    GM2776007Courtesy of GENERAL MOTORS COMPANY
  1. Install the battery (2) into the battery tray.

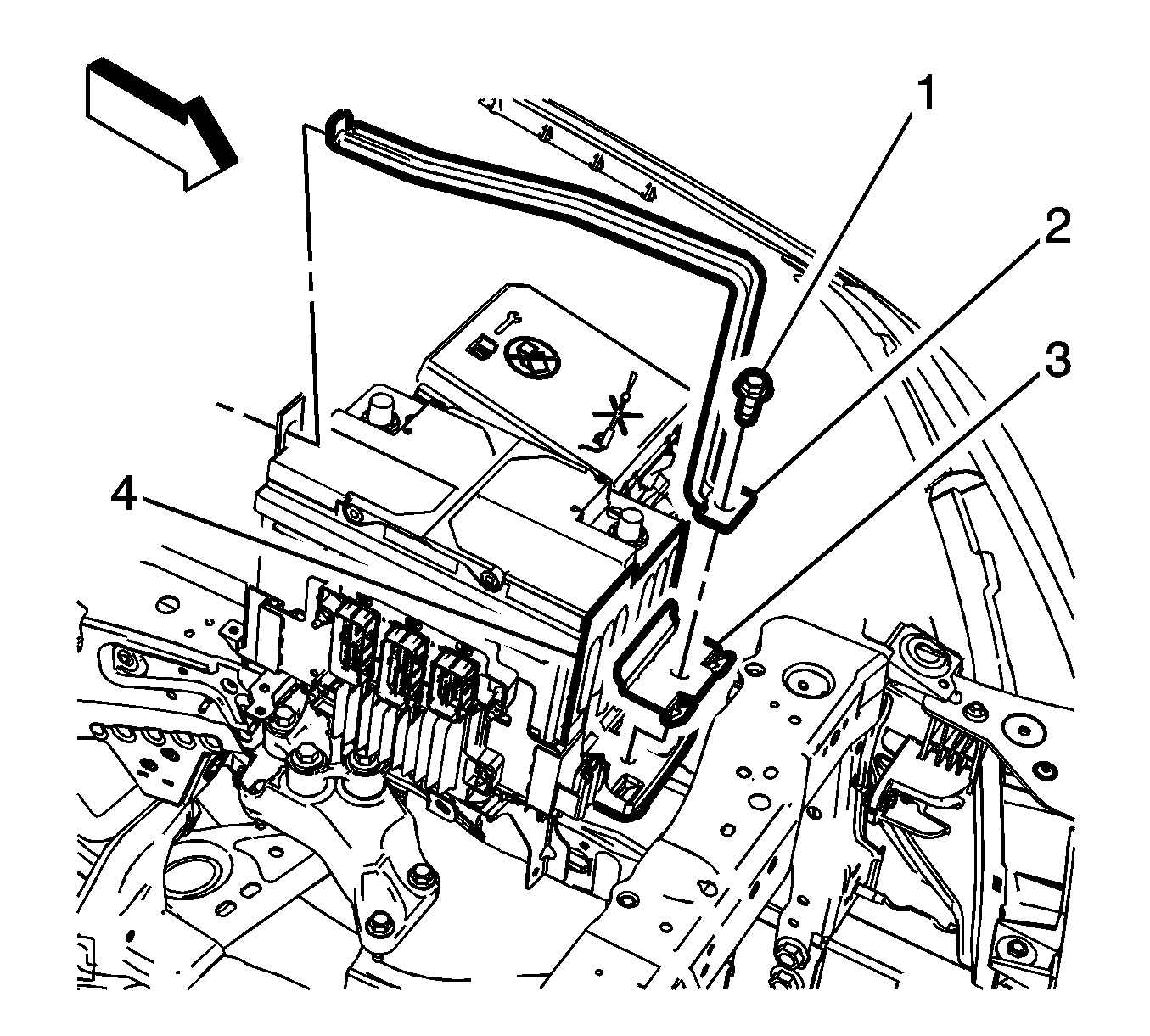

    2. Fig 2: Battery Hold Down Fastener And Battery Retainer Strap
    GM2776004Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the battery hold down strap (2) and tighten the fastener (1) to 22 N.m (16 lb ft).

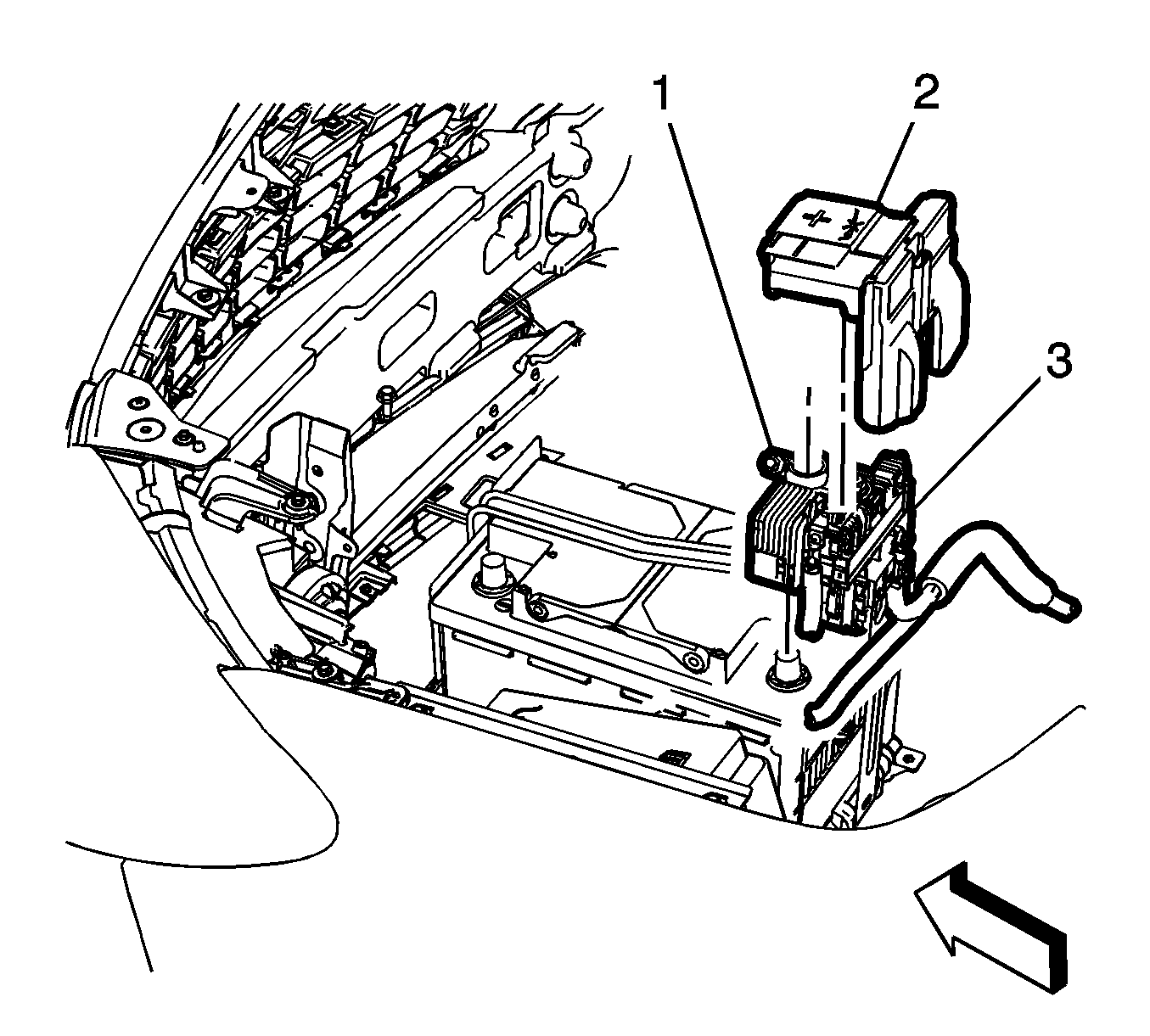

    3. Fig 3: Battery Fuse Block Cover
    GM2775999Courtesy of GENERAL MOTORS COMPANY
  3. Install the battery fuse block (3) to the battery positive post and tighten the fastener (1) to 5 N.m (44 lb in).
  4. Install the battery fuse block cover (2).
  5. Connect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
