Power, Ground, and Low Speed GMLAN (Trax)

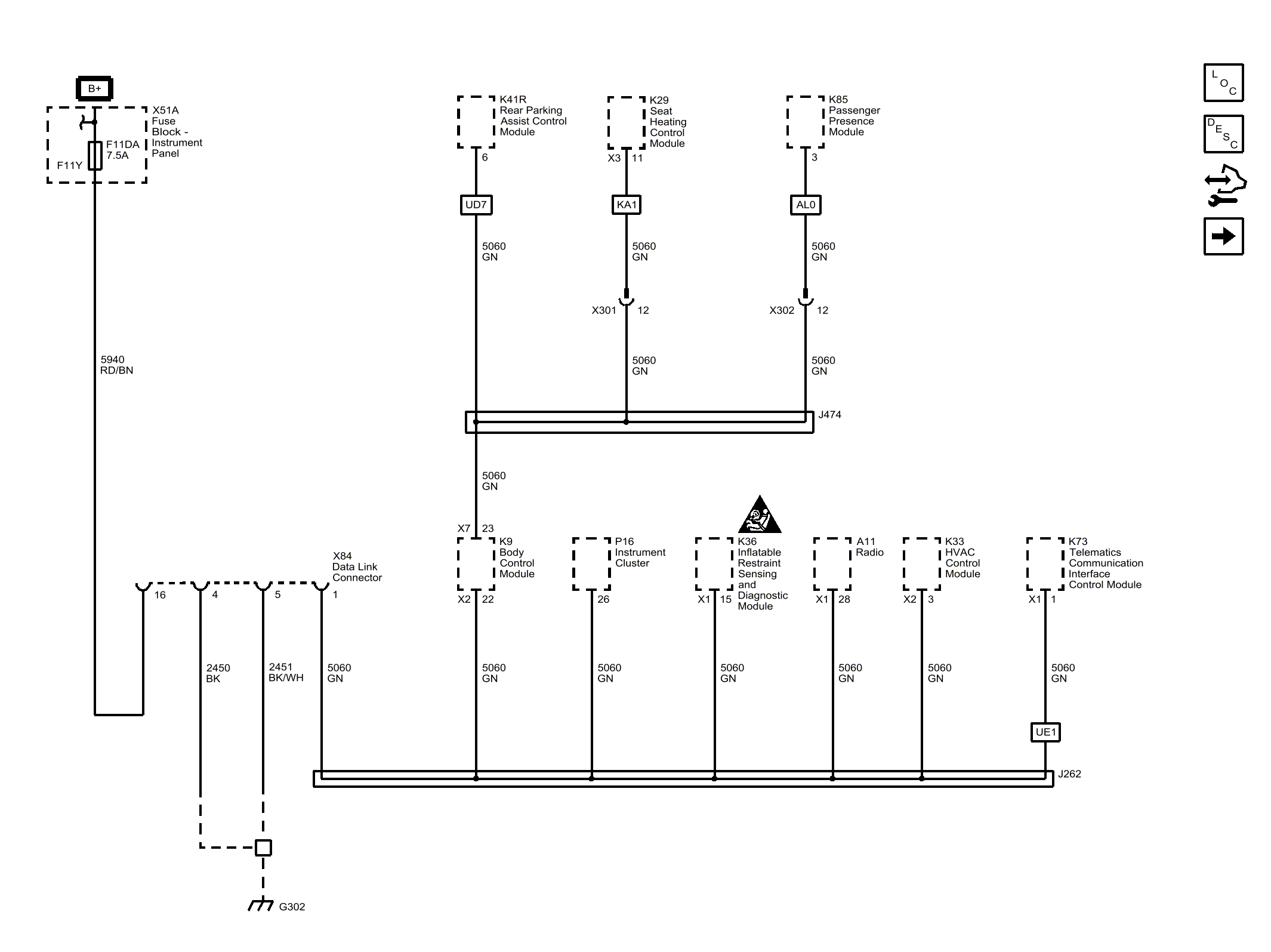

Fig 1: Power, Ground, and Low Speed GMLAN (Trax)
GM3689289Courtesy of GENERAL MOTORS COMPANY
