Auxiliary Audio Input (5JZ)

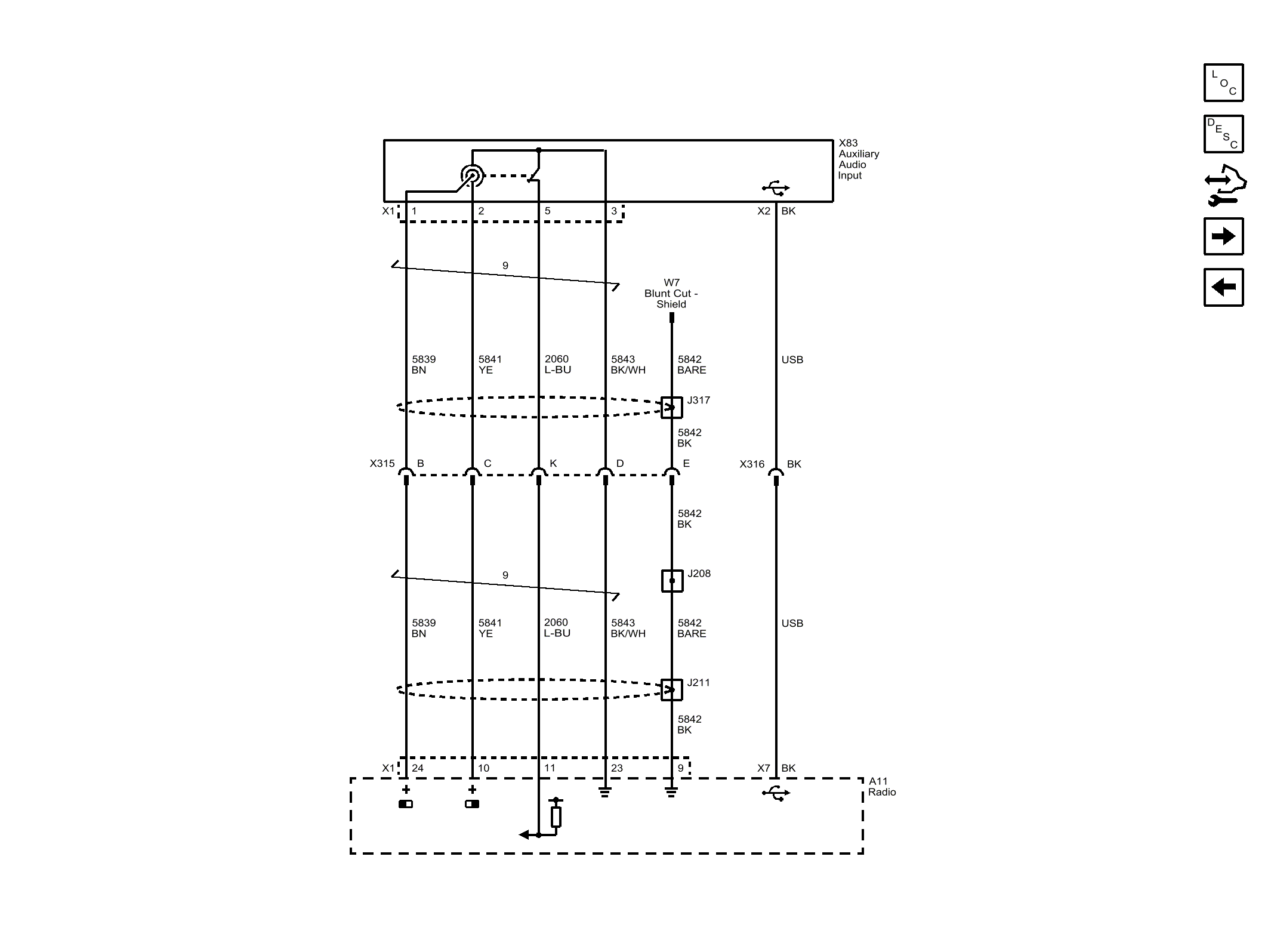

Fig 1: Auxiliary Audio Input (5JZ)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
