Digital Radio Receiver (U4D)

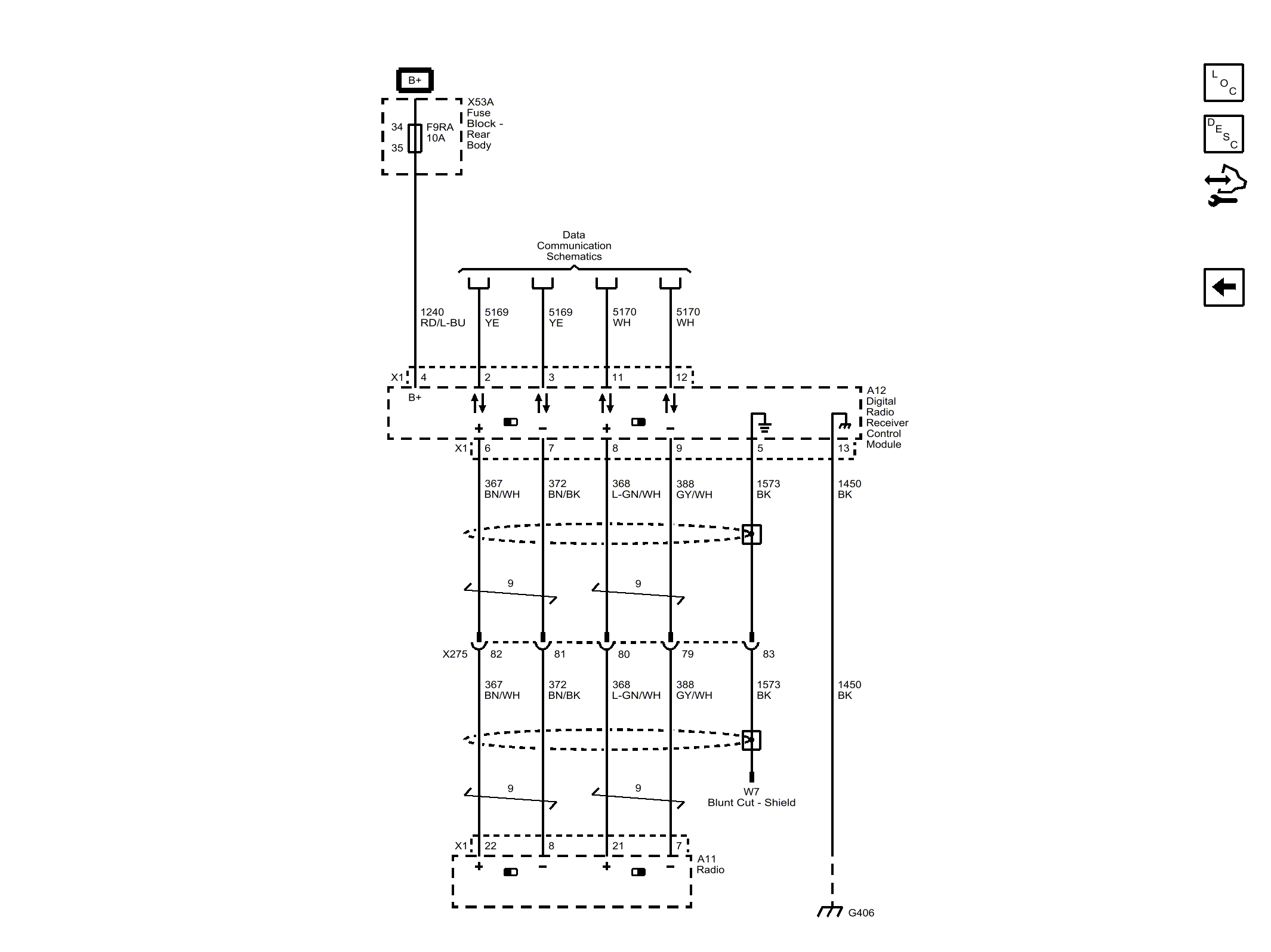

Fig 1: Digital Radio Receiver (U4D)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
