Installation Procedure

Install the fuse block (1) to the battery.

Fig 1: Identifying Fuse Block
Courtesy of GENERAL MOTORS COMPANY
Tighten the battery positive fuse block cable nut (1) Tighten 4 N.m (35 lb in).

Fig 2: Identifying Battery Positive Fuse Block Cable Nut
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Confirm that the 2 starter fuse nuts (1) are correctly torqued to 12 N.m (106 lb in).

Fig 3: Identifying Starter Fuse Nuts
Courtesy of GENERAL MOTORS COMPANY

IMPORTANT: This step is crucial to prevent damage to the fuse block or battery.

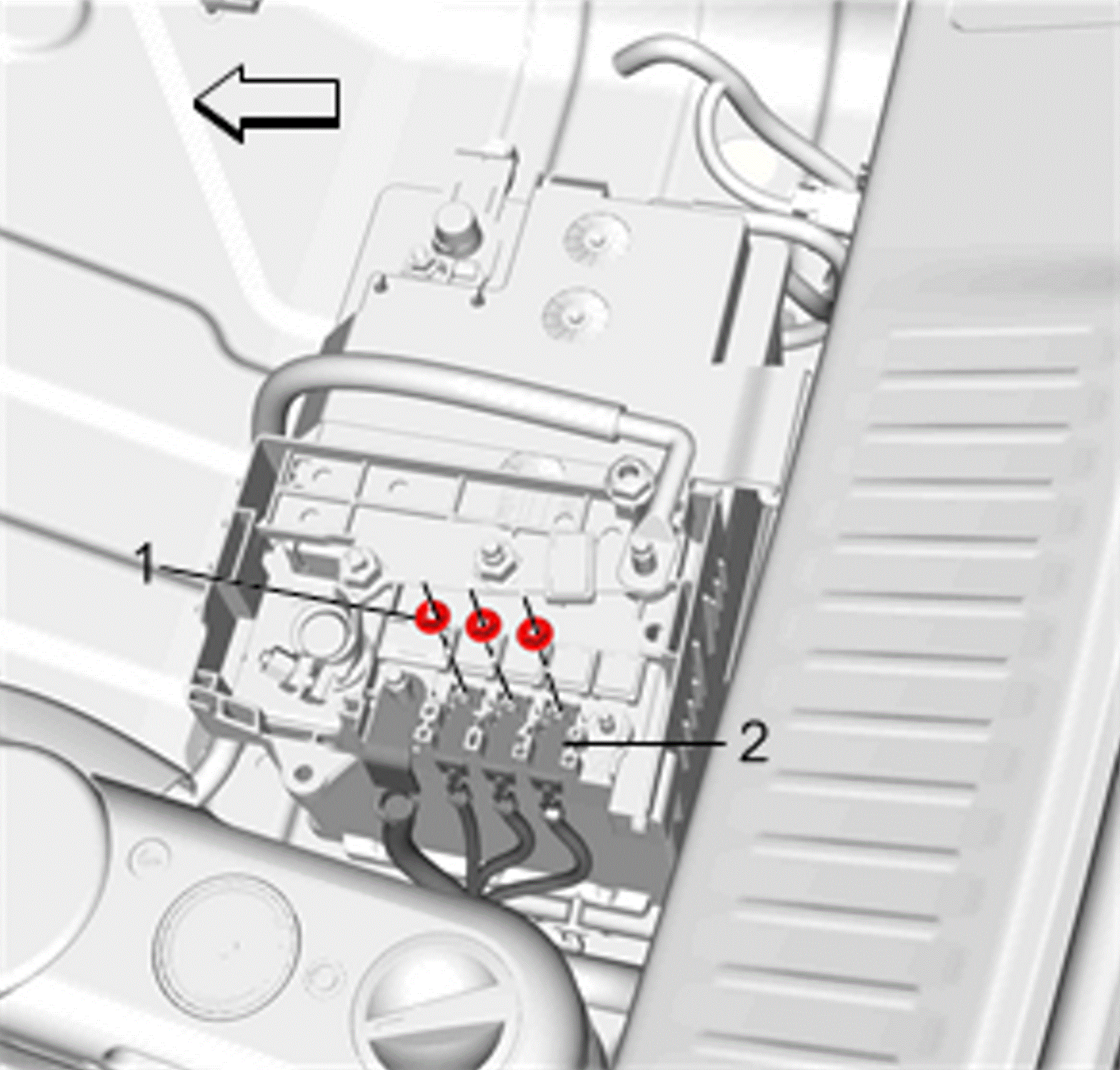

Install the 3 body harness terminal nuts (1). Tighten 4.7 N.m (42 lb in).

Fig 4: Identifying Body Harness Terminal Nuts
Courtesy of GENERAL MOTORS COMPANY

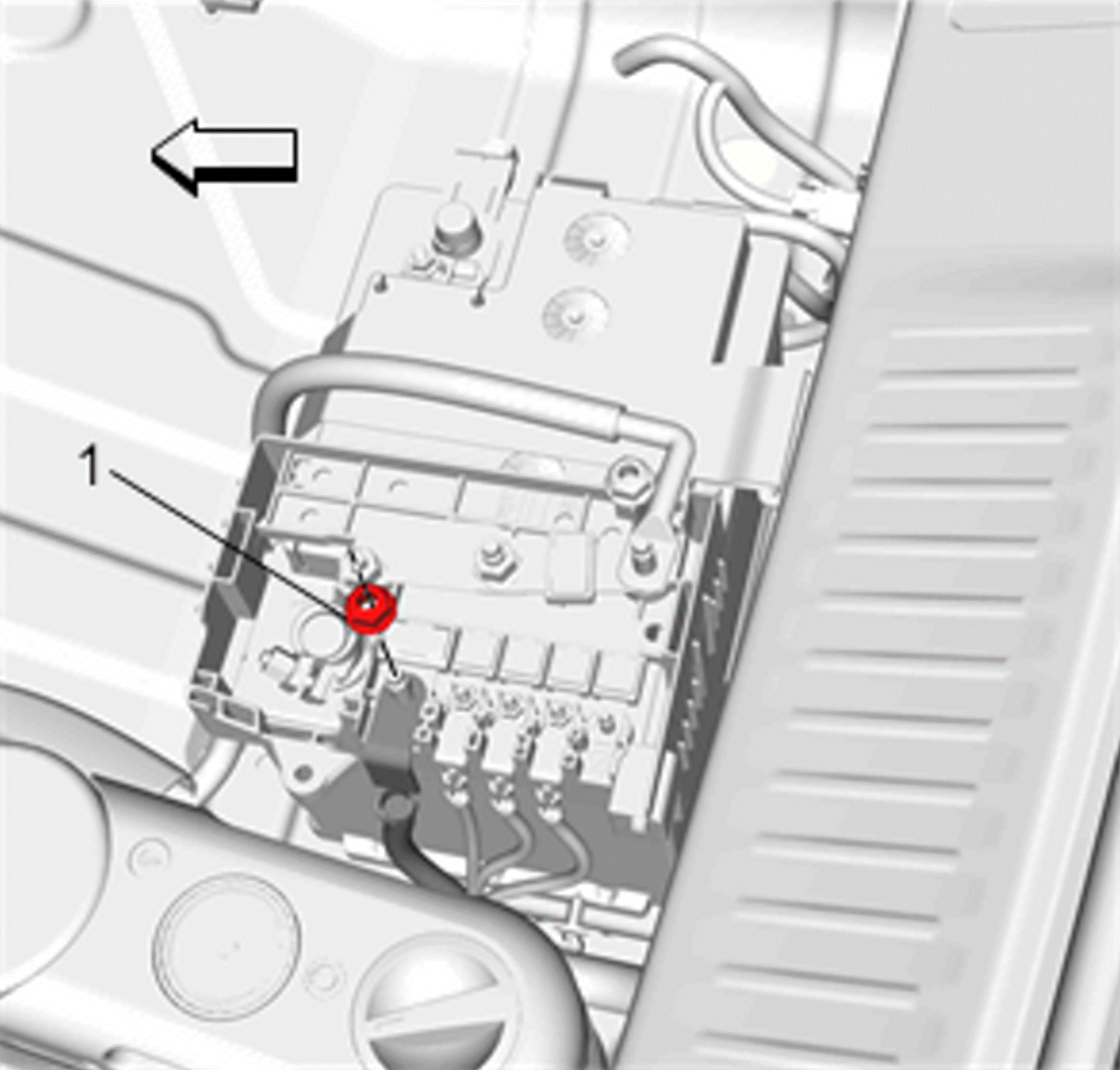

Install the body front wiring harness fuse block nut (1). Tighten 17 N.m (12 lb ft).

Fig 5: Identifying Body Front Wiring Harness Fuse Block Nut
Courtesy of GENERAL MOTORS COMPANY

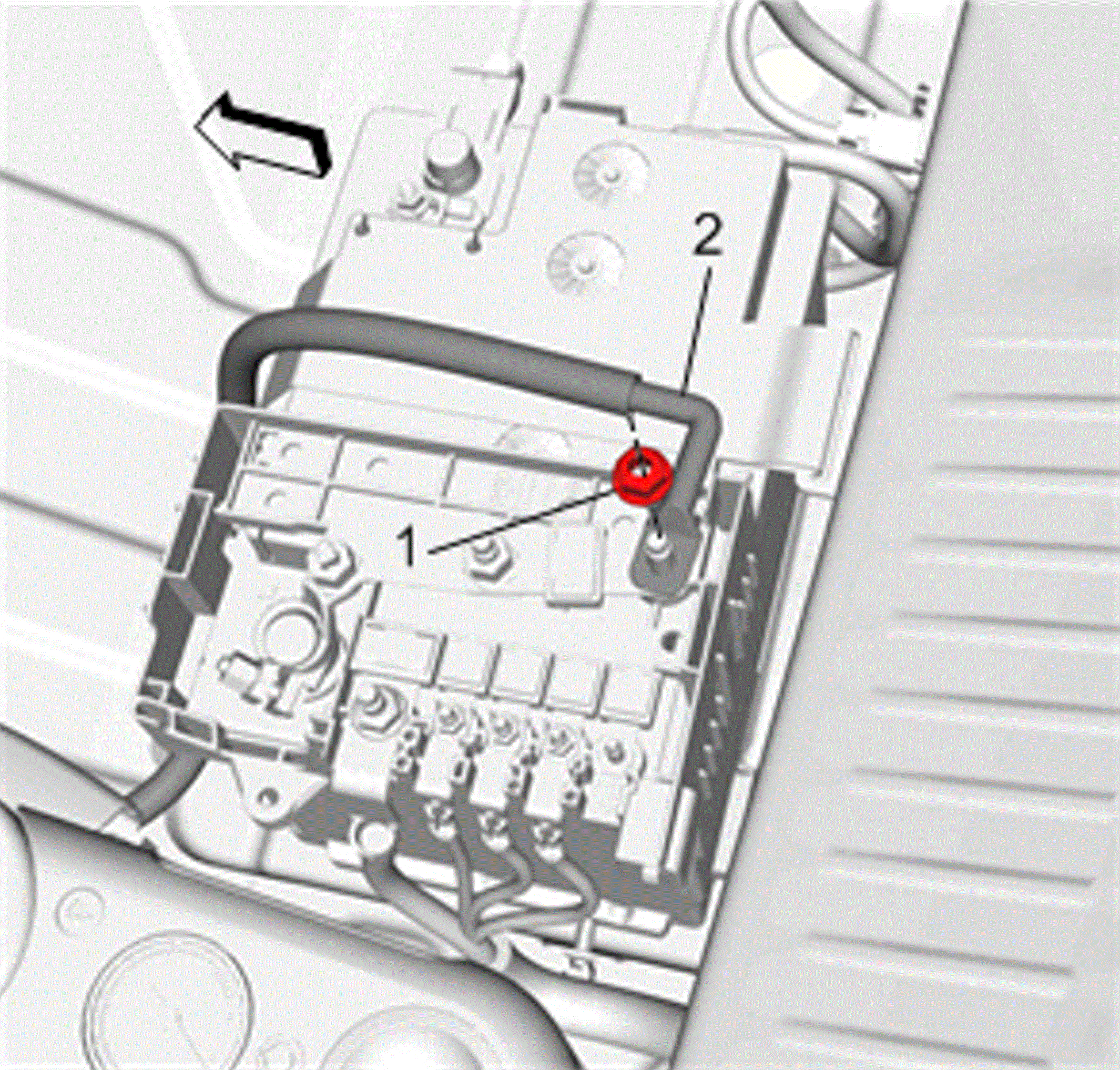

Install the APM positive cable (2) and APM positive cable nut (1) and Tighten 12 N.m (106 lb in).

Fig 6: Identifying APM Positive Cable And Nut
Courtesy of GENERAL MOTORS COMPANY
Install the fuse block cover.
Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Install the rear compartment floor stowage trim compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement
Enable the high voltage system. Refer to High Voltage Enabling
