Engine Compartment Components - Left

Items
1: M75 Windshield Wiper Motor M75 Windshield Wiper Motor
2: Q66 Passenger Compartment Heater Coolant Control Valve Q66 Passenger Compartment Heater Coolant Control Valve
3: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
4: X50B Fuse Block - Underhood Auxiliary X50B Fuse Block - Underhood Auxiliary X1 and X50B Fuse Block - Underhood Auxiliary X3 X3
5: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 X1 , X50A Fuse Block - Underhood X2 X2 , X50A Fuse Block - Underhood X3 X3 and X50A Fuse Block - Underhood X4 X4
6: F103 Power Inverter Module Assembly Cable Cover F103 Drive Motor Power Inverter Module Cable Cover
7: T6 Power Inverter Module T6 Power Inverter Module X1 X1 , T6 Power Inverter Module X2 X2 , T6 Power Inverter Module X3 X3 , T6 Power Inverter Module X4 X4 , T6 Power Inverter Module X5 X5 , T6 Power Inverter Module X6 X6 , T6 Power Inverter Module X7 X7 and T6 Power Inverter Module X8 X8
8: K17 Electronic Brake Control Module K17 Electronic Brake Control Module

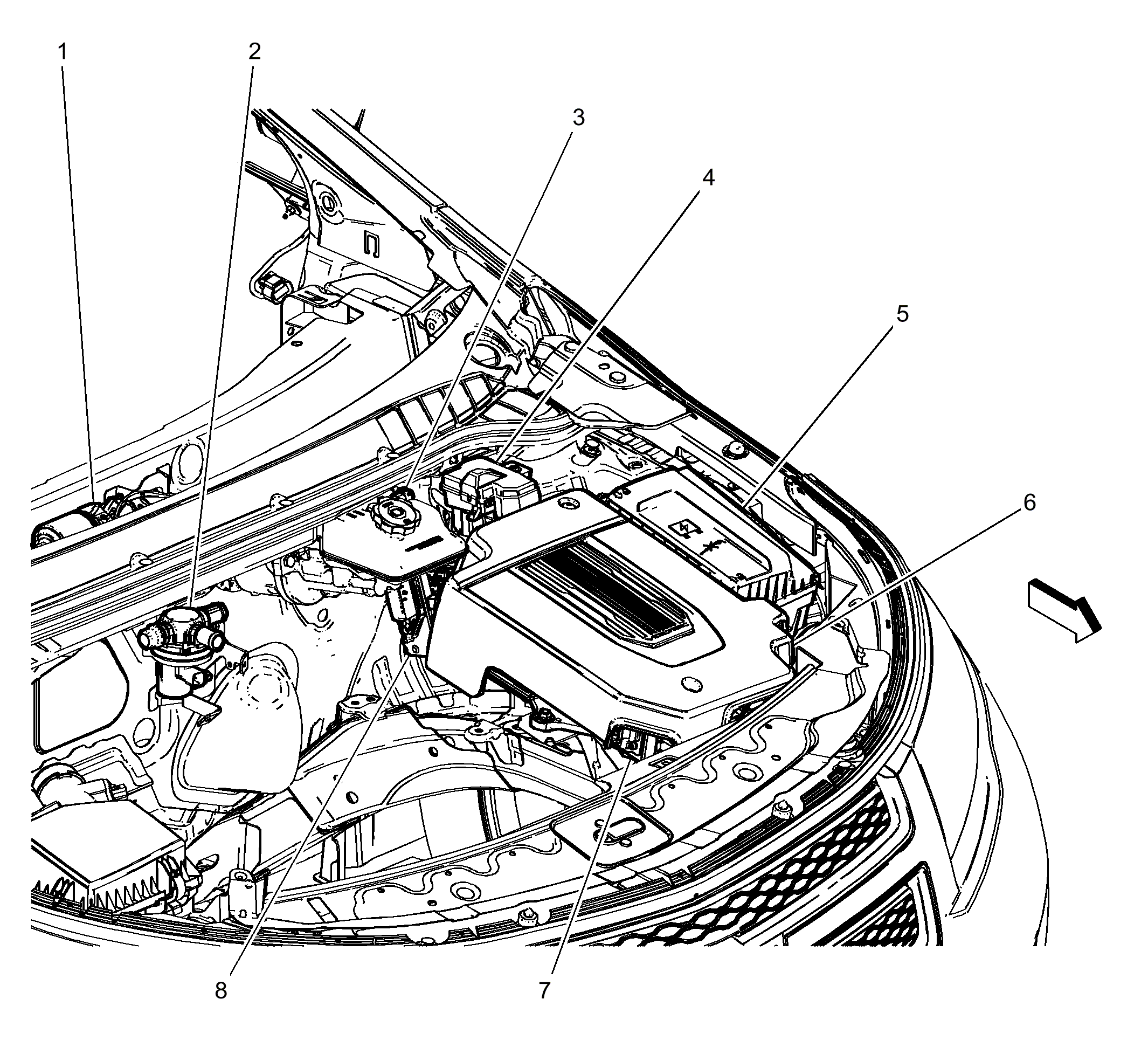

Fig 1: Engine Compartment Components - Left

Courtesy of GENERAL MOTORS COMPANY
