Installation Procedure

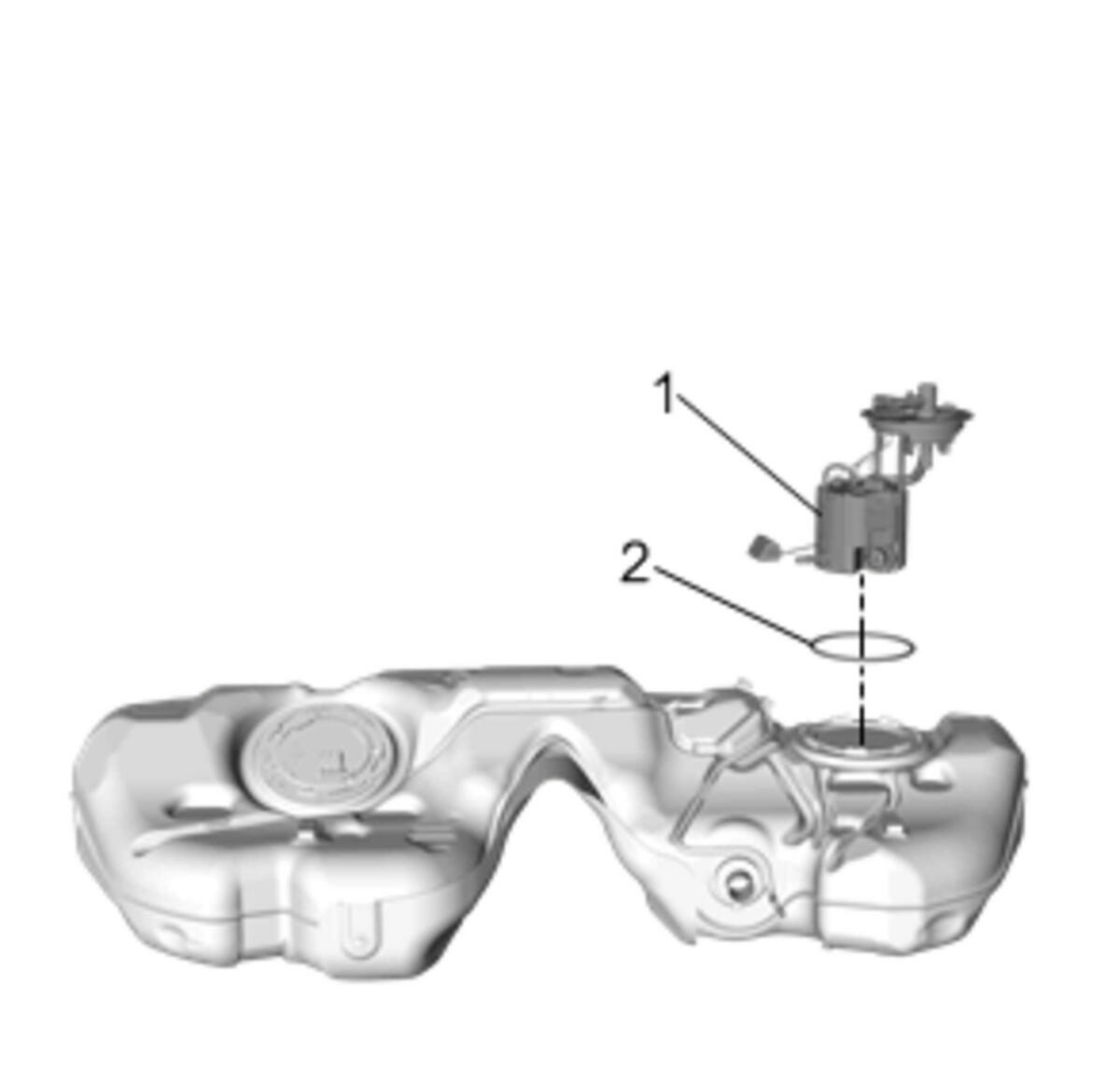

    Fig 1: Fuel Tank Fuel Pump Module
    GM4179562Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW Fuel Pump Seal (2)
  2. Install Fuel Tank Fuel Pump Module (1)

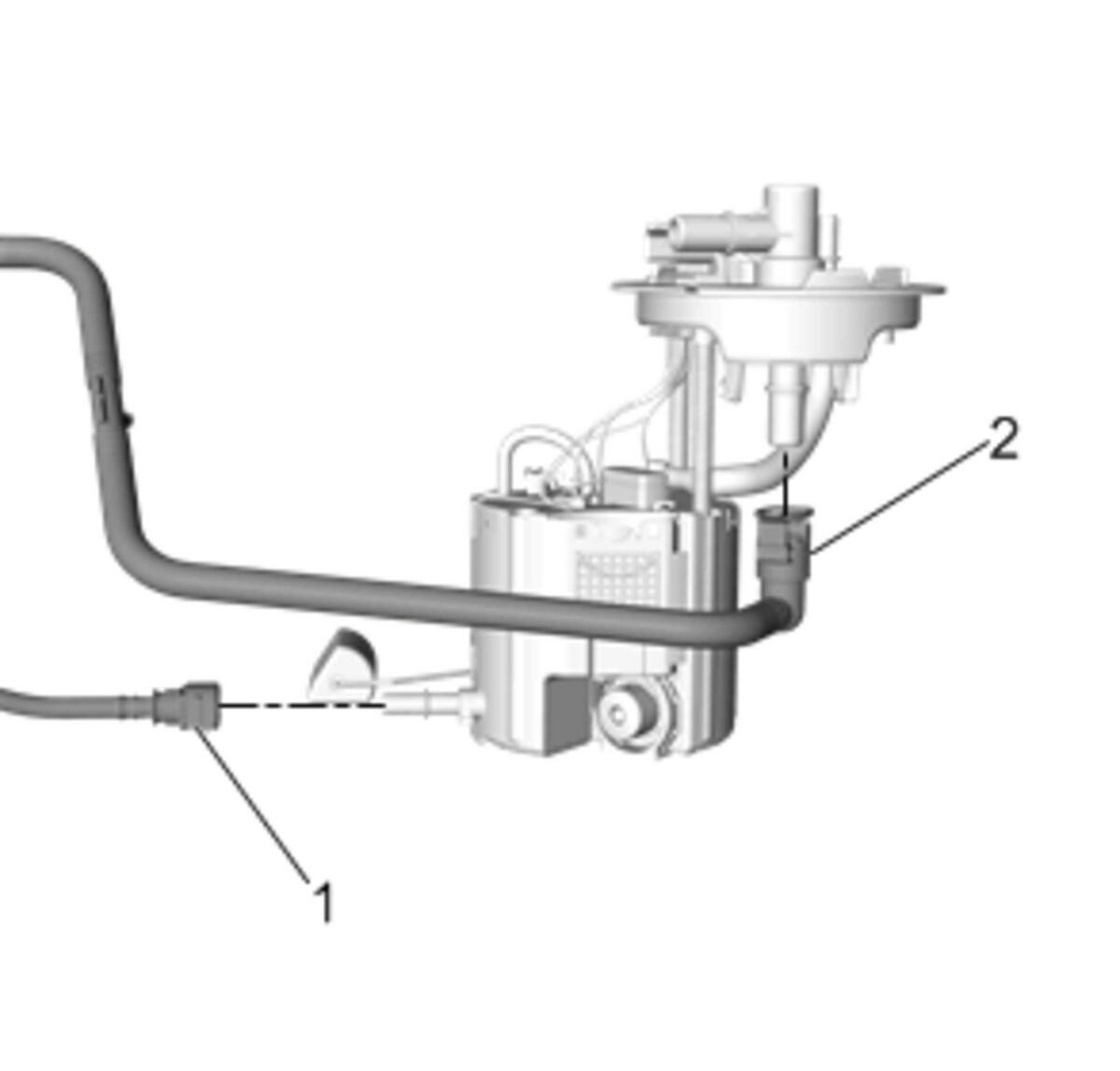

    3. Fig 2: Transfer Hose
    GM4179561Courtesy of GENERAL MOTORS COMPANY
  3. Connect Fuel Tank Vent Hose (2) - Plastic Collar Quick Connect Fitting Service
  4. Connect Transfer Hose (1) - Plastic Collar Quick Connect Fitting Service

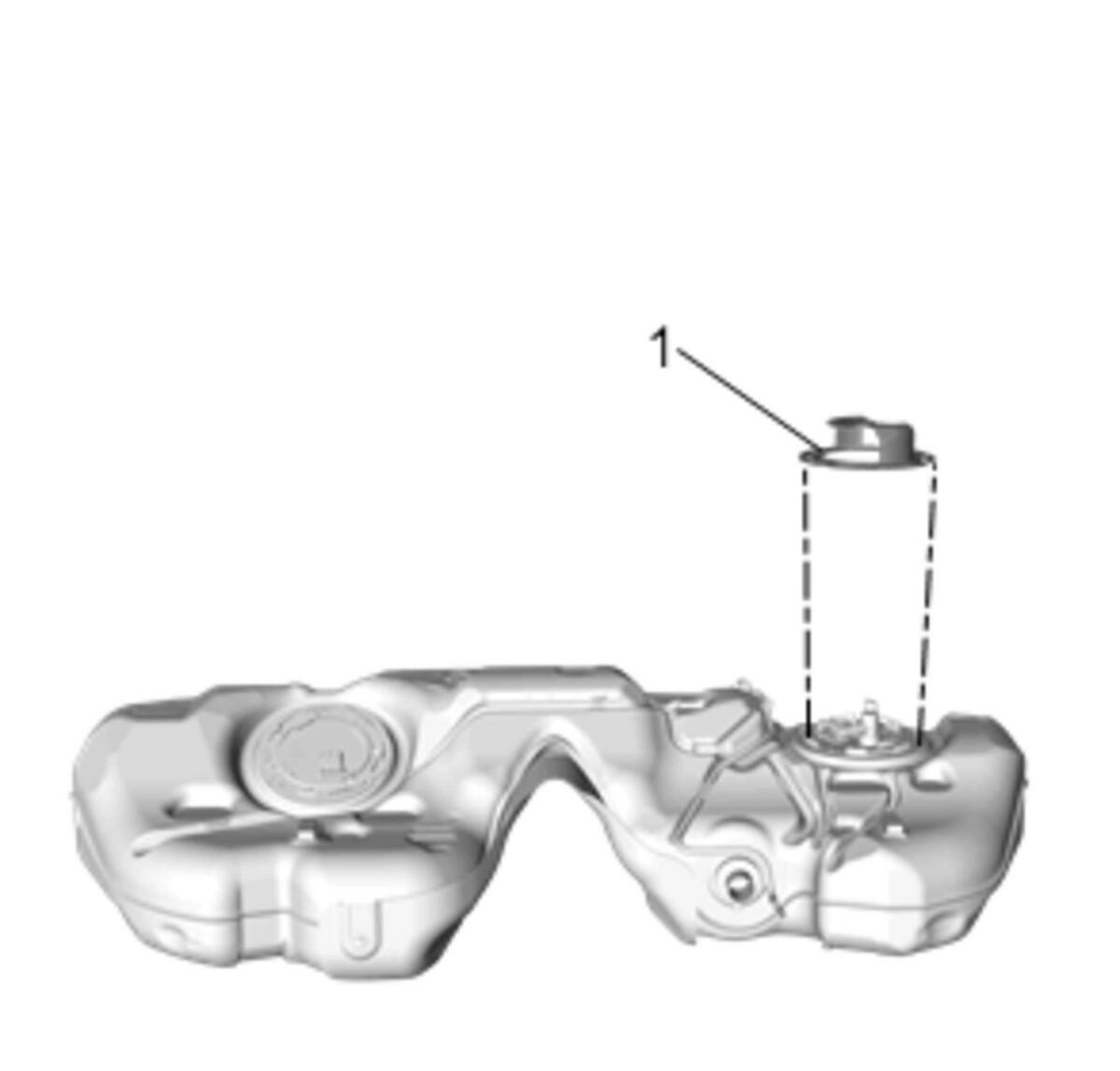

    5. Fig 3: Lock Ring
    GM4179557Courtesy of GENERAL MOTORS COMPANY
  5. Use the CH 45722  wrench by turning clockwise and install the lock ring (1)
  6. Install Fuel Pump Fuel Feed Hose Replacement
  7. Install Fuel Tank Vent Valve Hose Replacement (At Tank) Fuel Tank Vent Valve Hose Replacement (Fuel Tank Fuel Pump Module)  at Fuel Tank Fuel Pump Module.
  8. Connect the electrical connector.
  9. Install Fuel Tank Replacement
