K9 Body Control Module X2

WARNING: This page is about a different car, the 2015 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

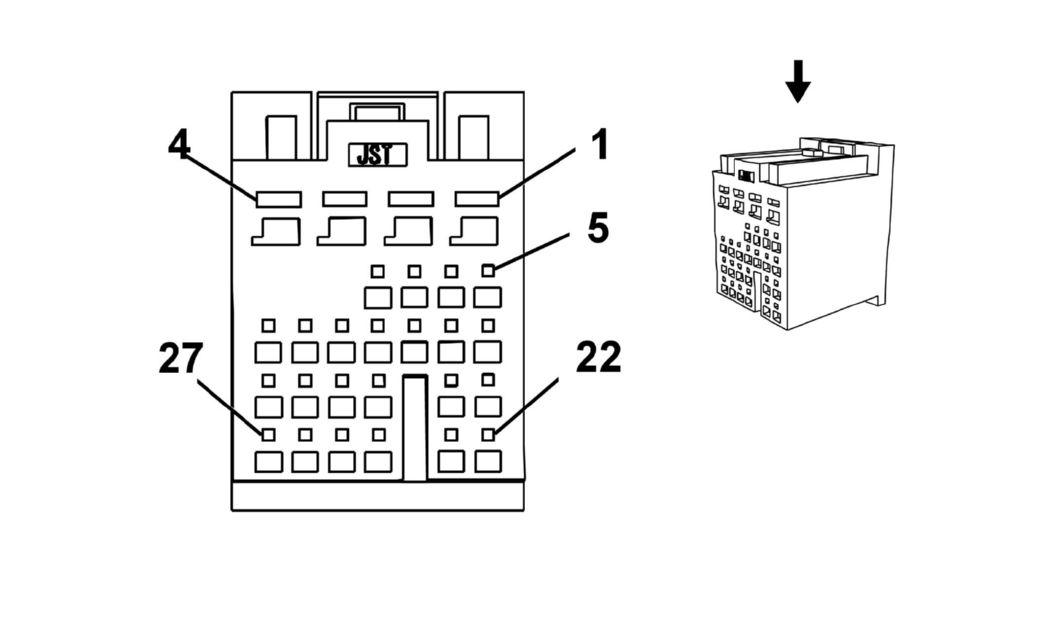

Connector Part Information

Harness Type: Instrument Panel
OEM Connector: 13594133
Service Connector: 19151266
Description: 27-Way F 0.64 2.8 Series (L-BU)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13575789	J-35616-35 (VT)	J-38125-12A	SNAC-A081T-M2.8	Delphi 20	A	D
II	13575870	J-35616-64B (LT BU)	J-38125-12A	SNAC3-A021T-M0.64	Delphi 20	J	J
III	13575871	J-35616-35 (VT)	J-38125-12A	SNAC-A061T-M2.8	Delphi 20	E	A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.8	RD/WH	2140	Battery Positive Voltage	III	-
2	0.8	BK	1650	Ground	III	-
3	-	-	-	Not Occupied	-	-
4	3	RD/WH	4040	Battery Positive Voltage	I	-
5 - 6	-	-	-	Not Occupied	-	-
7	0.35 0.35	YE YE/WH	5361 5361	Brake Apply Sensor Signal	II	- -
8	0.5	YE	6817	LED Backlight Dimming Control	II	-
9	-	-	-	Not Occupied	-	-
10	0.35	WH	278	Ambient Light Sensor Signal	II	-
11 - 12	-	-	-	Not Occupied	-	-
13	0.35 0.35	WH PK	5359 5359	Brake Apply Sensor Control	II	- -
14	0.35	L-BU	1788	Traction Control Switch Signal (1)	II	-
15	0.35	OG/BK	781	Driver Door Lock Switch Unlock Signal	II	-
16	0.35	GY	3273	Remote Function Actuator Low Reference	II	-
17 - 18	-	-	-	Not Occupied	-	-
19	0.35	PK/BK	780	Driver Door Lock Switch Lock Signal	II	-
20	-	-	-	Not Occupied	-	-
21	0.35	GY	6135	Local Interconnect Network Serial Data Bus 4	II	-
22	0.35	D-GN	5060	Low Speed GMLAN Serial Data	II	-
23	0.35	TN	2501	High Speed GMLAN Serial Data (-) (1)	II	-
24	0.35	TN/BK	2500	High Speed GMLAN Serial Data (+) (1)	II	-
25	0.35	PK/WH	3272	Remote Function Actuator Control	II	-
26	0.35	WH	111	Hazard Switch Signal	II	-
27	0.35	L-BU/WH	3275	Remote Function Actuator Receive Signal	II	-
